Power Mirror Motor: Testing and Inspection

MIRROR ACTUATOR
1. Disconnect the connector from the mirror.

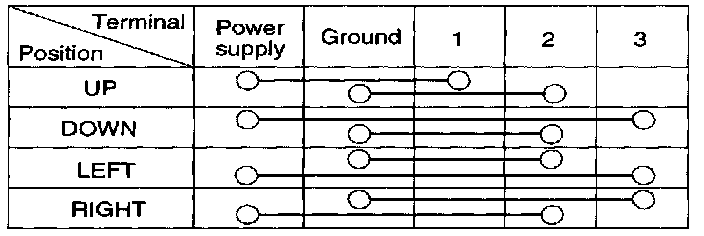

2. Check that the actuator operates correctly as in table.
