System Specifications

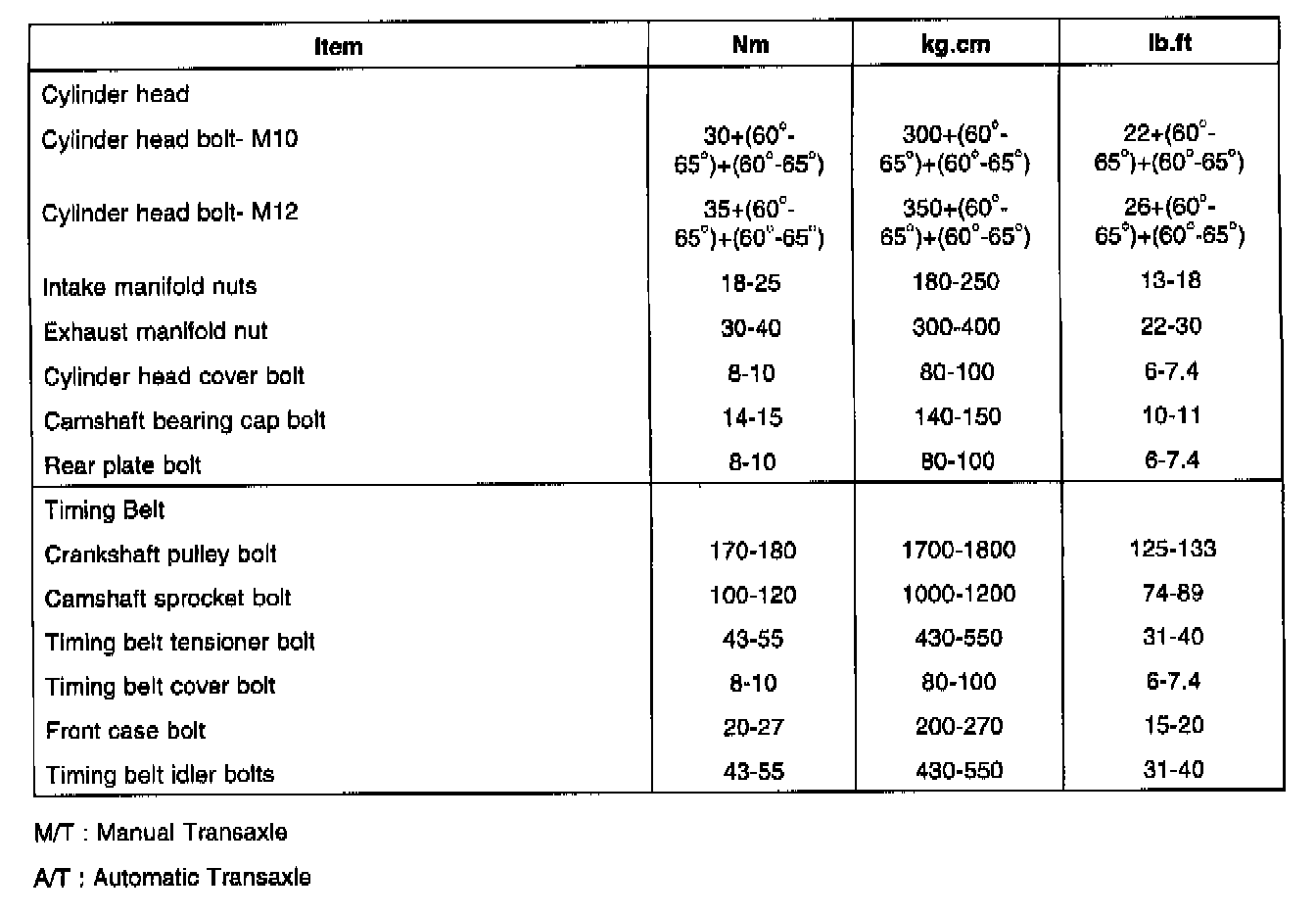

Tightening Sequence:

10 mm CYLINDER HEAD BOLT;
a. Tighten in sequence to 30 Nm (300 kg. cm, 22 ft. lbs.).
b. Turn in sequence 60°- 65°.
c. Turn in sequence an additional 60°- 65°.
12 mm CYLINDER HEAD BOLT;
a. Tighten in sequence to 35 Nm (350 kg. cm, 26 ft. lbs.).
b. Turn in sequence 60°- 65°
c. Turn in sequence an additional 60°- 65°.











Camshaft Bearing Cap Bolt Tightening sequence

Camshaft Bearing Cap Bolt 14-15 Nm (140-140 kg. cm, 10-11 ft. lbs.)
Camshaft Sprocket Bolt 100-120 Nm (1000-1200 kg. cm, 74-89 ft. lbs.)
Crankshaft Pulley Bolt 170-180 Nm (1700-1800 kg. cm, 125-133 ft. lbs.)
Cylinder Head Cover Bolt 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Front Case Bolt 20-27 Nm (200-270 kg. cm, 15-20 ft. lbs.)
Rear Plate Bolt 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Timing Belt Tensioner Bolt 43-55 Nm (430-550 kg. cm, 31-40 ft. lbs.)
Timing Belt Cover Bolt 8-10 Nm (80-100 kg. cm, 6-7.4 ft. lbs.)
Timing Belt Idler Bolts 43-55 Nm (430-550 kg. cm, 31-40 ft. lbs.)
