Ignition Cable: Service and Repair

INSTALLATION OF SPARK PLUG CABLE
Improper arrangement of spark plug cables will induce voltage between the cables, causing miss firing and developing a surging at acceleration in high-speed operation.

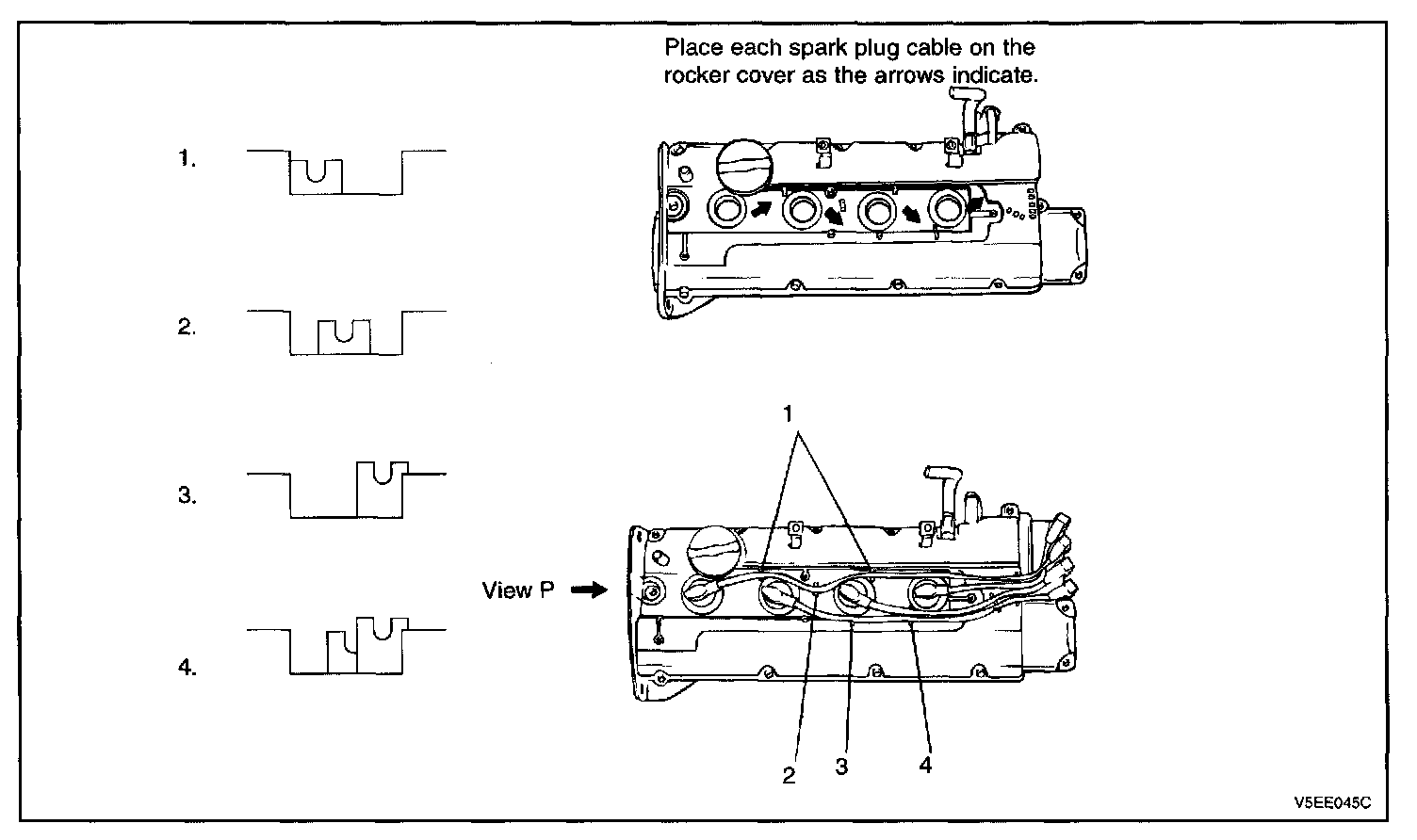

Ignition Cable Routing:

Therefore, be careful to arrange the spark plug cables properly as shown in the illustration.
