Brake Lamp: Service and Repair

HIGH MOUNTED STOP LAMP




1. Disconnect the battery negative terminal.

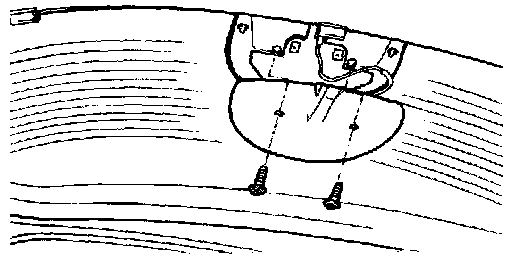

2. Using a (-) driver, detach 2 blanking covers on both sides of the lamp.
3. Remove the mounting screws (2EA).

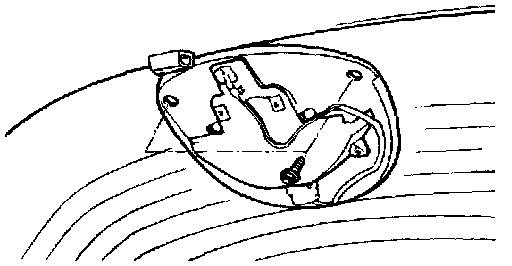

4. Disconnect the connector and remove the lamp assembly.
5. Installation is the reverse order of removal procedure.
