System Relay: Testing and Inspection

AIR CONDITIONING RELAY




1. Remove the battery ground cable.

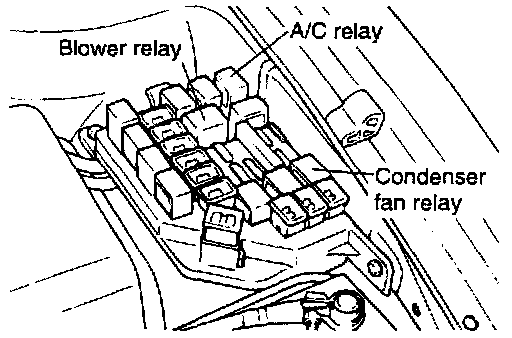

2. Remove the cover of relay box located in engine compartment.
3. Remove the relays from relay box.
4. Check for continuity or voltage between the terminals.

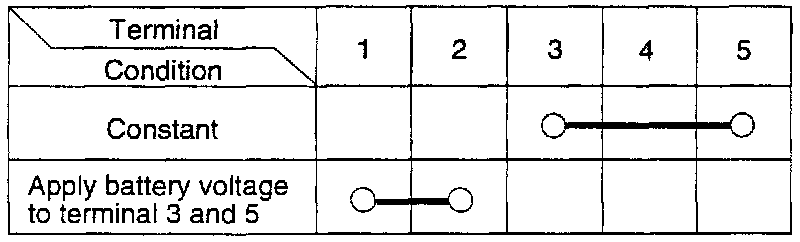

AIR CONDITIONING RELAY-check for continuity
If continuity is not as specified, replace the relay.
