Condenser Fan: Service and Repair

REMOVAL AND INSTALLATION

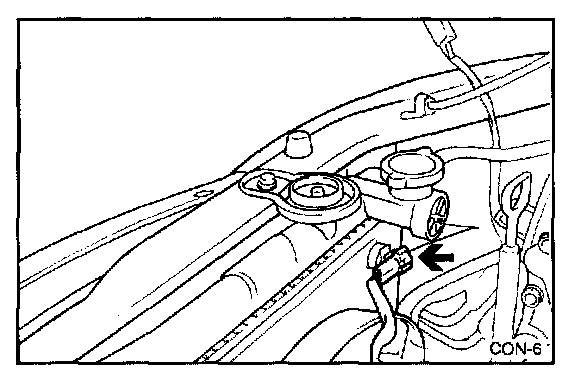

1. Disconnect the connector of the condenser fan.




2. Remove mounting screws.

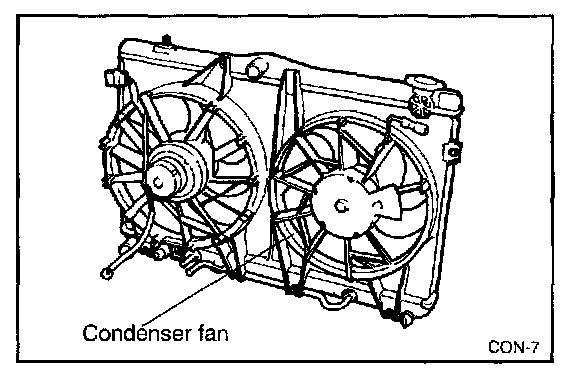

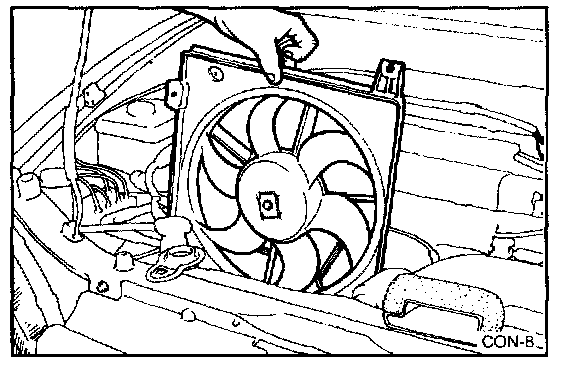

3. Remove the condenser fan assembly.
4. Installation is the reverse order of removal.
