Clutch Switch: Testing and Inspection

INSPECTION

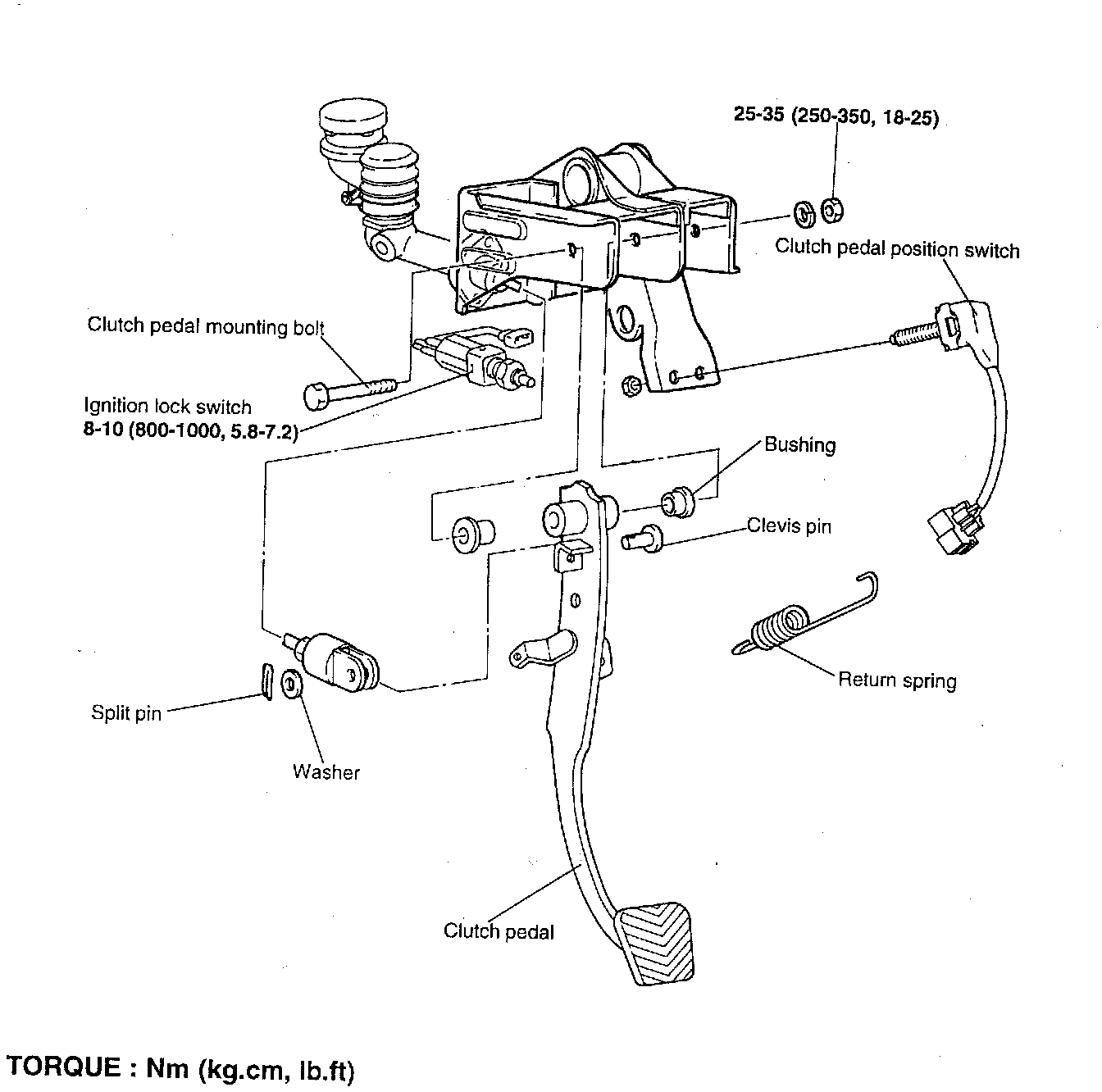

Remove the ignition lock switch and check continuity between the terminals. If the continuity is not as specified, replace the switch.

CHECK CLUTCH PEDAL





Check that pedal height, pedal freeplay and clutch pedal clevis pin play are correct.
