Transmission

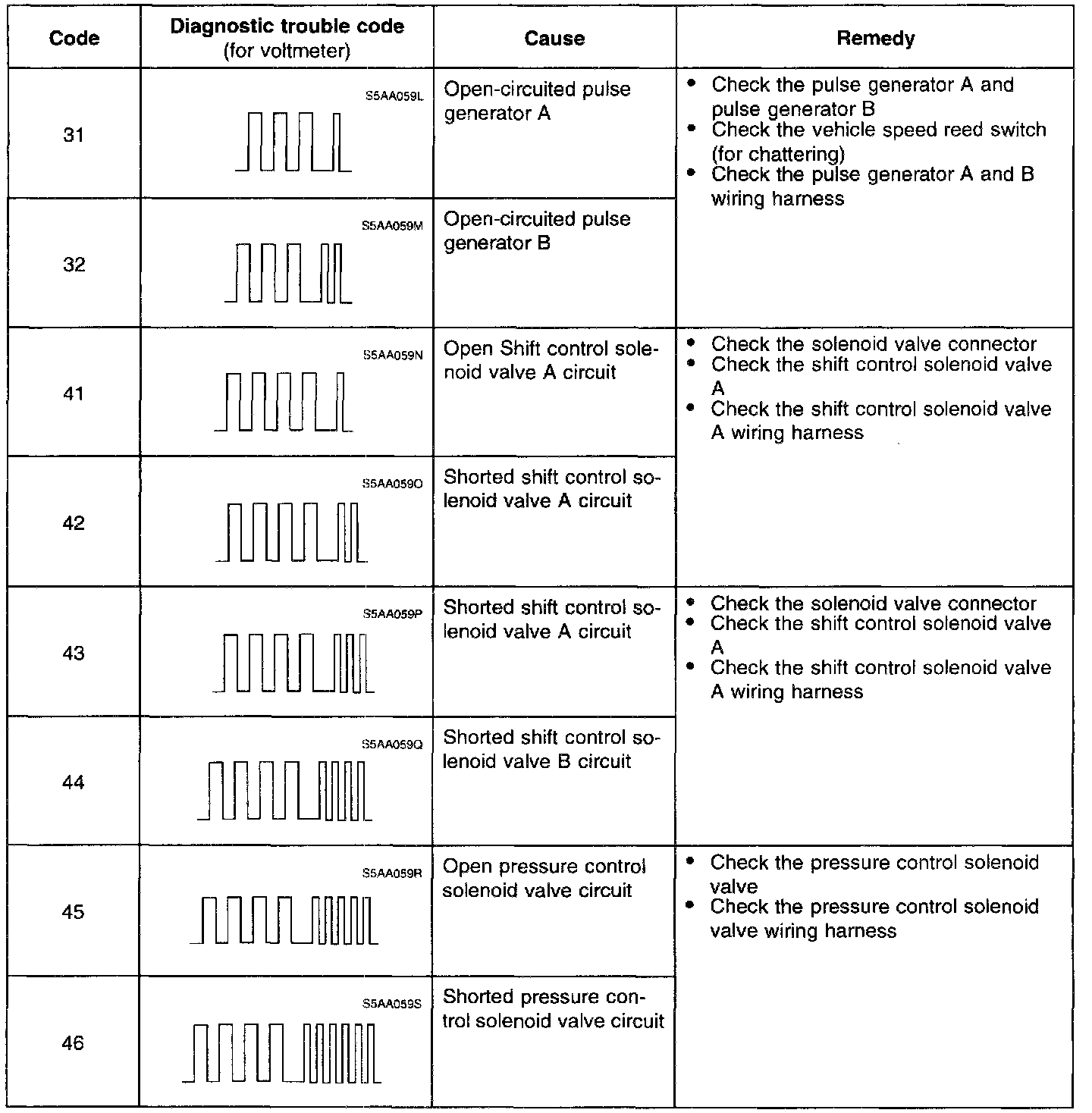

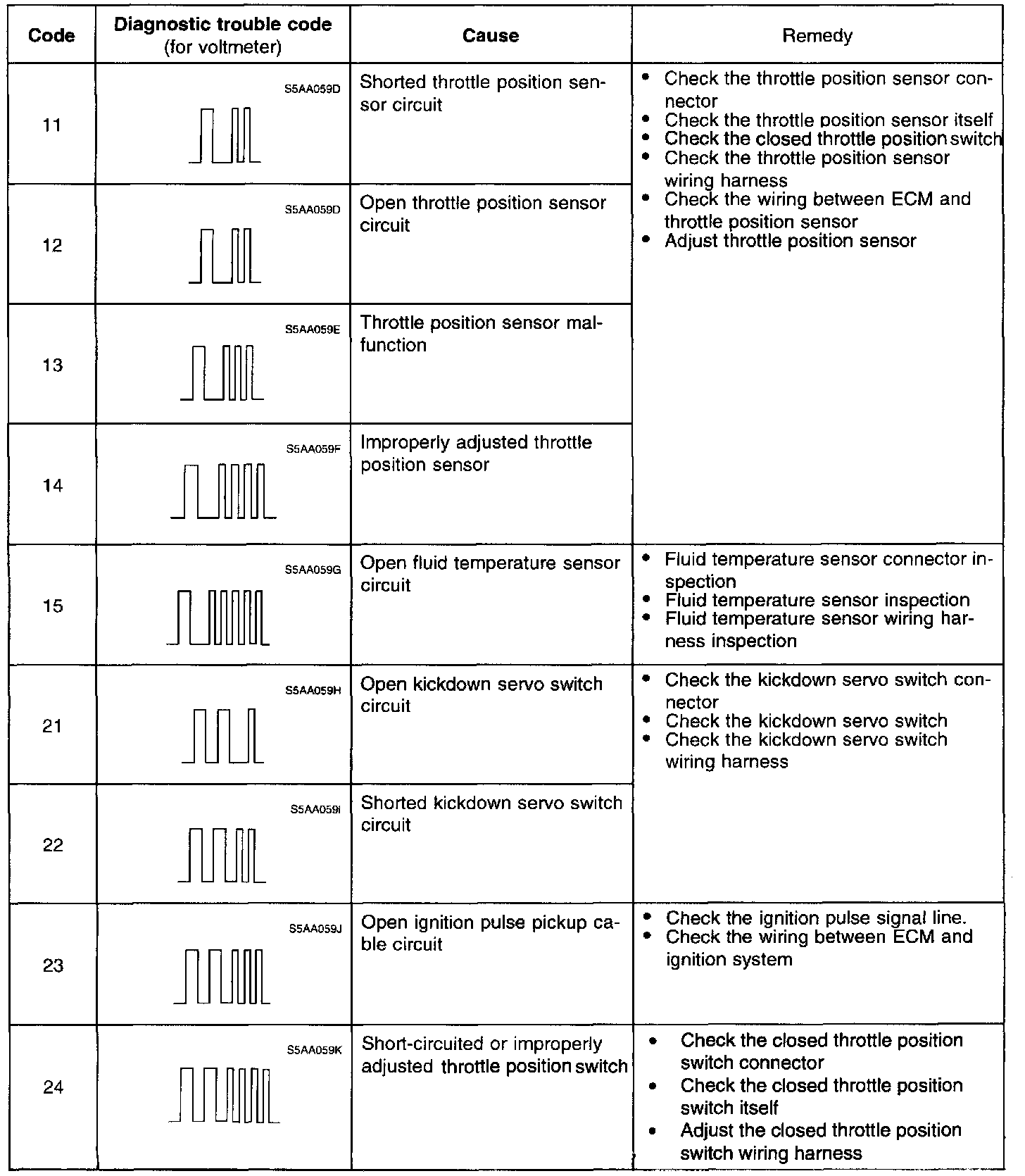

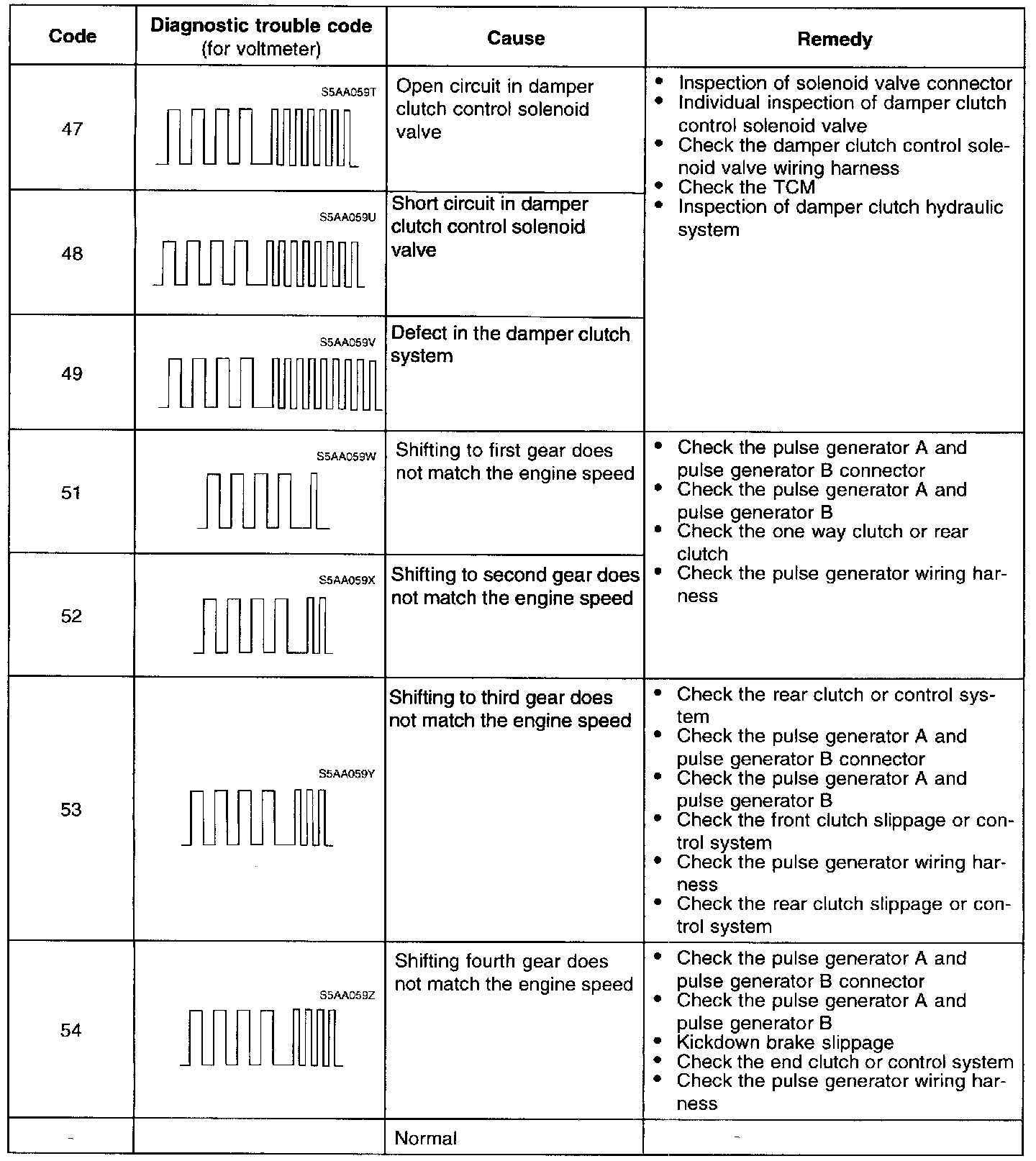

DIAGNOSTIC TROUBLE CODE DESCRIPTIONS

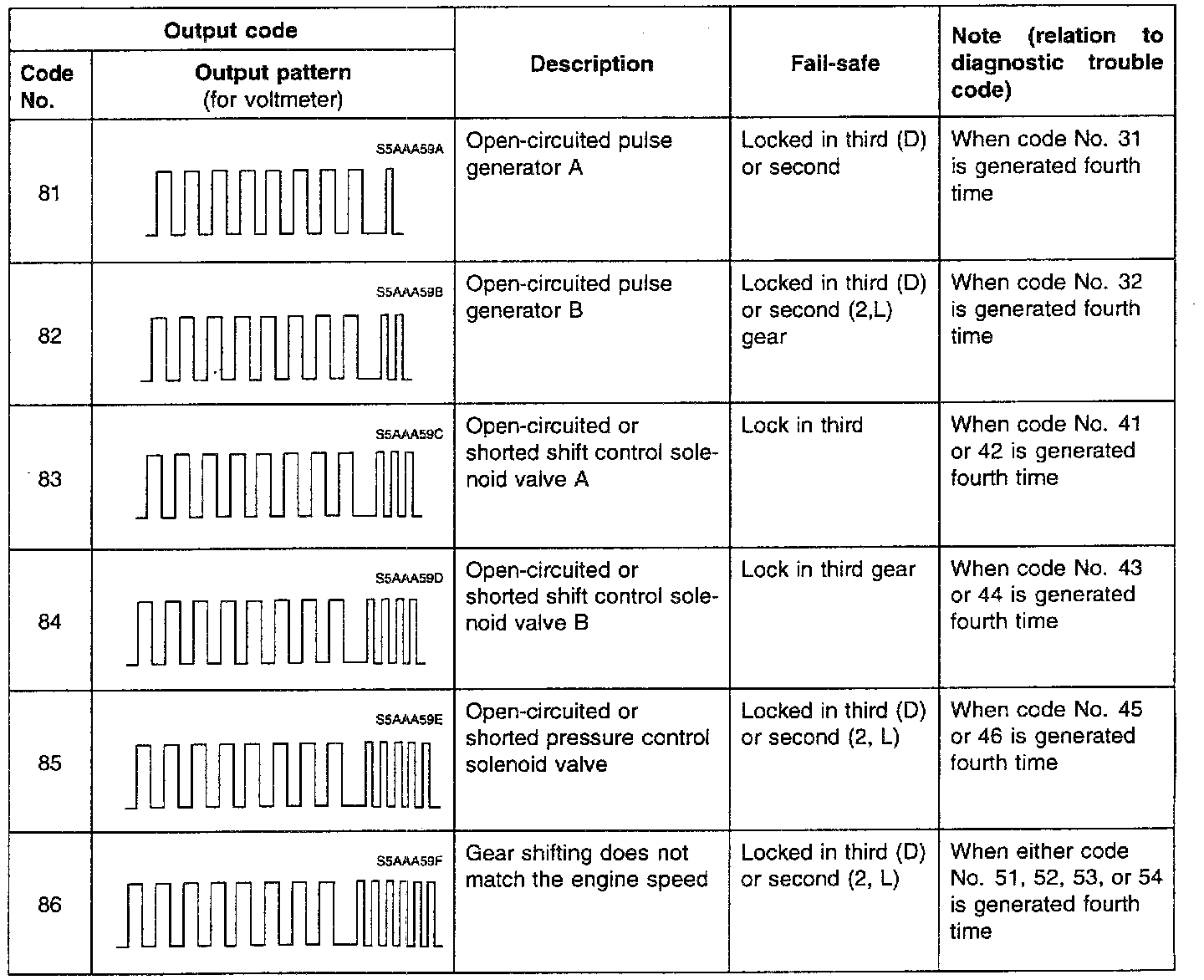

FAIL-SAFE ITEM

NOTE: Hyundai Motor Company does not provide DTC specific flow charts for all DTCs. See the trouble code description list for a remedy or probable cause. In this instance, you may refer to specific component testing to determine the fault. See: Component Tests and General Diagnostics

In addition, refer to TSBs for updated diagnostics.
