Removal

COMPONENTS

REMOVAL

CAUTION:
(1) Phillips-head screws are installed tightly. Use a screwdriver that fits the slots for loosening them.
(2) The throttle valve must not be removed.

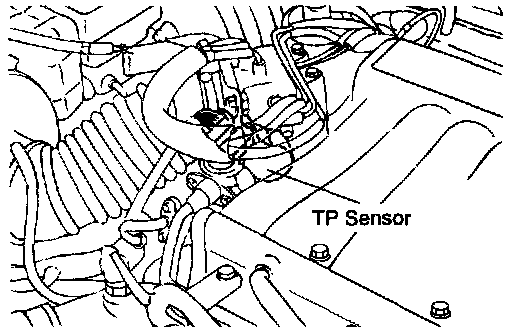

1. Remove the throttle position sensor by unscrewing the Phillips-head screws.

NOTE: Except when necessary for replacement, the throttle position sensor must not be removed.

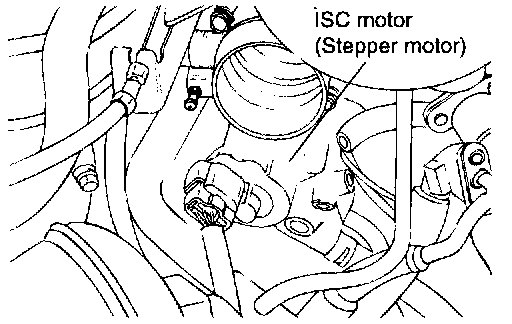

2. Remove the ISC motor assembly (STEPPER MOTOR).

NOTE:
(1) Except when necessary for replacement, the ISC motor assembly should not be removed.
(2) The ISC motor assembly should not be disassembled.
