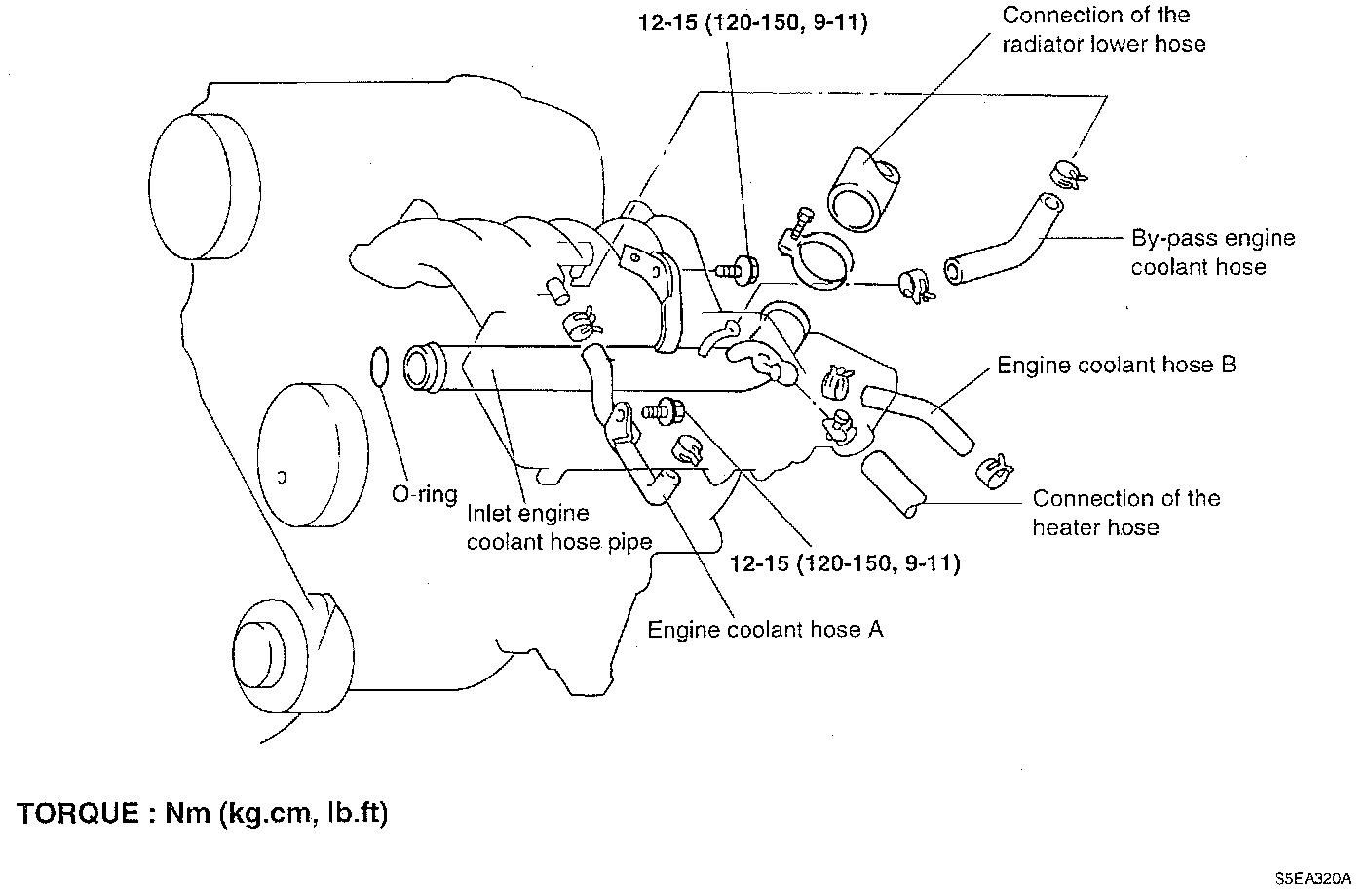

Coolant Pipe

REMOVAL
1. Drain cooling system.
2. Loosen hose clamps, then remove coolant hoses from coolant pipe.
3. Remove coolant pipe mounting bolts, then pull coolant pipe from water pump. Discard O-ring.

INSTALLATION
1. Ensure that all corrosion has been remove from sealing surfaces.





Fit O-ring in the groove provided at engine coolant inlet pipe end.
Wet the periphery of the O-ring and inlet engine coolant inlet pipe with suitable coolant.

NOTE:
- Do not apply oils or greases to engine coolant pipe O-ring.
- Keep the engine coolant pipe connections free of sand, dust, etc..
- Insert engine coolant pipe until its end bottoms.
