Valve Spring: Testing and Inspection

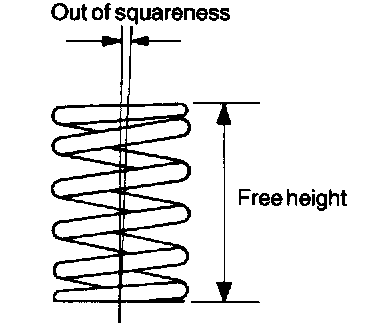

1. Check free height of each valve spring and replace if necessary.
2. Using a square, test the squareness of each valve spring. If a spring is excessively out of square, replace it.

Free height
Standard value: 50.5 mm (1.988 inch)
Wear Limit: 49.5 mm (1.949 inch)

Load
Standard value: 32.9 kg @ 41.4 mm (74 lb @ 1.630 inch)
Wear Limit: 32.9 kg @ 40.4 mm (74 lb @ 1.591 inch)

Out of squareness
Standard value: Max. 2°
Wear Limit: Max. 4°
