Disassembly

NOTE: To remove this component from transaxle see overhaul procedure of automatic transaxle. Service and Repair





1. Remove the four solenoid valves.

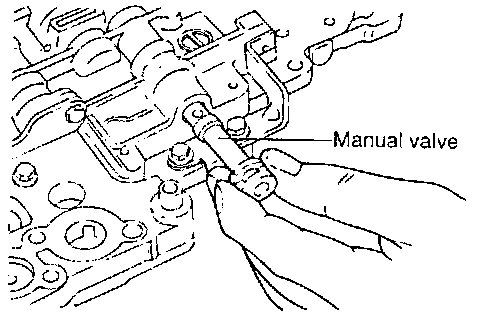

2. Remove the manual valve.

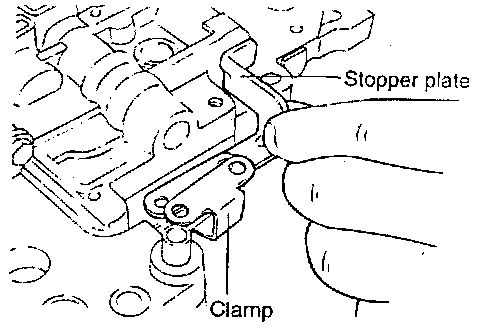

3. Remove the valve stopper and clamp.

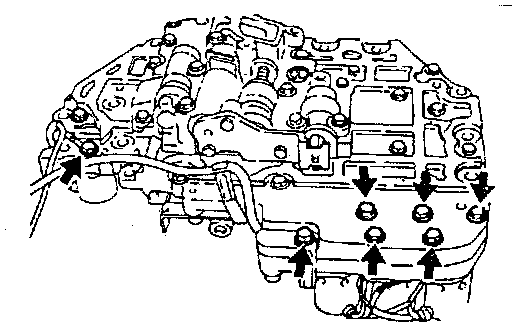

4. Remove the bolts (13), then remove the lower valve body.

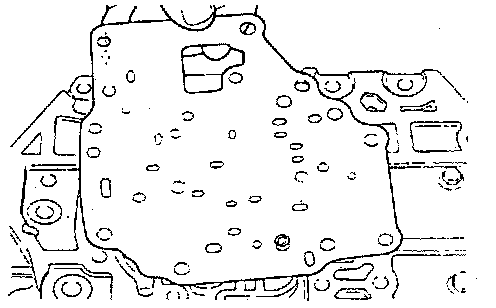

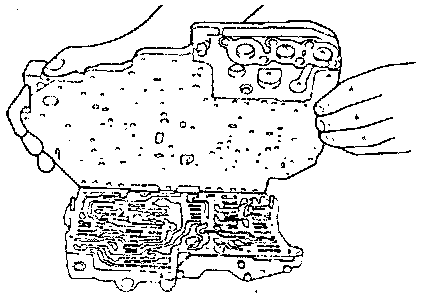

5. Remove the separating plate.

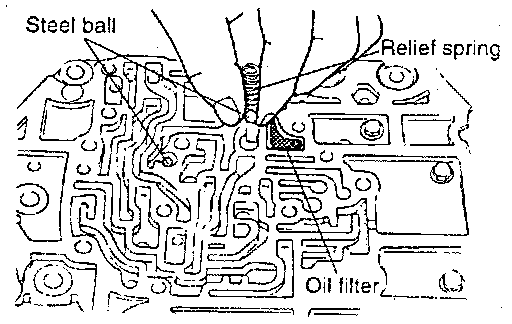

6. Remove the relief spring, two steel balls and oil filter from the intermediate plate.





7. Remove the bolts (8), then remove the intermediate and upper separation plates.





8. Remove the block.

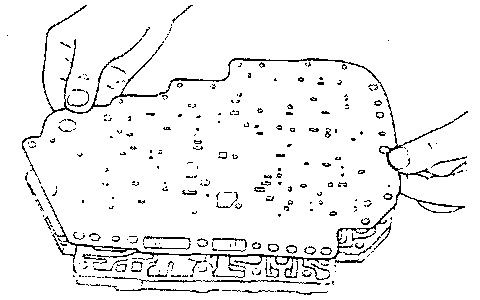

9. Remove the upper separating plate.

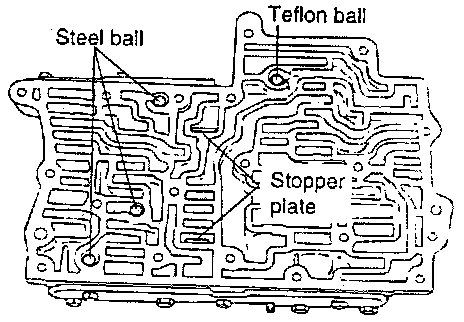

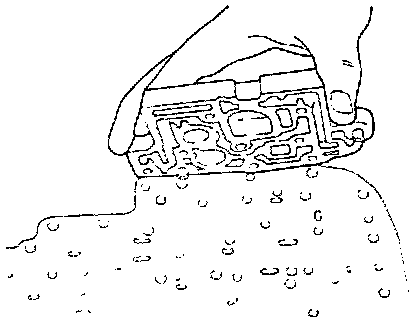

10. Remove, from the upper valve body, the three steel balls, the teflon ball, and the two stopper plates.

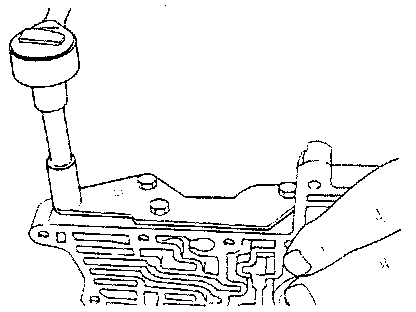

11. Remove the seven bolts from the upper valve body; then remove the front end cover and the adjustment screw.

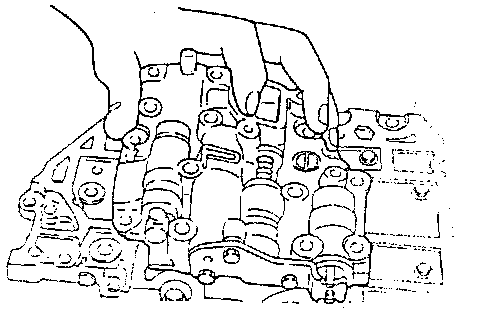

CAUTION: When removing the bolts, press firmly on the front end cover (as shown in the illustration) so the spring doesn't cause the adjustment screw to pop out.

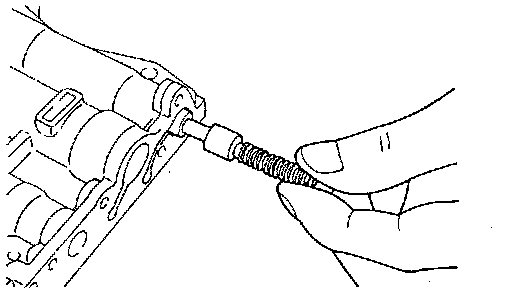

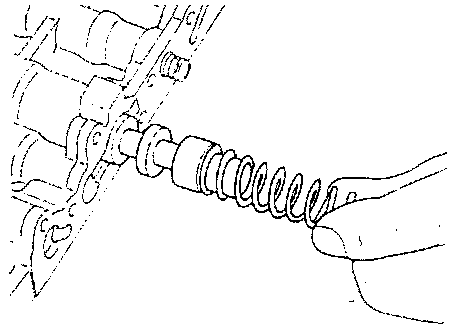

12. Remove the pressure control spring and the pressure control valve.





13. Remove the torque converter control spring and the torque converter control valve.

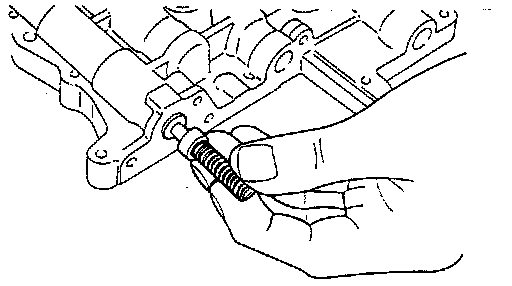

14. Remove the regulator spring and the regulator valve.

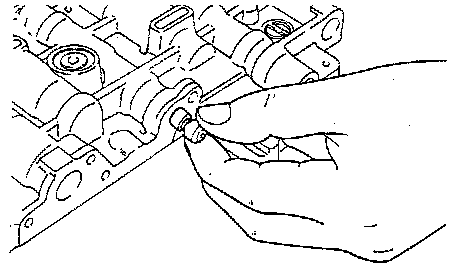

15. Remove the shift-control spring and the shift-control plug A.

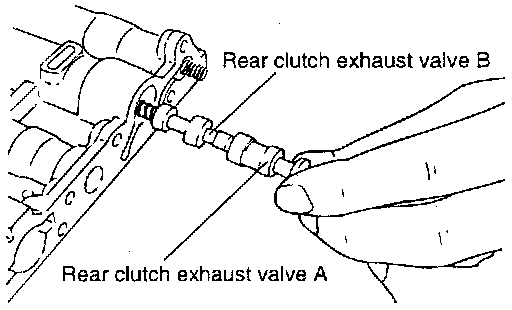

16. Remove the rear clutch exhaust valves A and B and the rear clutch exhaust spring.





17. Remove the 2-3/4-3 shift spring and the shift valve.

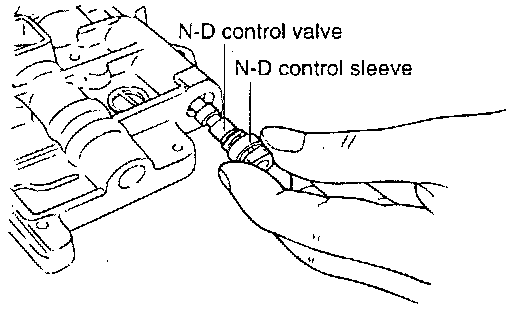

18. Remove, from the rear side of the upper valve body, the N-D plate, the N-D control sleeve and the N-D control valve.





19. Remove the four bolts, then remove the rear end cover.





20. Remove the 1-2 shift spring and the 1-2 shift valve.

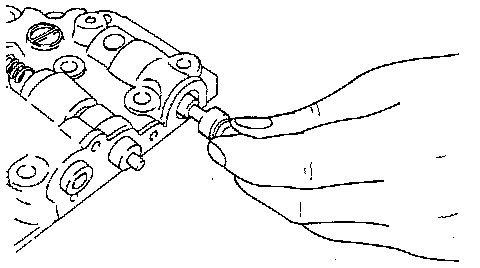

21. Remove the shift-control plug B.





22. Remove the shift-control valve.

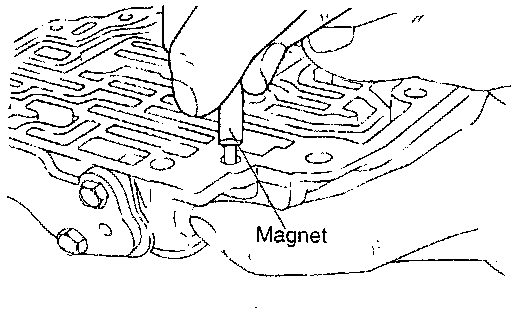

23. Using a magnet or a similar tool, extract the pin from the lower valve body, then remove the stopper.





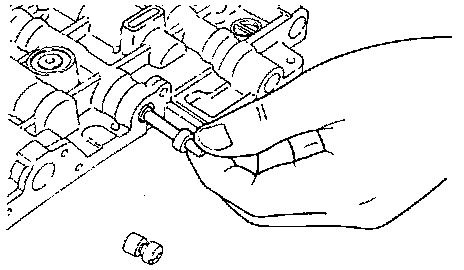

24. Remove the end clutch valve plug, end clutch spring, and end clutch valve.





25. Remove the three bolts from the lower valve body, then remove the end cover, adjustment screw, and reducing spring.





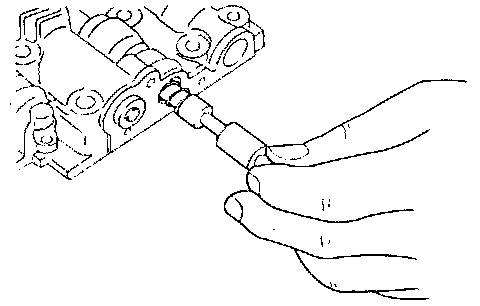

26. Remove the reducing valve.





27. Remove the N-R control valve and the N-R control spring.

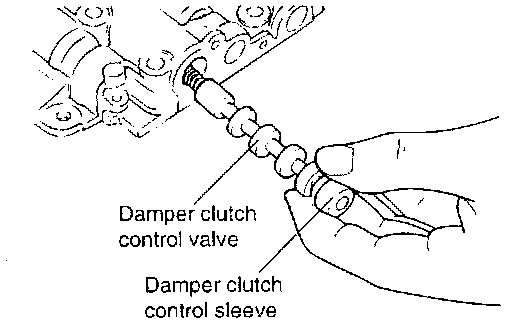

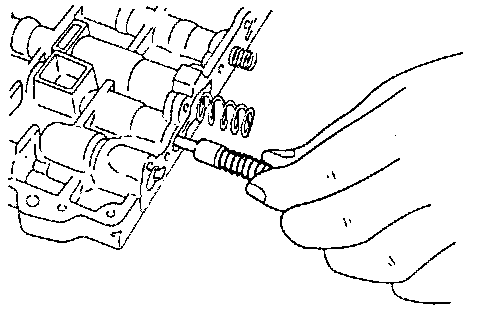

28. Remove the damper clutch control sleeve, damper clutch control valve, and damper clutch control spring.
