Assembly

NOTE: To install this component into transaxle see overhaul procedure of automatic transaxle. Service and Repair

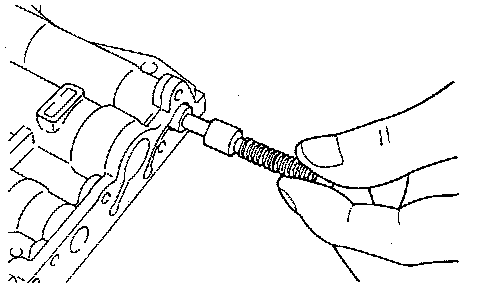

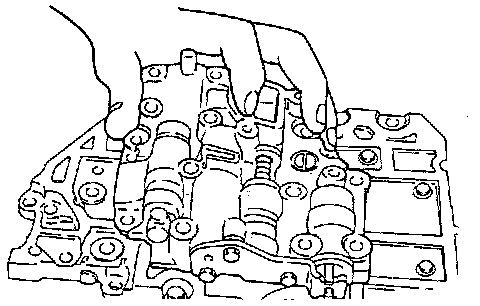

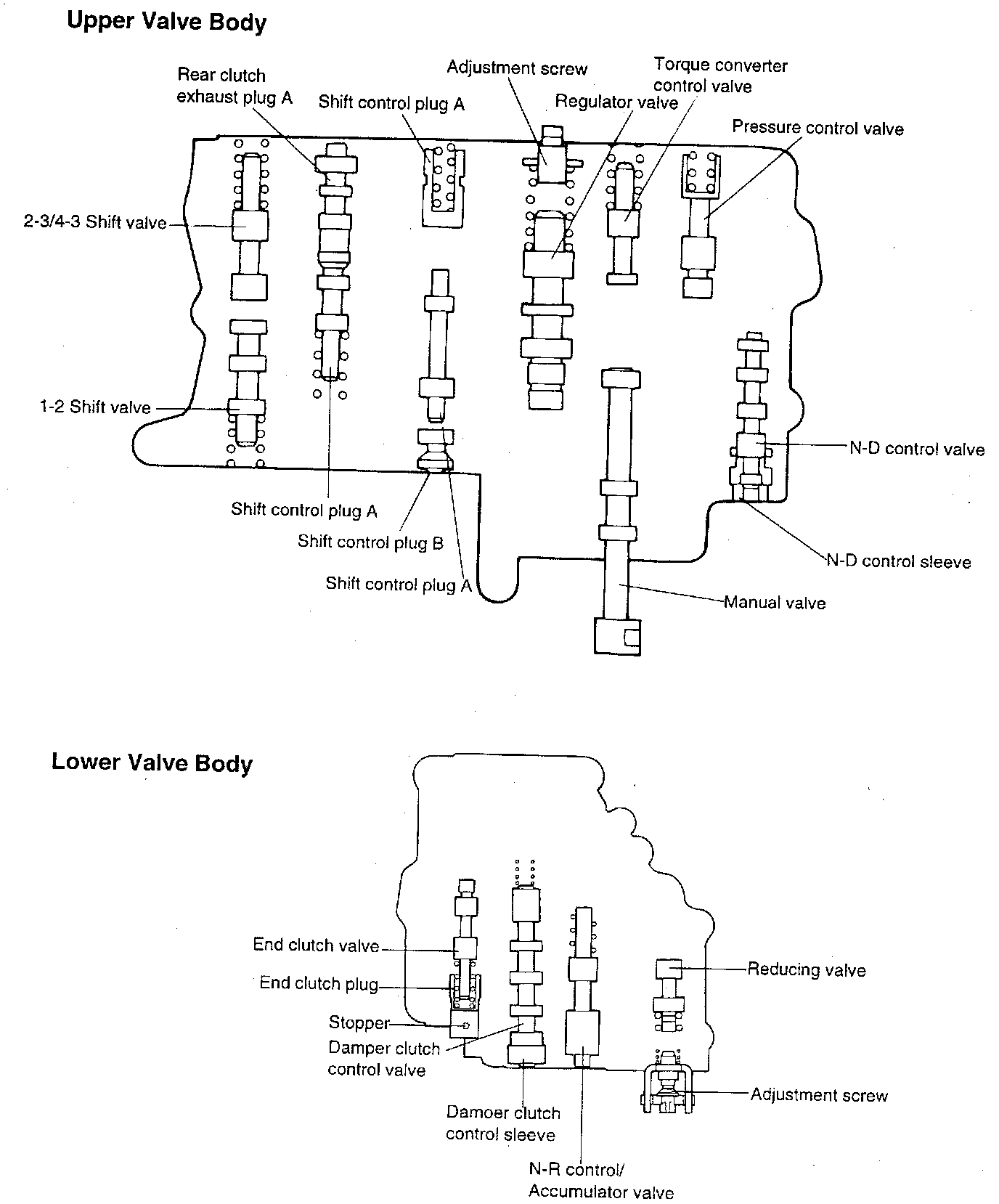

1. Install the lower valve body, the damper clutch control spring, damper clutch control valve, and damper clutch control sleeve.





2. Install the N-R control spring and the N-R control valve.





3. Install the reducing valve.





4. Install the reducing spring, adjustment screw, and end cover. Then, using the special tool, tighten the bolts to the specified torque.





5. Install the end clutch valve, end clutch spring and end clutch plug.

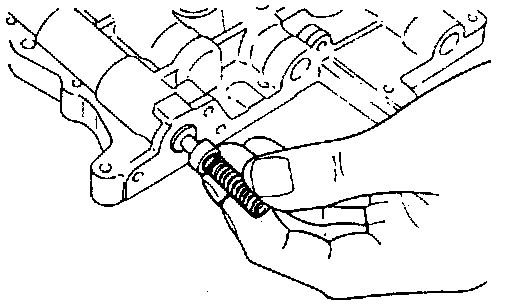

6. Install the stopper and secure it with a push-in pin.





7. Install the shift-control valve to the upper valve body.

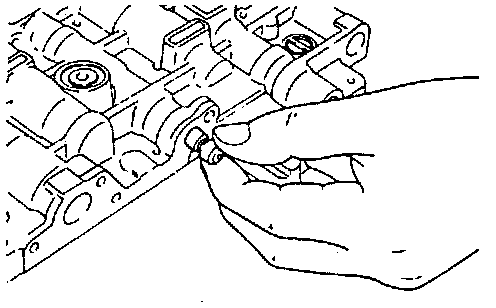

8. Install the shift-control plug B.

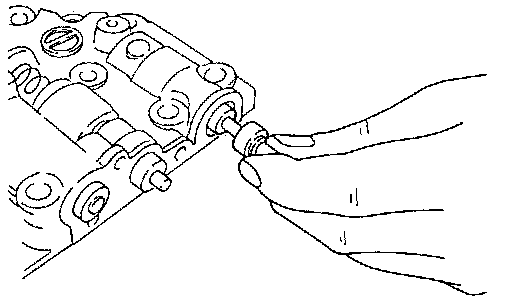

9. Install the 1-2 shift valve and 1-2 shift spring.





10. Install the rear end cover. Then, using the special tool tighten the bolts to the specified torque.





11. Install the N-D control valve, N-D control sleeve and N-D plate.

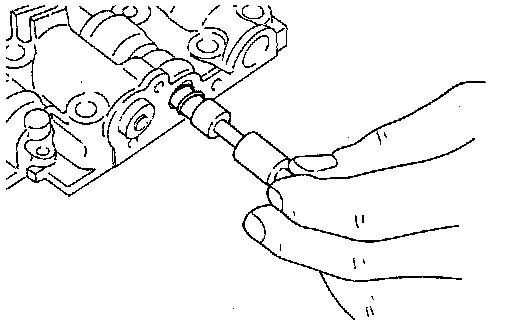

12. Install the 2-3/4-3 shift valve and the 2-3/4-3 shift spring.





13. Install the rear clutch exhaust spring and rear clutch exhaust valves A and B.





14. Install the shift-control valve and shift control spring.





15. Install the regulator valve and regulator spring.





16. Install the torque converter control valve and torque converter control spring.





17. Install the pressure control valve and pressure control spring.

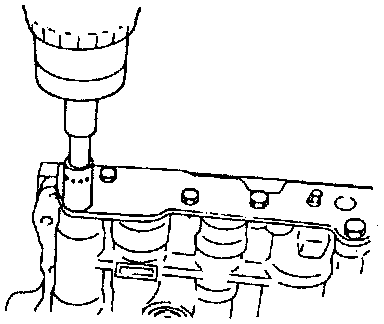

18. Install the adjustment screw and front end cover. Then, using the special tool, tighten the bolts at the specified torque.





19. Install to the upper valve body, the three steel balls, the teflon ball, and the stopper plate.

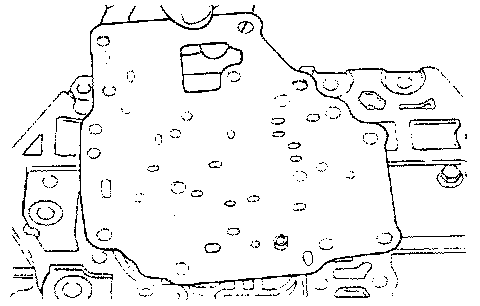

20. Install the upper separating plate.





21. Install the block.

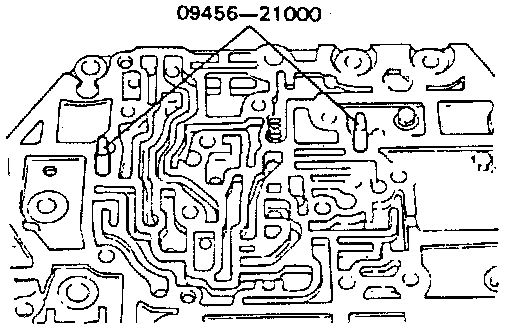

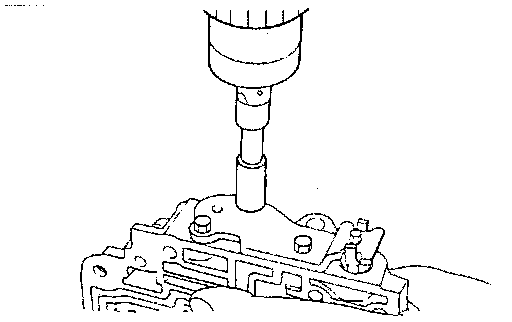

22. Install the special tool (09456 - 21000) or equivalent. Then, after securing the upper separating plate and the intermediate plate by the eight installation bolts, remove the special tool.





23. Install to the intermediate plate, the oil filter, the two steel balls and the spring.





24. Install the special tool (09456 - 21000) or equivalent, to the intermediate plate.





25. Install the separating plate.





26. After securing the lower valve body with the 13 installation bolts, remove the special tool.





27. Install the valve stopper and clamp.





28. Install the manual valve.

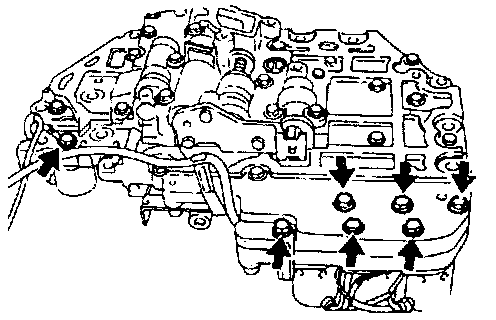

29. Secure the four solenoid valves with the installation bolts.
