Control Module Input Circuit

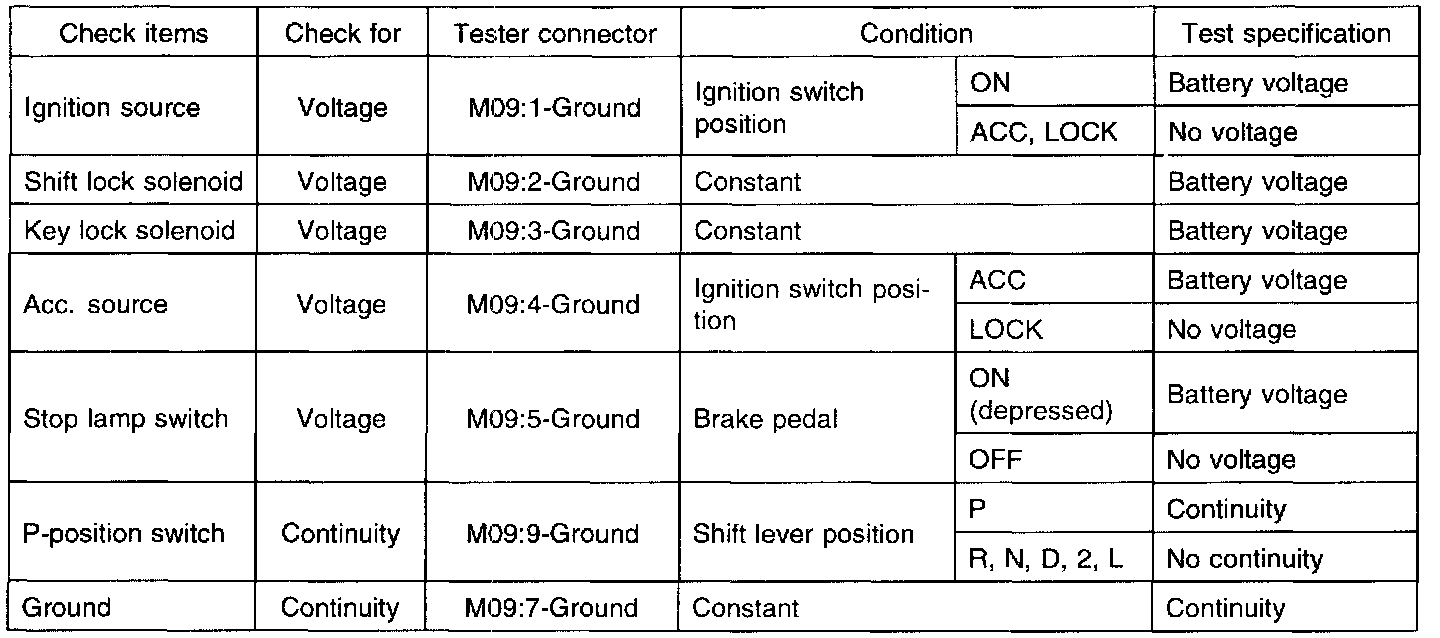

Disconnect the 9-pin connector from the control model and inspect the connectors on the wire harness side as shown.
