Removal

CAUTION: Be sure to cover the generator with a protector when servicing the [1][2]oil pump.

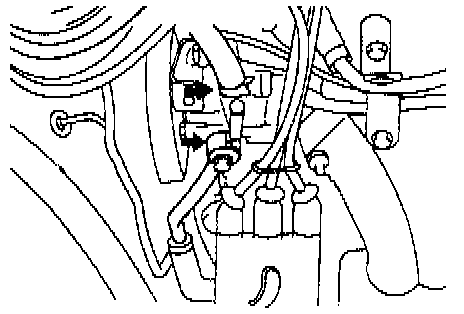

1. Remove the pressure hose from the [1][2]oil pump.

NOTE: When assembling, use a new O-ring.

2. Disconnect the suction hose from the suction connector and drain the fluid into a container.

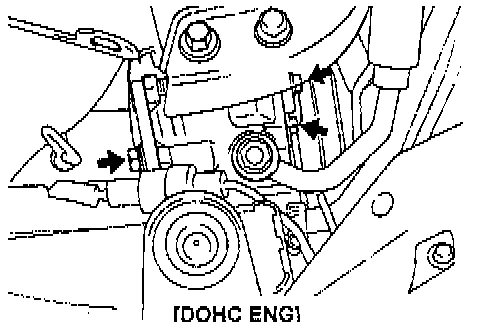

3. Loosen the [1][2]oil pump mounting bolts to remove the V-belt.
