Oil Seal Replacement

1. Pry off the pump housing oil seal using a screwdriver.

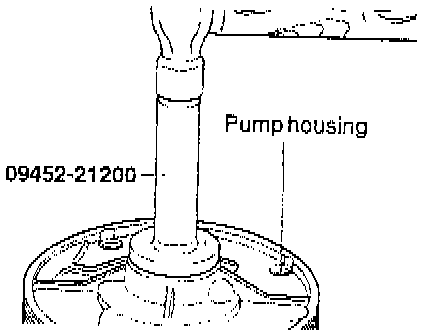

2. Using the special tool (09452-21200) or equivalent, install the oil seal to the pump housing. Apply a thin coat of automatic transaxle fluid to the lip of the oil seal before installation.
