Replacement

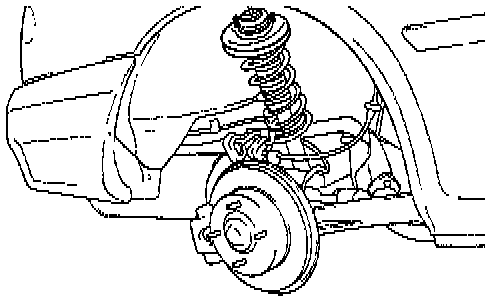

1. Remove the rear strut upper mounting nut.
2. Raise the vehicle and position the jack stands.
3. Remove the wheel and tire.





4. Disconnect the ABS wheel sensor wiring from the strut assembly.

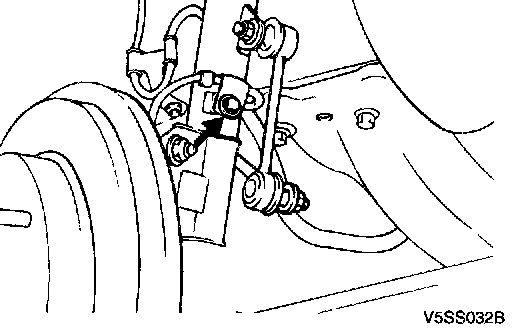

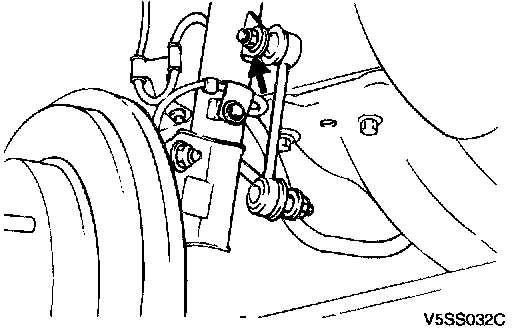

5. Remove the stabilizer link mounting nut from the strut assembly.

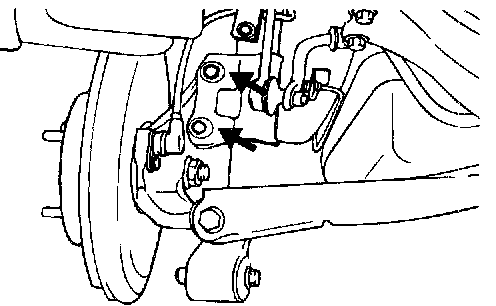

6. While supporting the rear suspension assembly with a transaxle jack, loosen the strut assembly mounting bolts from the knuckle.

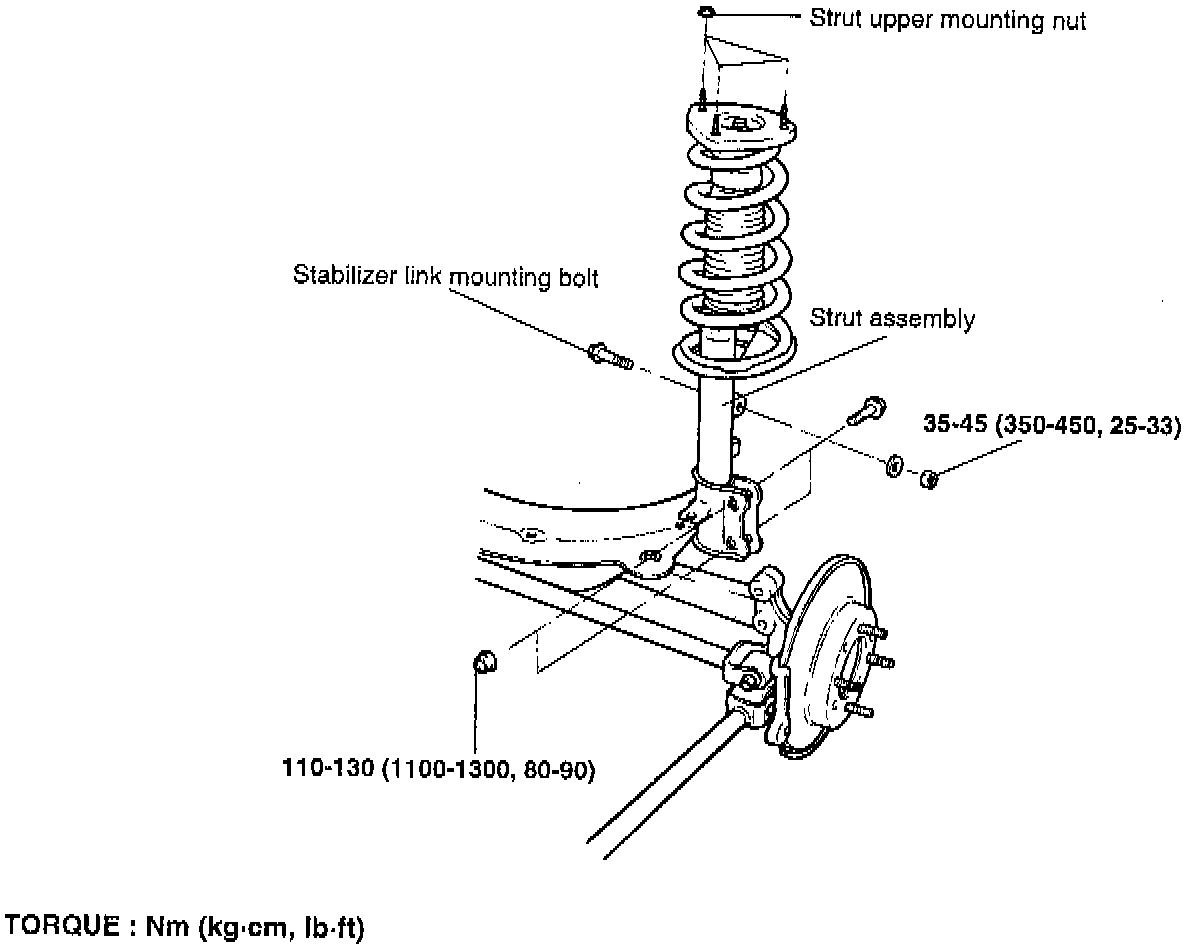

7. Remove the strut assembly.
8. Reverse to install.
