Removal

1. Raise the front of the vehicle and mount it on a jack stand.
2. Remove the wheel and tire.

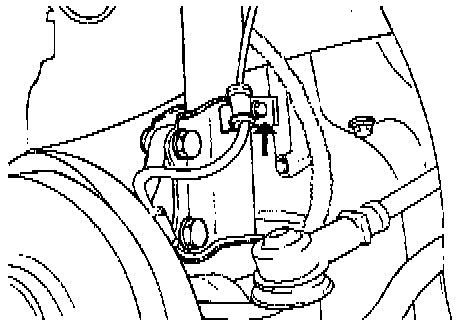

3. Detach the brake hose and front speed sensor wiring from the strut assembly.

NOTE: Do not pry or force the components.





4. Remove the strut assembly from the knuckle and wheel house.
5. Having removed the union between the strut and the knuckle, jack up the lower arm. Attach the brake hose, brake line, front speed sensor wiring harness and drive shaft to the knuckle with wire to prevent them from being damage.
