Return Tube and Hose

1. Detach the power steering fluid reservoir from its mounting bracket.
2. Remove the engine coolant reservoir.





3. Detach the return tube and hose assembly mounting clamps.

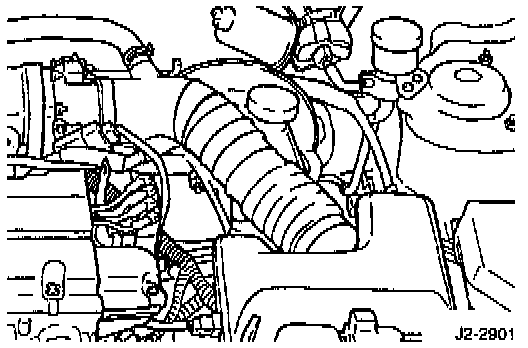

4. Remove the air intake hose assembly.





5. Disconnect the pressure tube and the return tube fittings at the gear box side.





6. Lift up the vehicle and detach the mounting clamp which is holding both of the pressure tube and the return tube.
7. Lift down the vehicle and disconnect the clamp holding the return tube and hose assembly.





8. Remove the return tube and hose assembly.





9. Detach the air conditioning discharge hose mounting clamp.





10. Disconnect the clamp holding the return tube and hose assembly and the oil cooler tube.





11. Remove the return tube and hose assembly.
12. Installation is the reverse order of removal.

NOTE:
- Install the return tube and hose assembly so that it is not twisted and it does not come in contact with any other parts.
- After installation, bleed the system.
