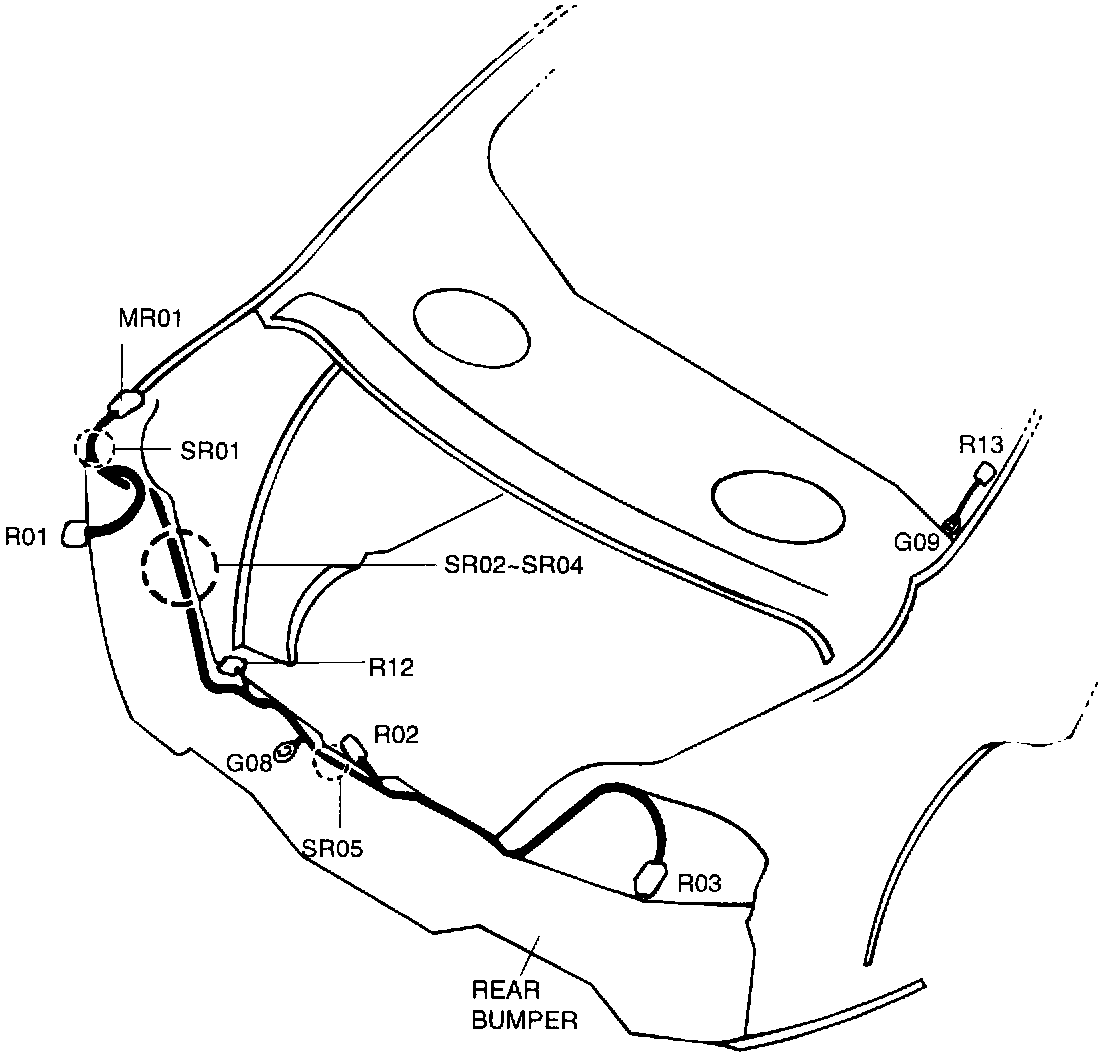

Rear Wiring Harness

Rear Harness:

R01 Left rear combination lamp
R02 Trunk room lamp switch
R03 Right rear combination lamp
R12 License lamp
R13 Rear glass defogger (-)
MR01 Connection with MAIN harness
G08 Ground
G09 Ground
