Mirrors: Service and Repair
MIRROR SWITCH1. Remove the remote control mirror switch from crash pad.

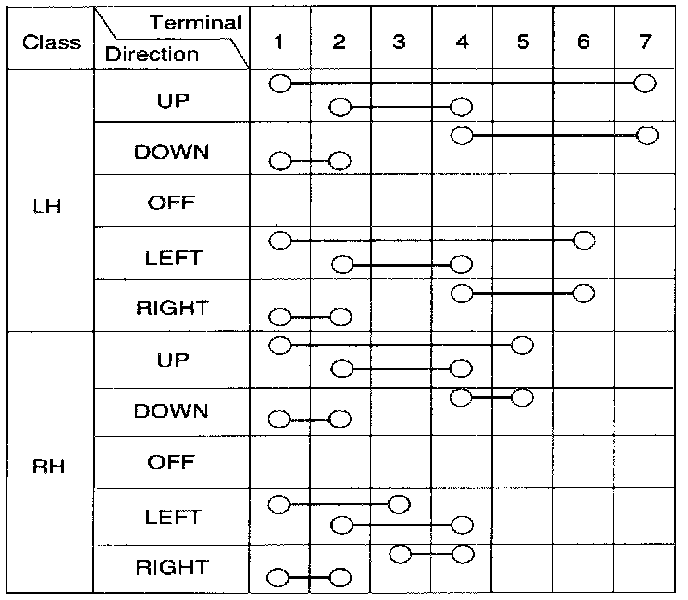

2. Check for continuity between the terminals in each switch position according to the table.
MIRROR ACTUATOR
1. Disconnect the connector from the mirror.
2. Check that the actuator operates correctly as in table.
