Antenna: Service and Repair

ANTENNA





1. Disconnect the battery negative terminal.

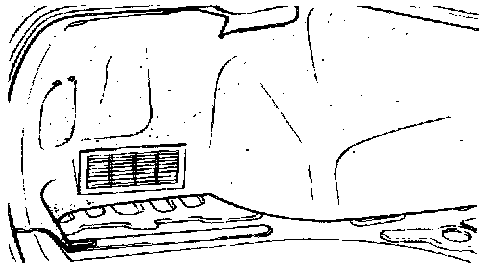

2. Remove the LH luggage side trim.

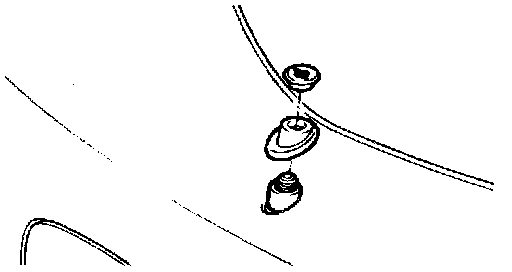

3. Remove the antenna mounting nut and insulator.

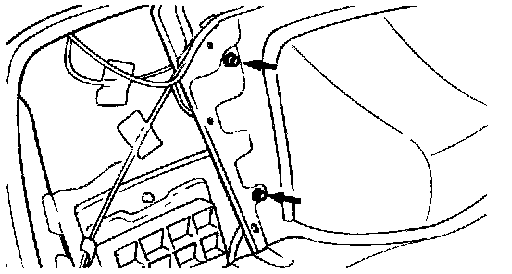

4. Remove the antenna mounting nuts (2EA).

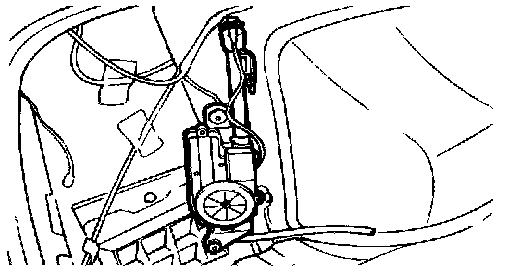

5. After removal of the antenna cable and connector, remove the antenna assembly.
6. Installation is the reverse order of removal procedure.
