Security System - Installation Guide Correction
Group: BODY ELECTRICALNumber: 99-90-001
Date: JANUARY, 1999
Model: ALL ACCENT
Subject: ACCENT SECURITY SYSTEM INSTALLATION GUIDE CORRECTION
DESCRIPTION:
Step 7 in the installation instructions for some Accent Security System Kits is incorrect. The instructions call for locating the MRO1 harness connector. The correct harness connectoris MMO4.
Please make sure to connect to harness connector MMO4 whenever the instructions call for MRO1.
The Accent Security System installation instructions have been updated to reflect the correct connector.

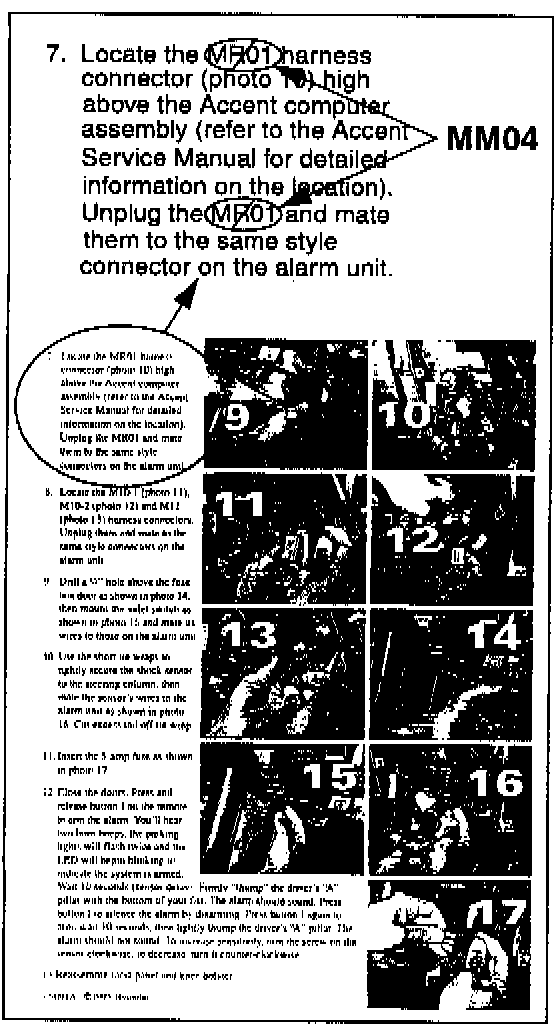

PROCEDURE CORRECTION

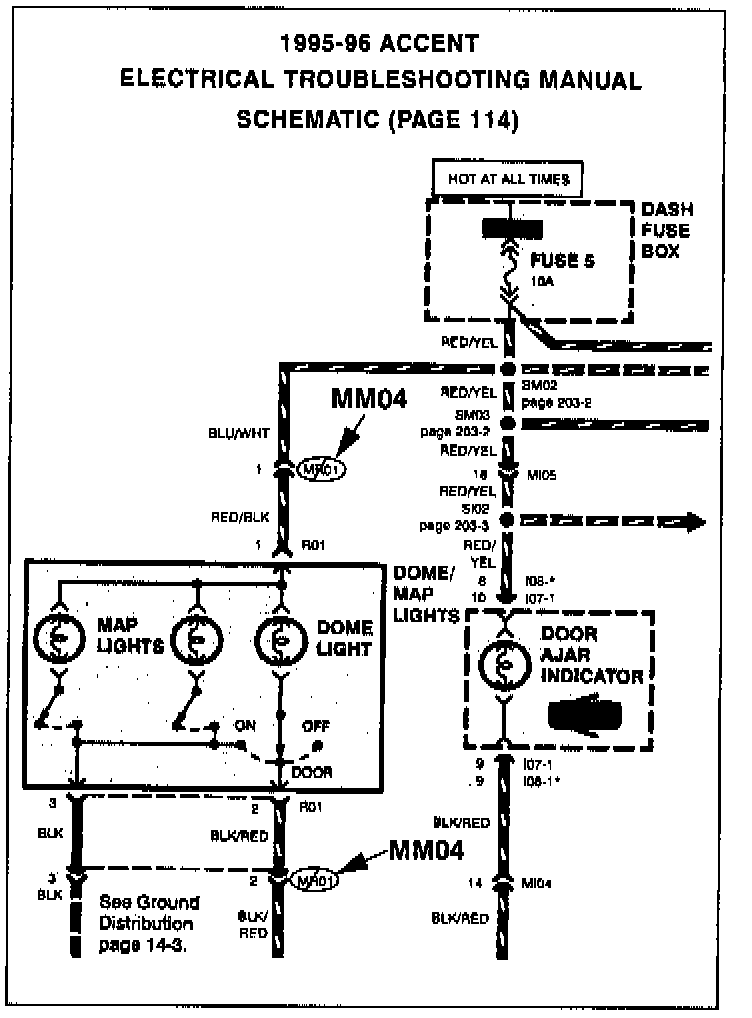

DIAGRAM CORRECTION
