Crankshaft Position Timing Ring: Service and Repair

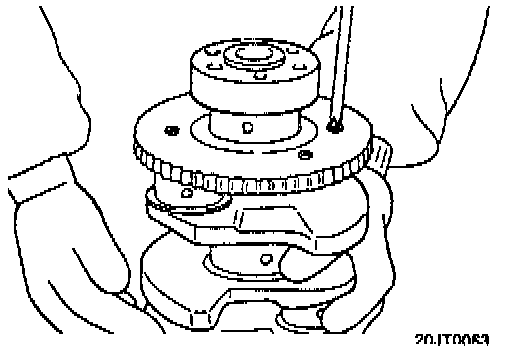

Refer to the illustration when removing and installing the crankshaft position sensor wheel.






Tighten mounting screws to 5-6 Nm (50-60 kg. cm, 3.7-4.4 ft. lbs.).
