Engine Compartment Relay/Fuse Box

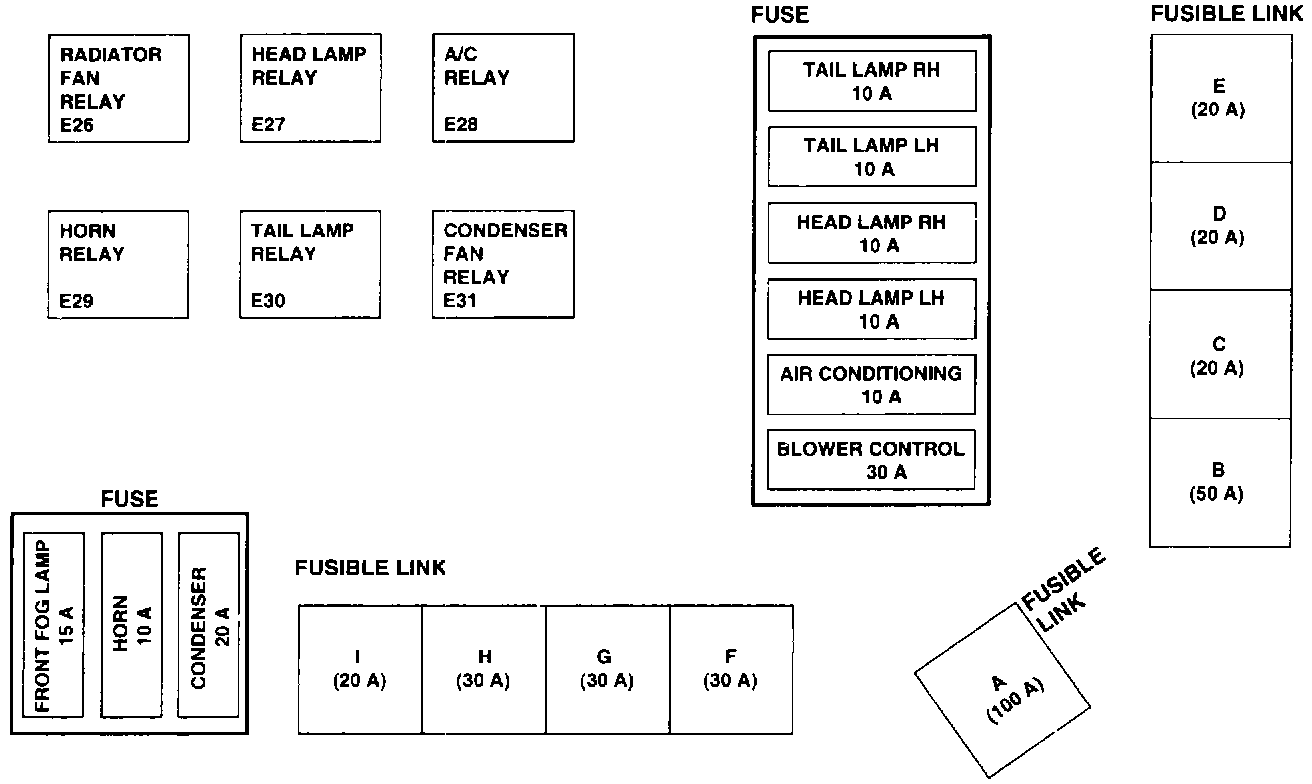

Engine Compartment Relay And Fuse Box - Layout:

Engine Compartment Relay And Fuse Box - Circuit:
