Compressor Clutch: Description and Operation

HOW IS THE MAGNETIC CLUTCH ENERGIZED ?

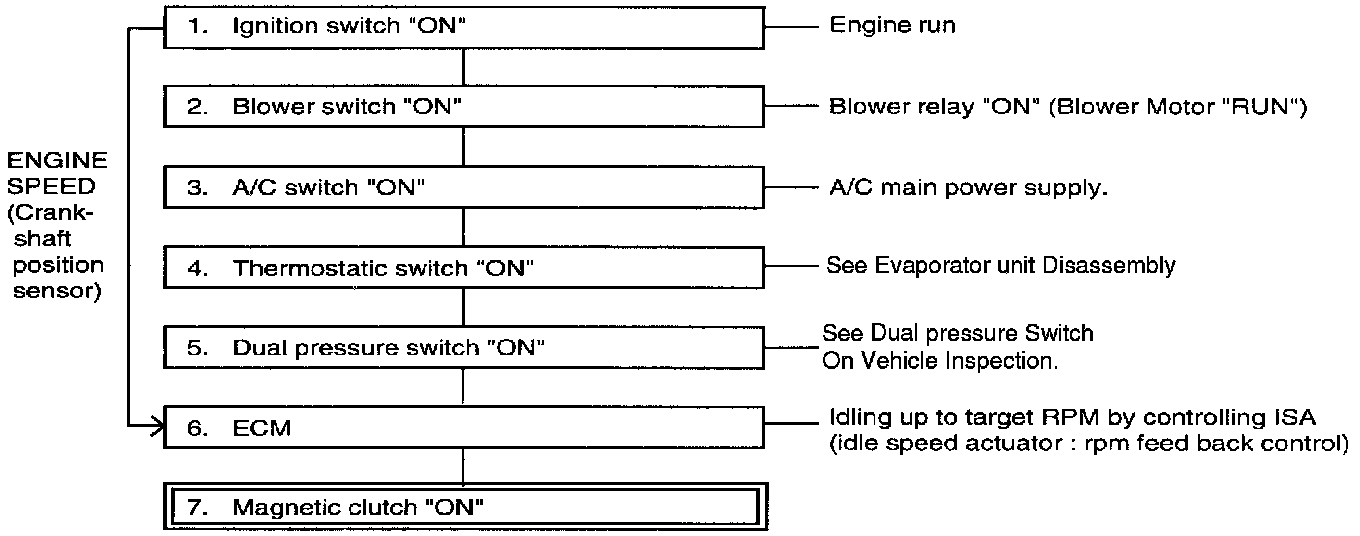

The general process how the magnetic clutch is energized is shown (MFI only)
