Compressor Clutch Relay: Testing and Inspection

RELAYS
AIR CONDITIONING RELAY AND CONDENSER FAN RELAY
1. Remove the battery ground cable.

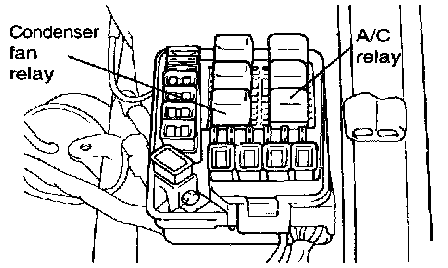

2. Remove the cover of relay box located in engine compartment.




3. Remove the relays from relay box.
4. Check for continuity or voltage between the terminals.

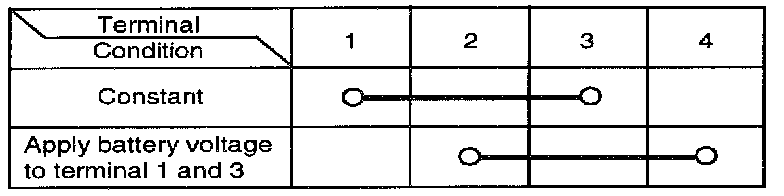

AIR CONDITIONING RELAY-check for continuity








If continuity is not as specified, replace the relay
