Power Mirror Control Module: Testing and Inspection

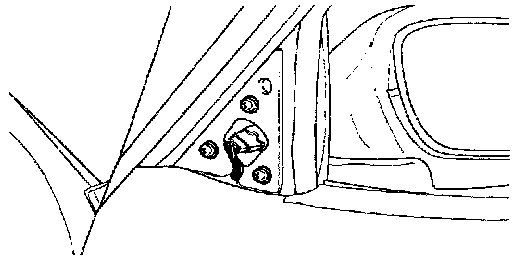

MIRROR ACTUATOR

INSPECTION

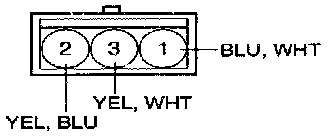

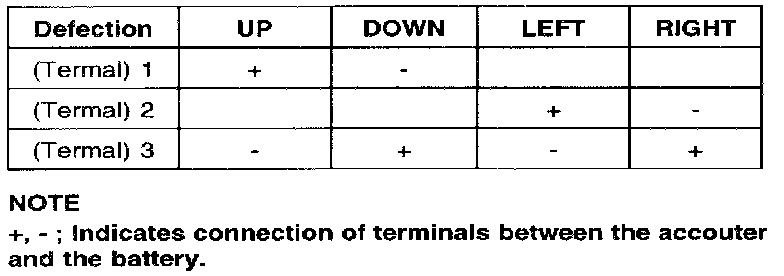

Apply battery voltage to each terminal as shown in the table, and confirm that the mirror operates properly.
