Front Engine Plate

TIGHTENING SPECIFICATIONS
Oil Pump Cover Screw:
6-9 Nm (60-90 kg. cm., 4.5-6.6 ft. lbs.).

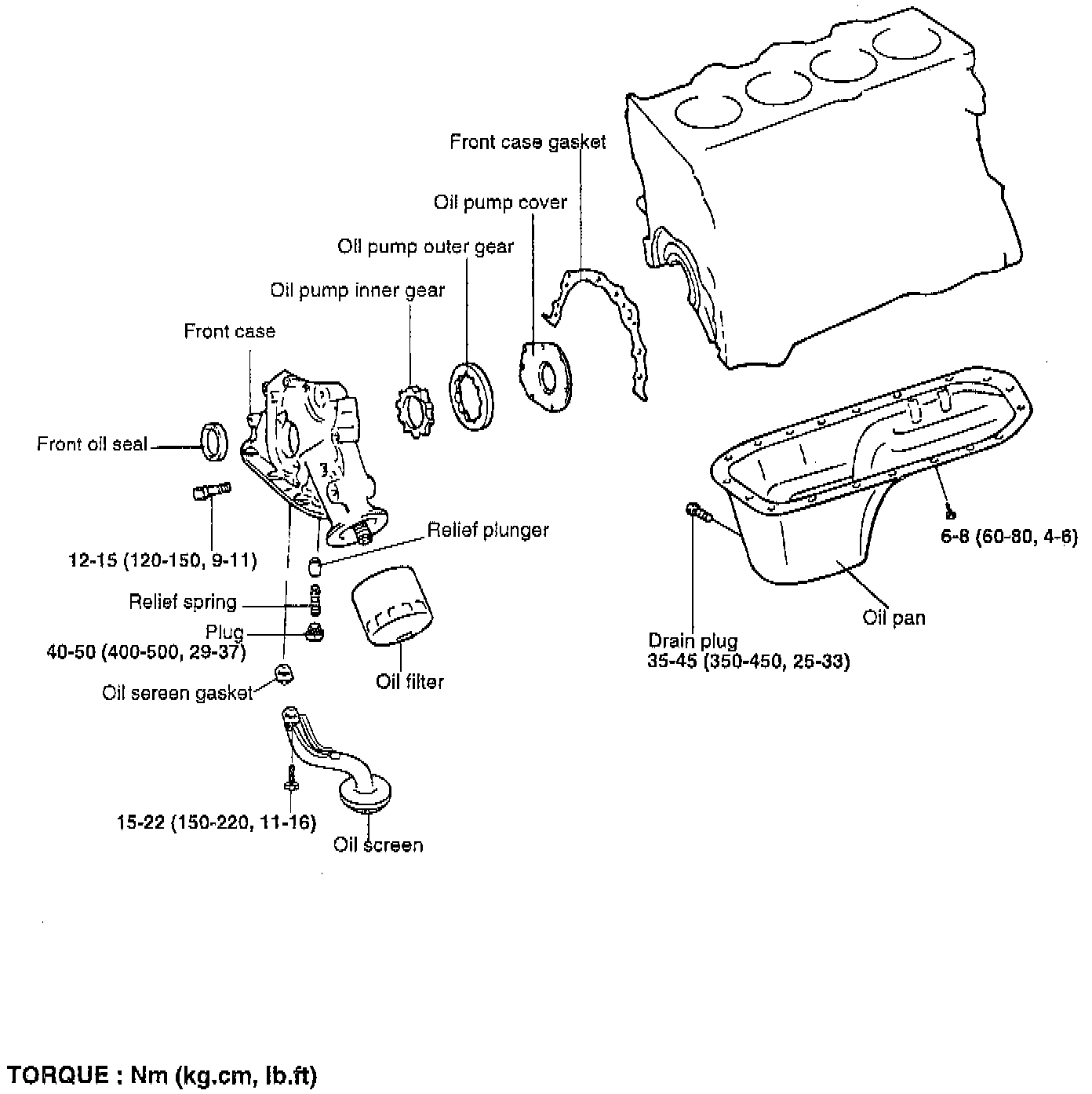

Refer to the illustration for additional tightening specifications.

DIMENSIONS
Outer Gear Clearance Between Outer Circumference And Front Case:
0.12-0.18mm (0.0047-0.0070 inch).
Tip Clearance On The Pump Rotor:
Standard value: 0.025-0.069 mm (0.0010-0.0027 inch).
Axial Clearance On The Outer Pump Rotor:
Standard value: 0.04-0.085 mm (0.0016-0.0033 inch).
Pressure Relief Valve Spring:
Free Height: 46.6 mm (1.8346 inch).
Load: 6.1 kg/40.1 mm (13.42 lb/1.578 inch)
