Rough Road Sensor: Testing and Inspection

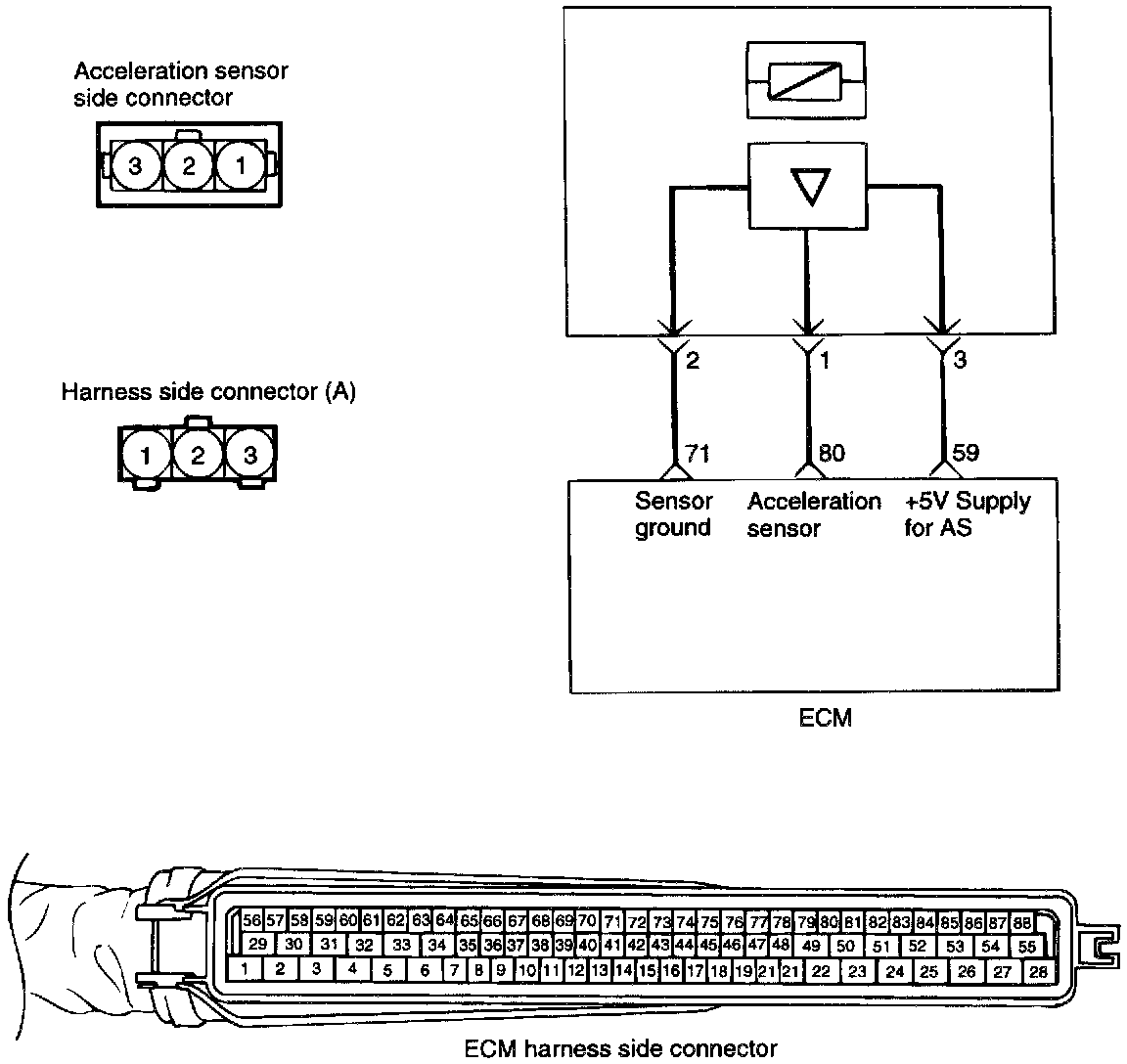

CIRCUIT DIAGRAM

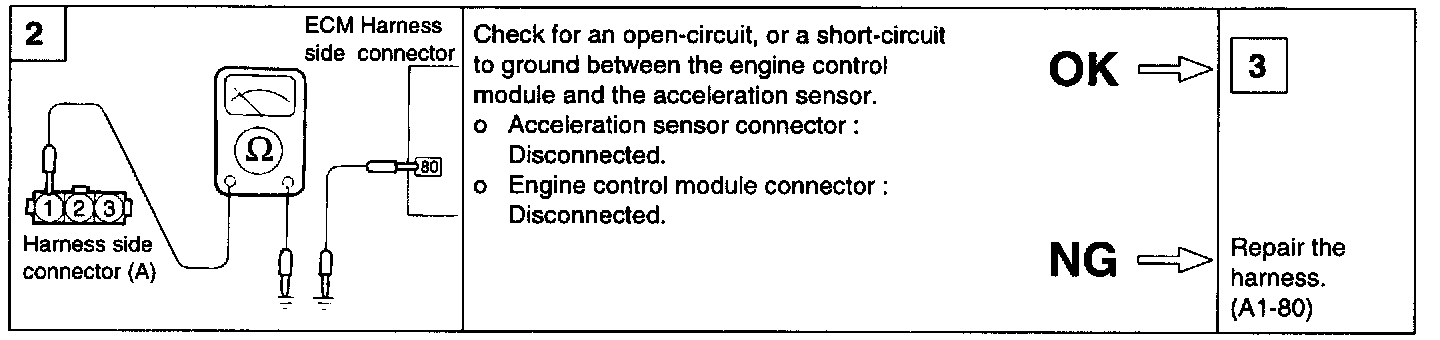

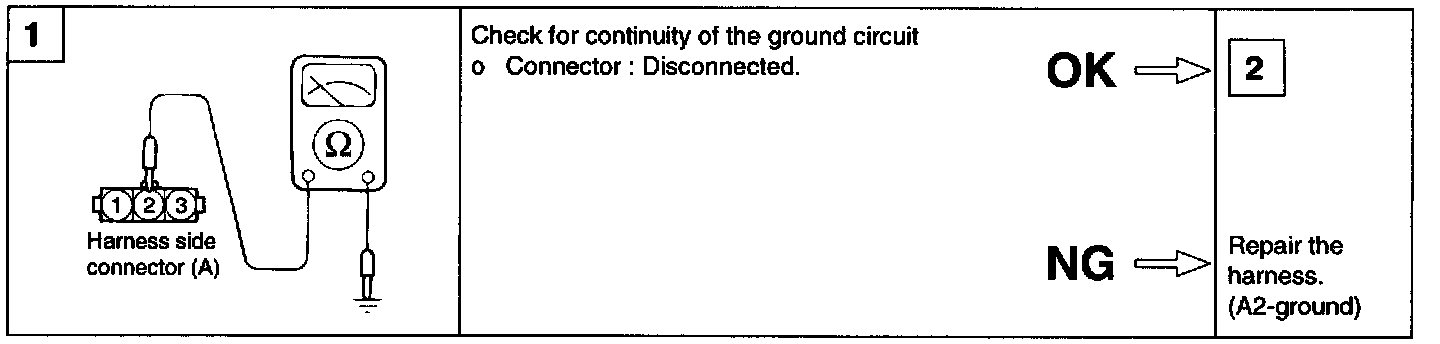

HARNESS INSPECTION PROCEDURES

DTC P 1605, P1606 - Acceleration Sensor:

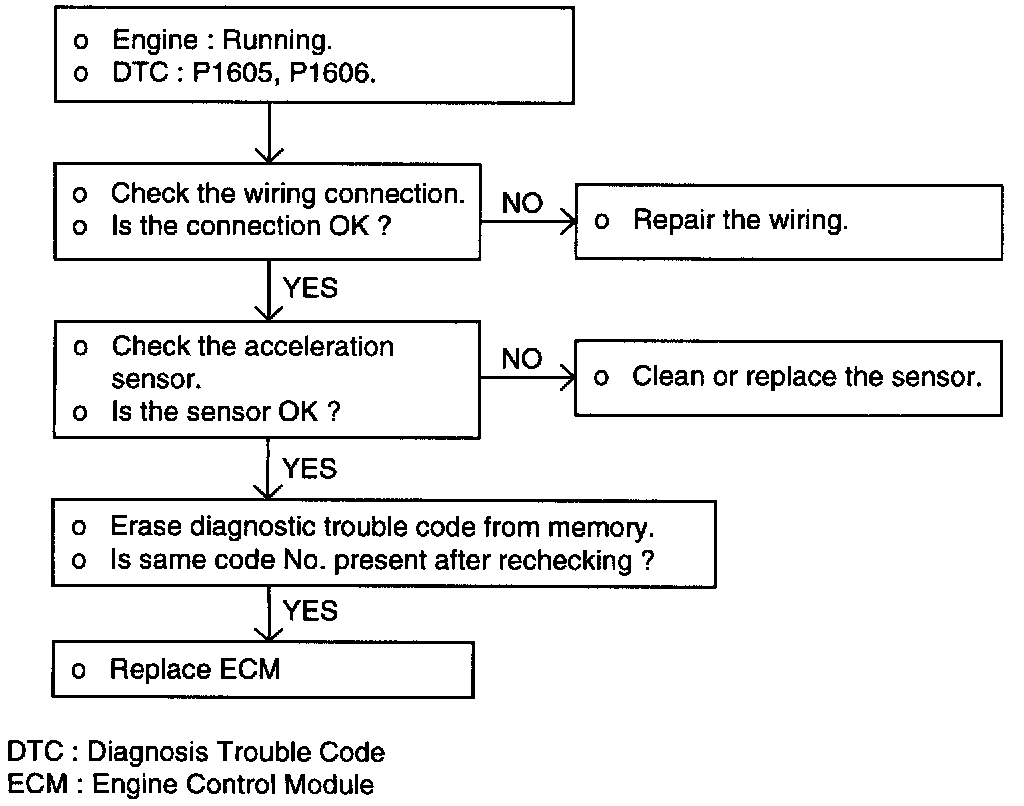

TROUBLESHOOTING PROCEDURES

TROUBLESHOOTING HINTS
When abnormal output voltage occurs at stop position of vehicle or acceleration sensor is operated beyond normal operating zone.

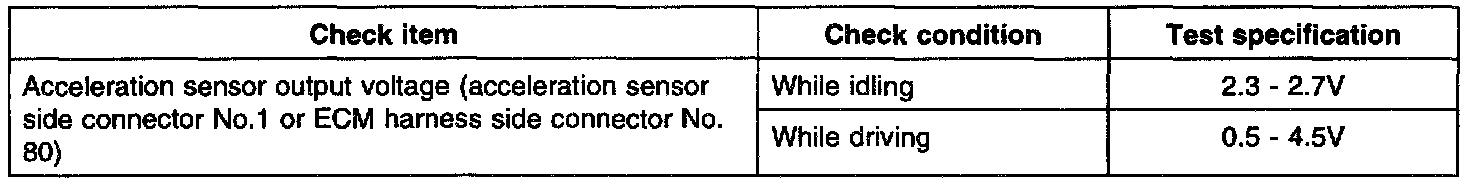

USING VOLTMETER
