Fuel Tank Pressure Sensor: Testing and Inspection

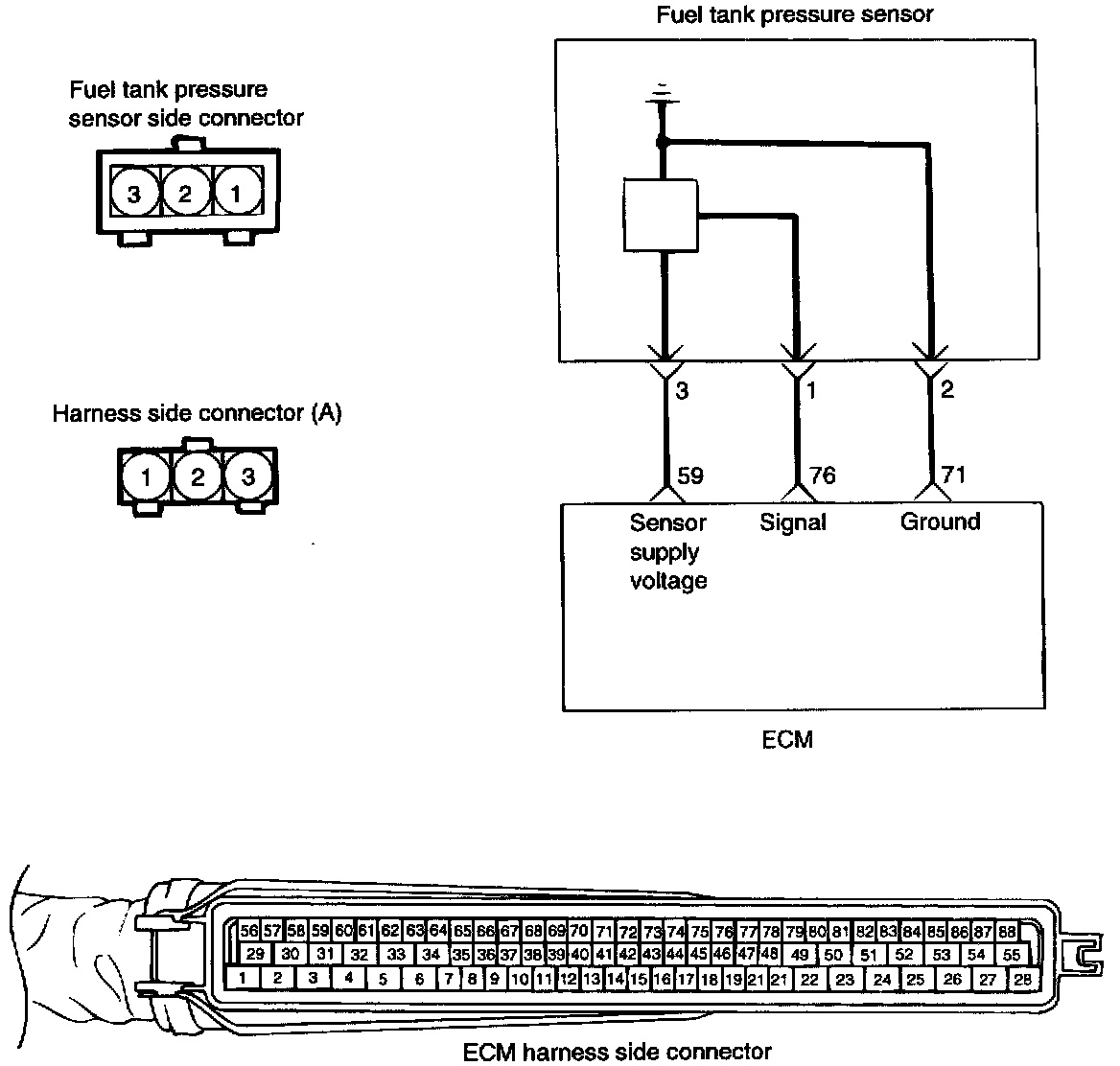

CIRCUIT DIAGRAM
HARNESS INSPECTION PROCEDURES

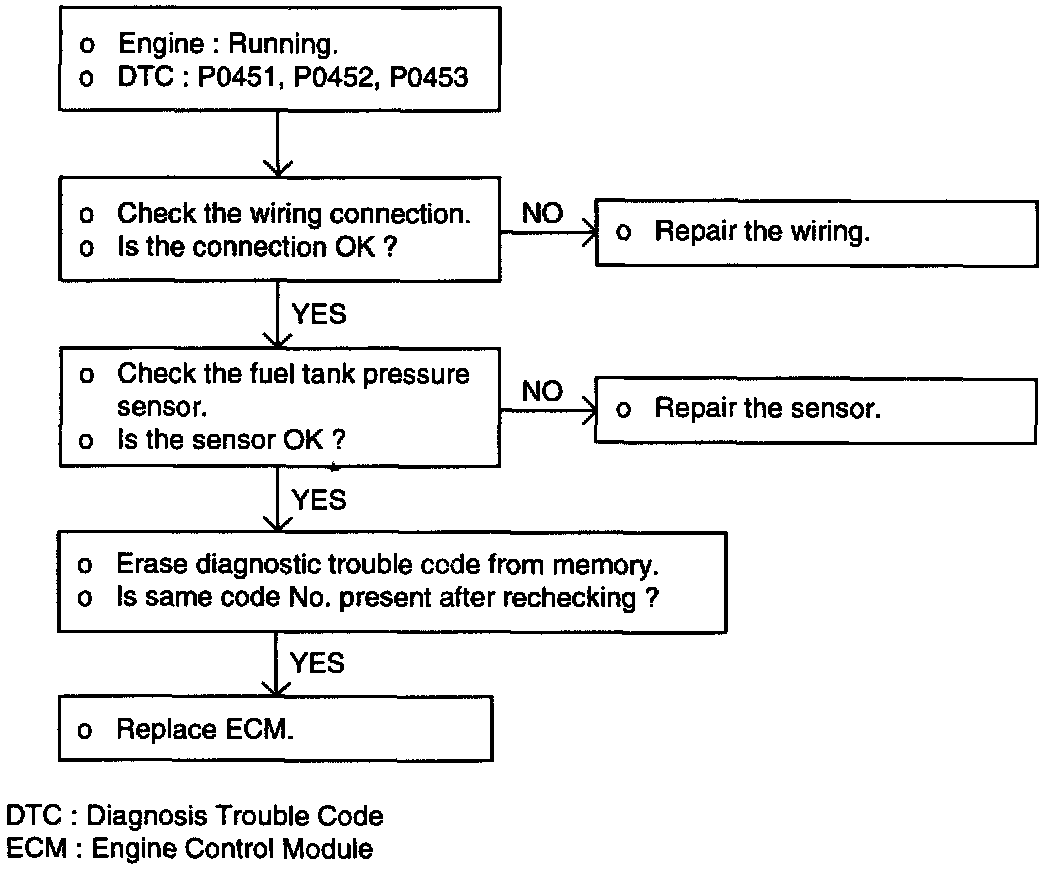

DTC P0451, P0452, P0453 - Fuel Tank Pressure Sensor:

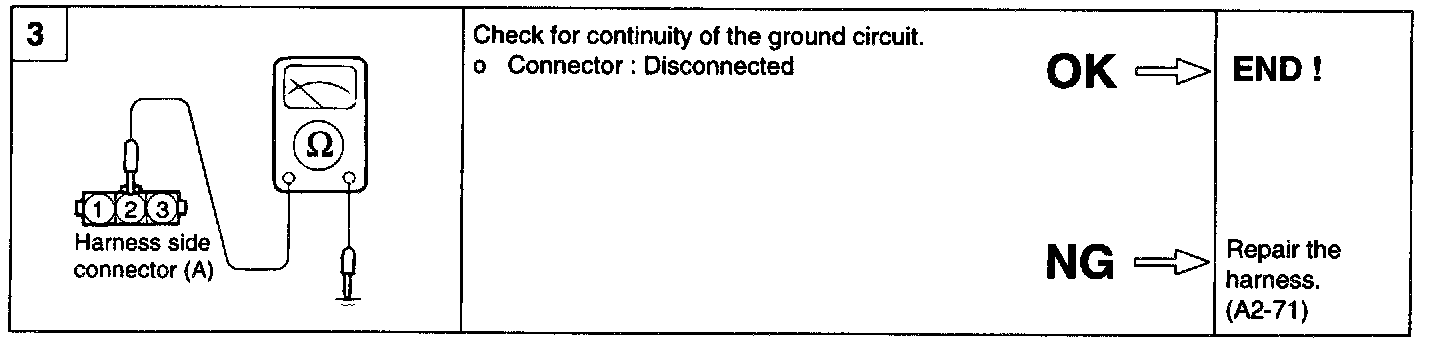

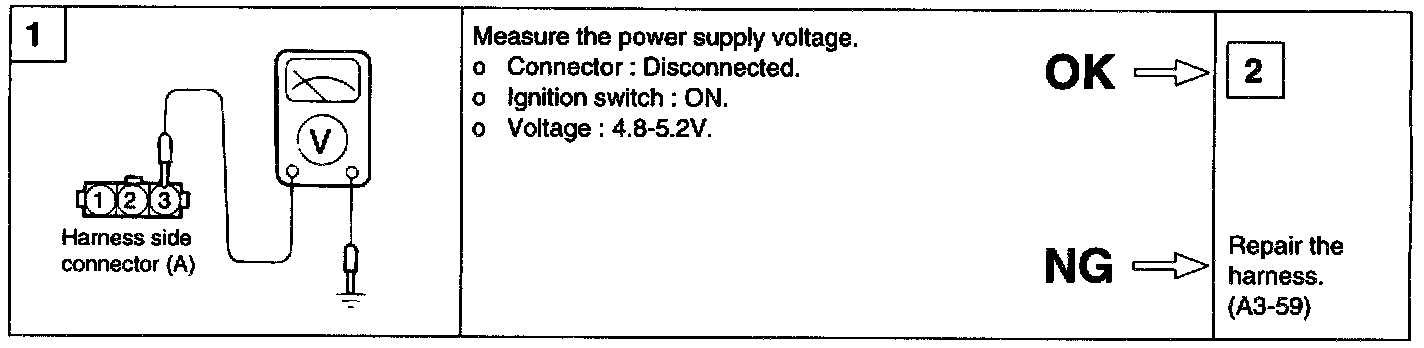

TROUBLESHOOTING PROCEDURES
