Accent L4-1495cc 1.5L DOHC MFI
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Connector Views
>>
Power Distribution
>>
C55 - C77
C55 - C77

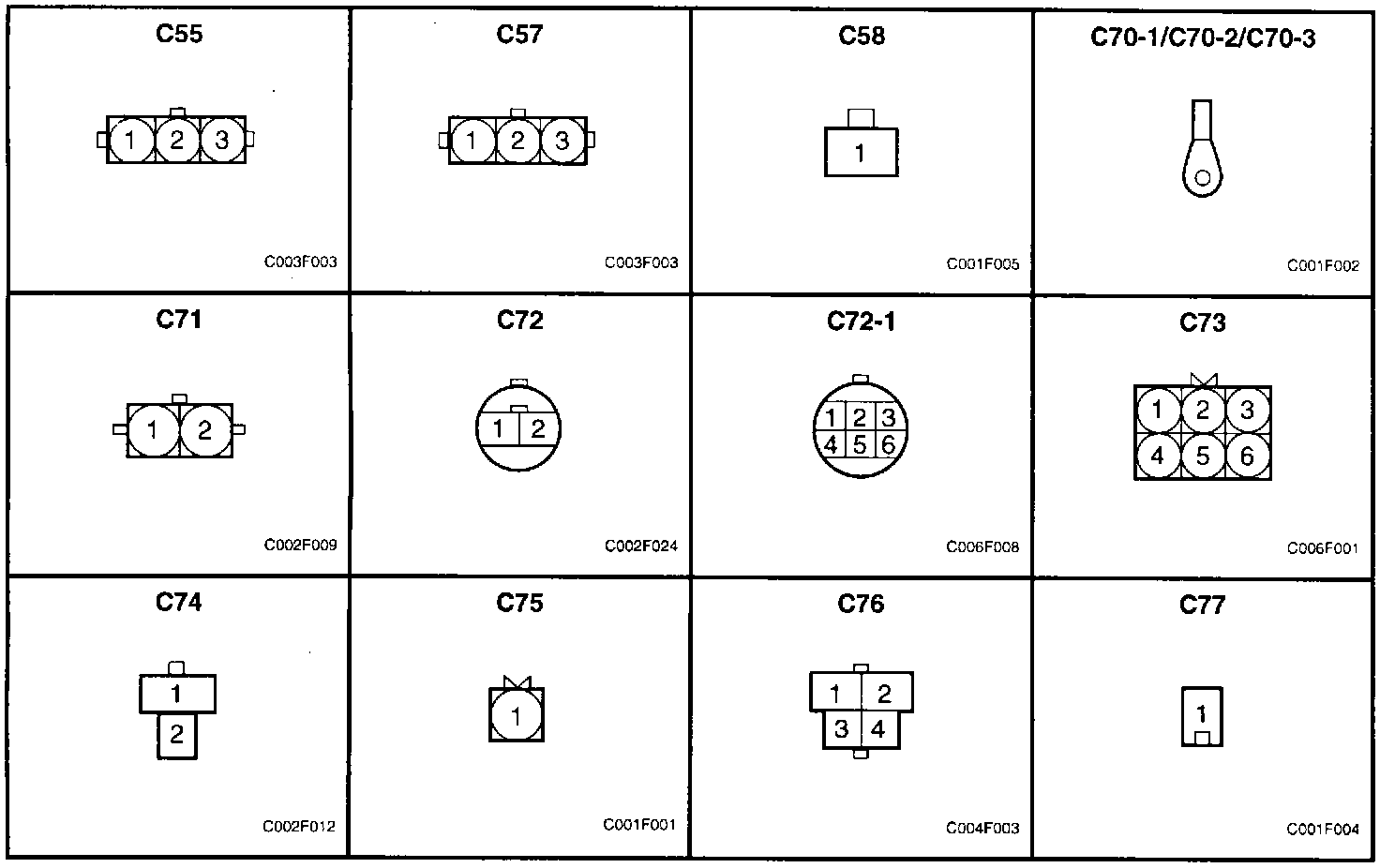

Control Harness (4) - C55 - C77:
