A/T Pressure - Manual Correction

Group: Transaxle
Number: 94-40-009
Date: August, 1994
Model: 1995 Sonata V6

Subject:
ATM Pressure Table Shop Manual Correction

This TSB is to correct the group number for TSB 94-90-009. Please remove TSB 94-90-009 from the Electrical Section of your TSB Manual.

The Automatic Transaxle Standard Oil Pressure Table located in the 1995 Sonata Shop Manual on page 45A-33 contains incorrect end dutch data in column 6. Line 2 (2nd gear) should have no end clutch pressure. Line 4 (3rd gear) should have end clutch pressure.

Correct the Standard Oil Pressure Table, column No. 6 (End clutch pressure), as illustrated in the Standard Oil Pressure Table.

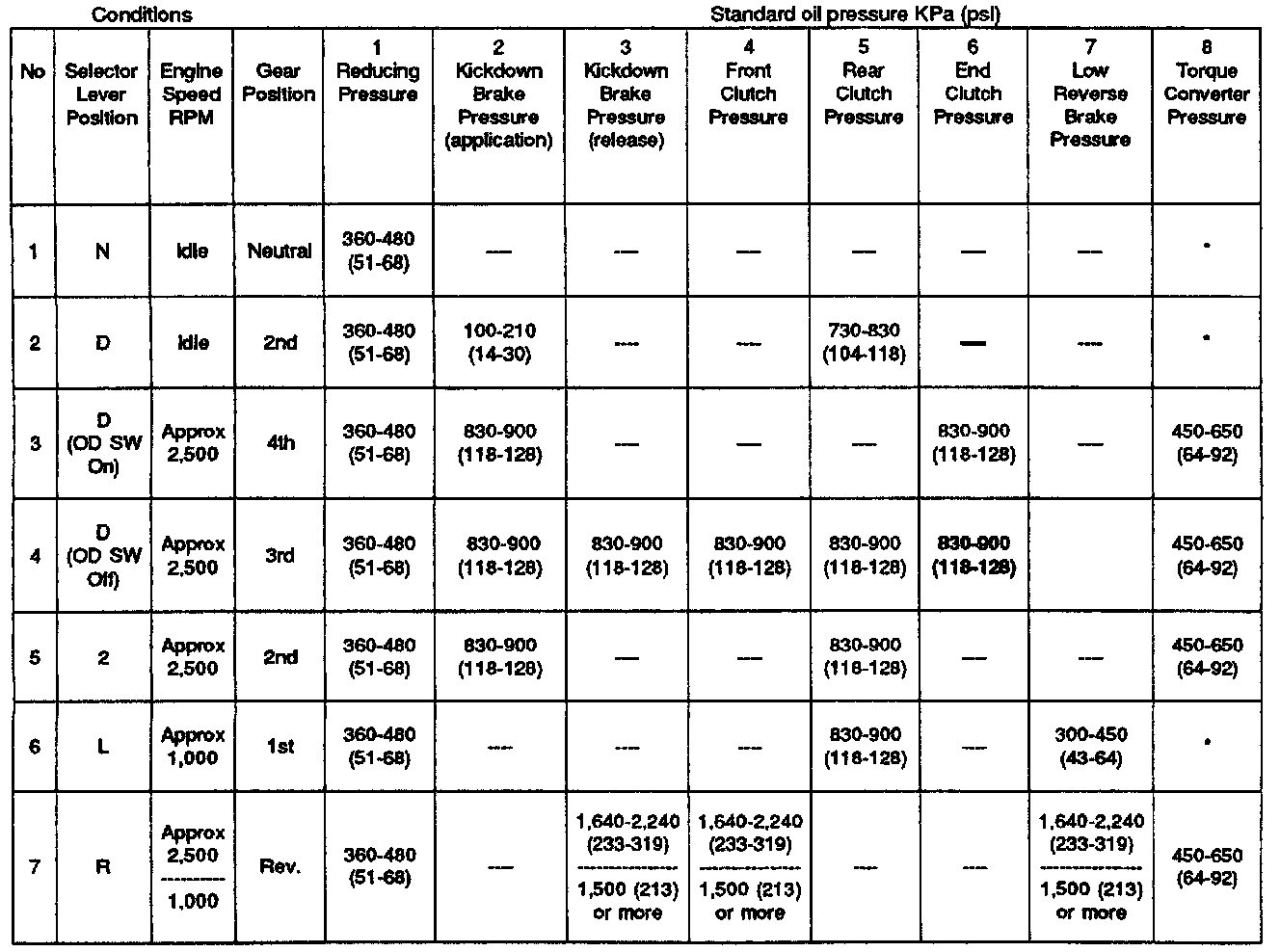

Standard Oil Pressure Table:

Standard Oil Pressure Table
