Differential Bearing Cap - Bolt Torque Specifications

Group: TRANSAXLE

Number: 94-40-005

Date: MAY 1994

Model: 1993-1994 SCOUPE, 1995 SONATA

Subject:
DIFFERENTIAL BEARING CAP BOLT TORQUE SPECIFICATION
(Shop Manual Update)

Please add the following information to page 45-3 of the 1993-1994 Scoupe and 1995 Sonata Shop Manuals.

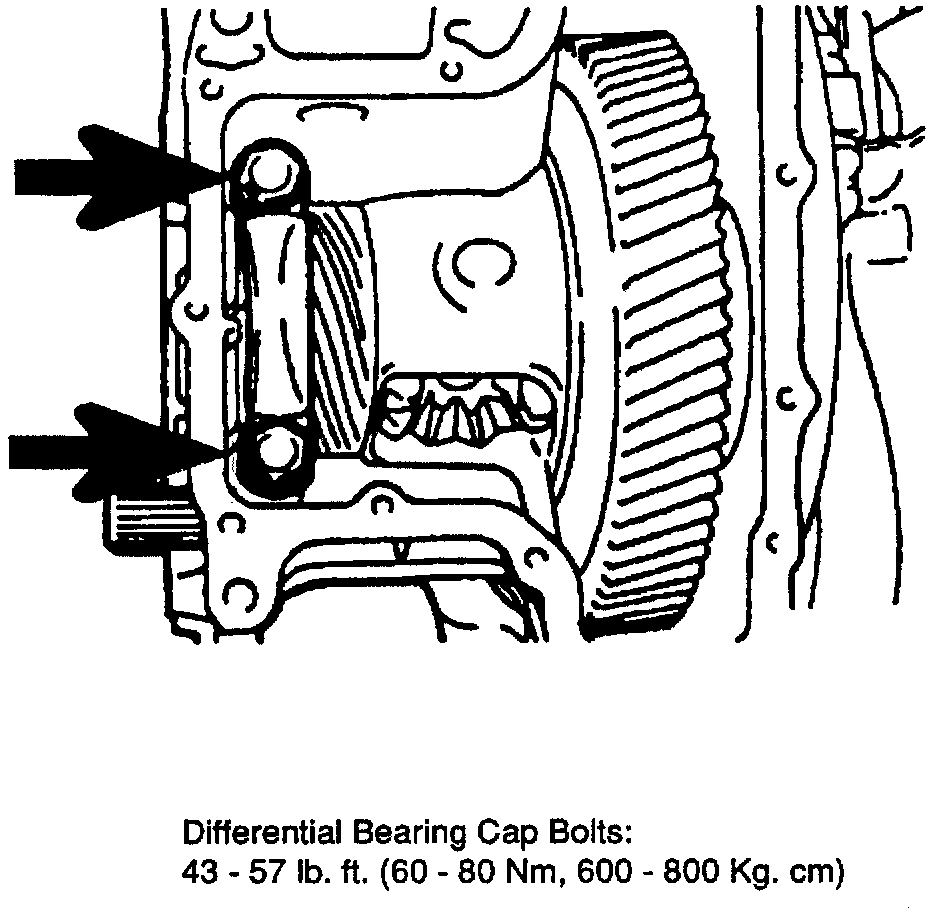

The Differential Bearing Cap Bolt Torque specifications for the A4AFI and F4A33 automatic transaxles is shown.
