Home >> Hyundai >> 1995 >> Sonata L4-2.0L >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G05

G05

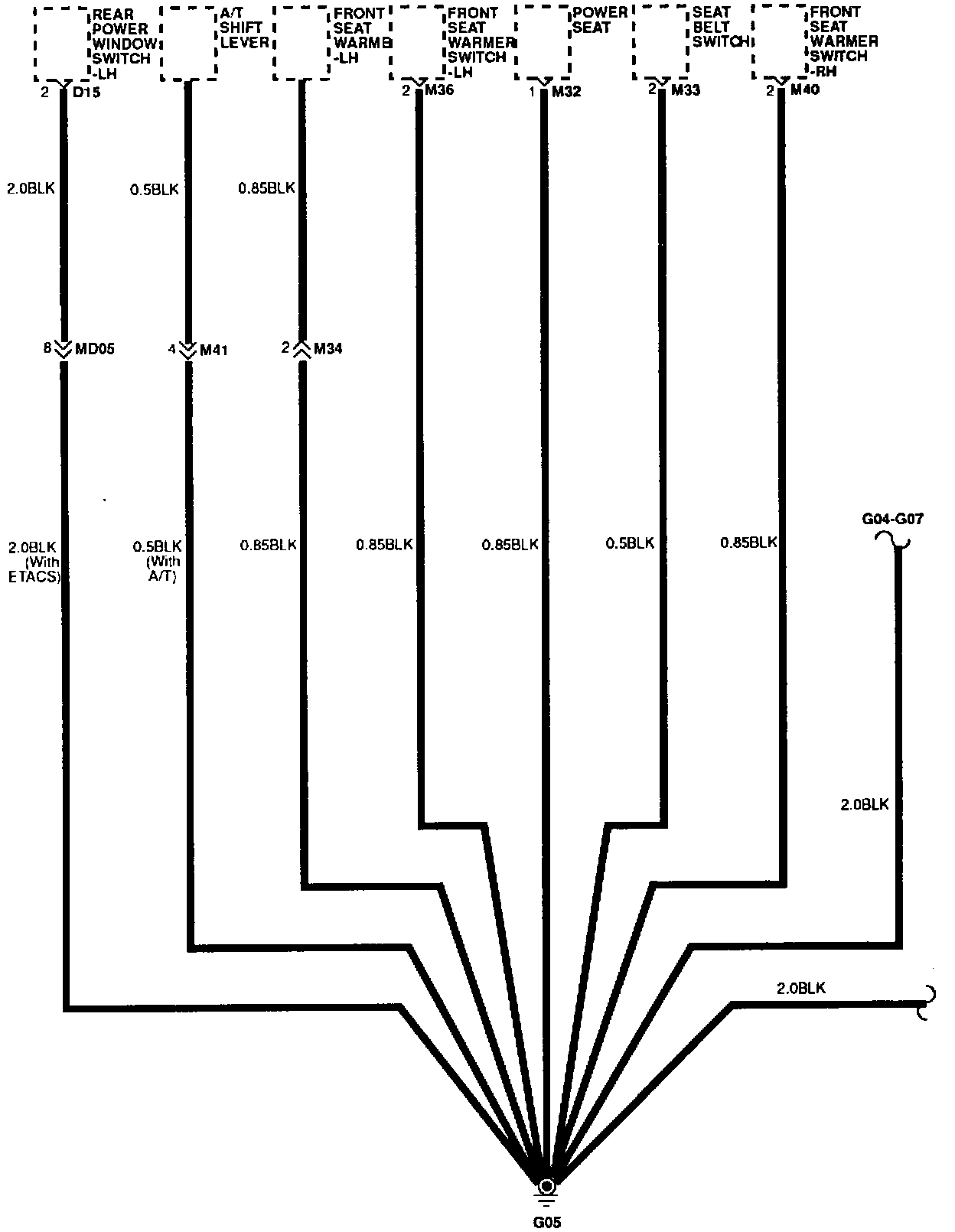

Ground Distribution (G05):
