Home
>>
Hyundai
>>
1995
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution
>>
G09-1
G09-1

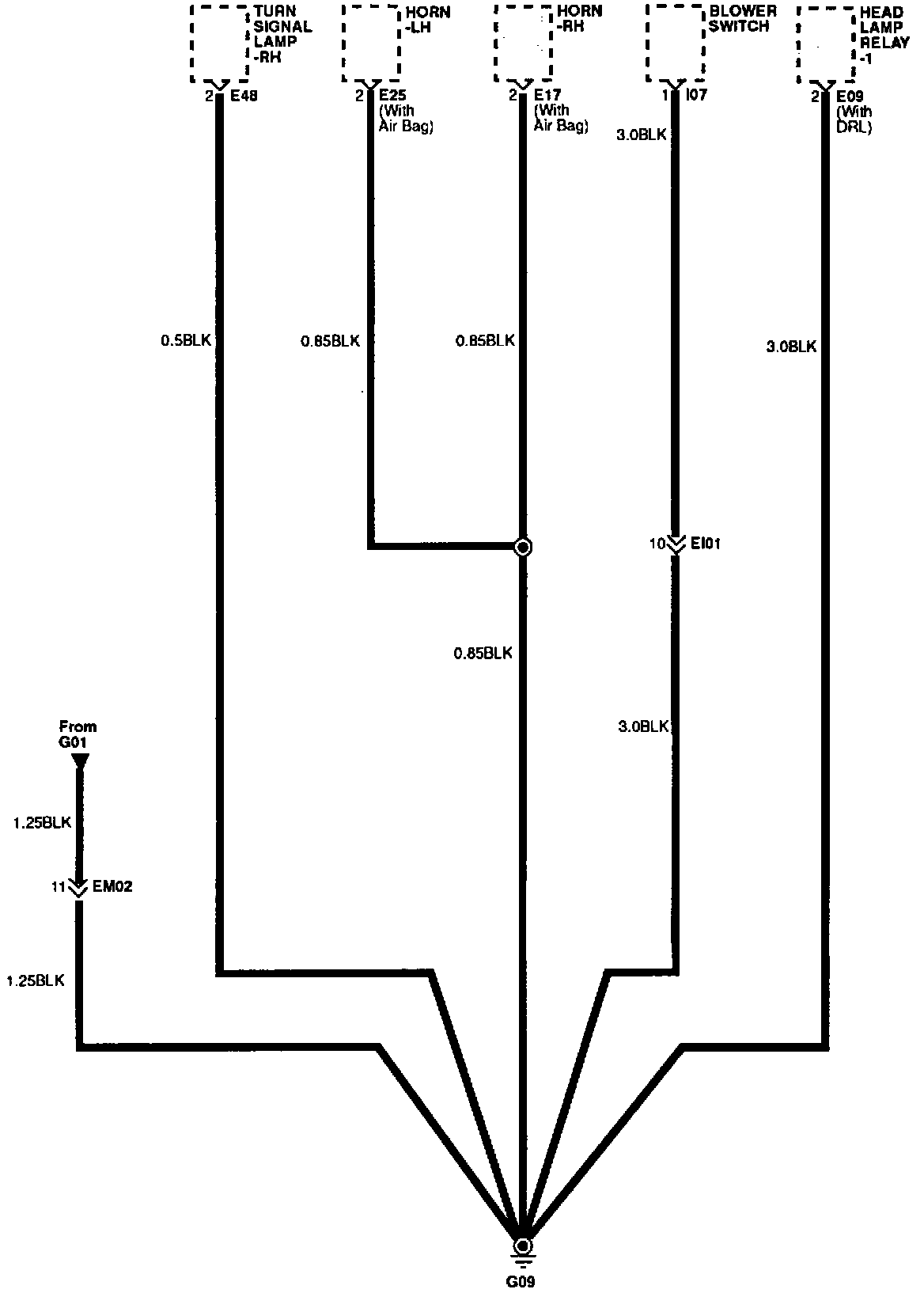

Ground Distribution (G09)-1:
