Home >> Hyundai >> 1995 >> Sonata L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G04

G04

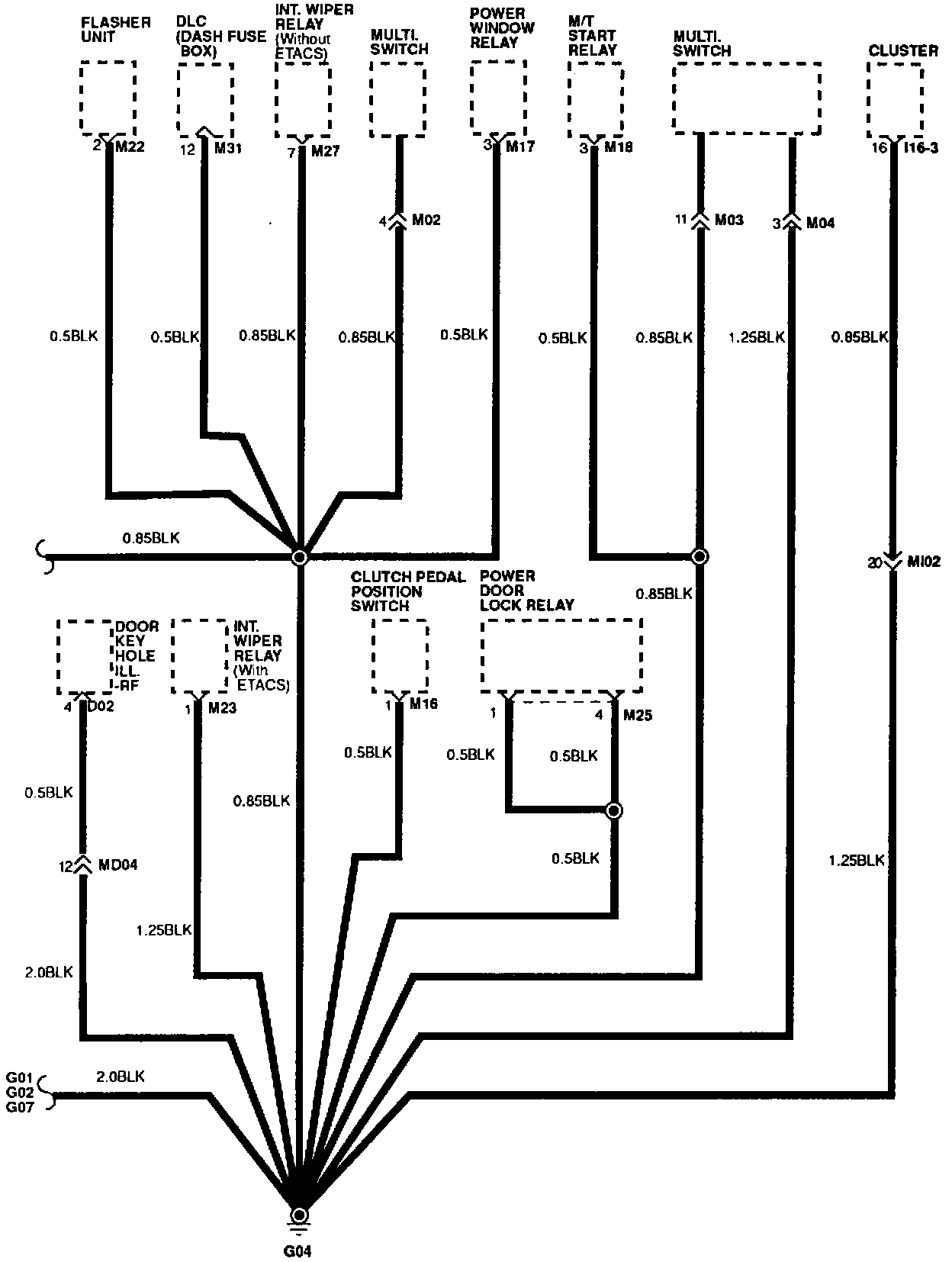

Ground Distribution (G04):
