Home >> Hyundai >> 1995 >> Sonata L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G02

G02

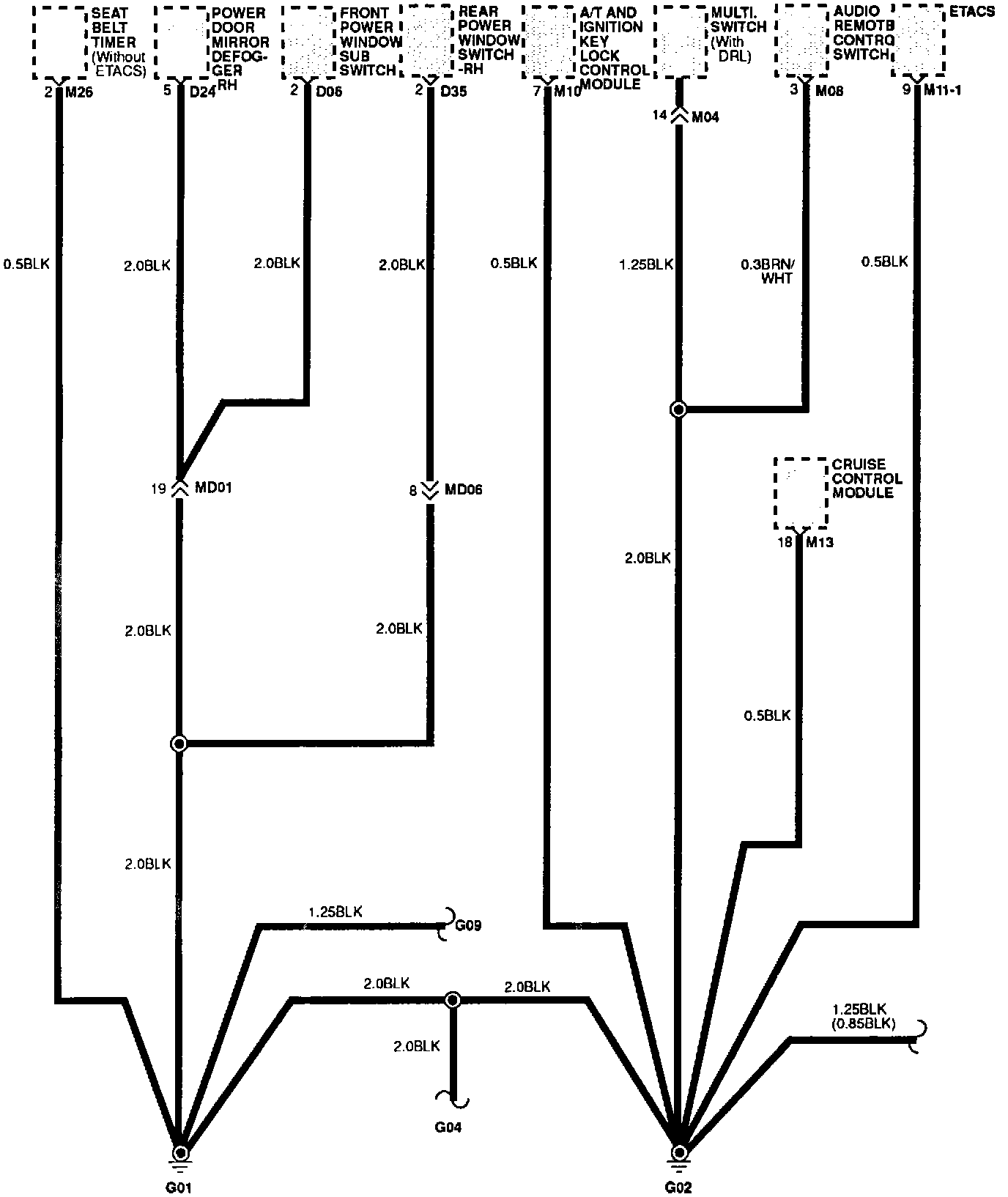

Ground Distribution (G01/G02):
