Home
>>
Hyundai
>>
1995
>>
Sonata L4-2.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Air Bag Systems
>>
System Diagram
System Diagram

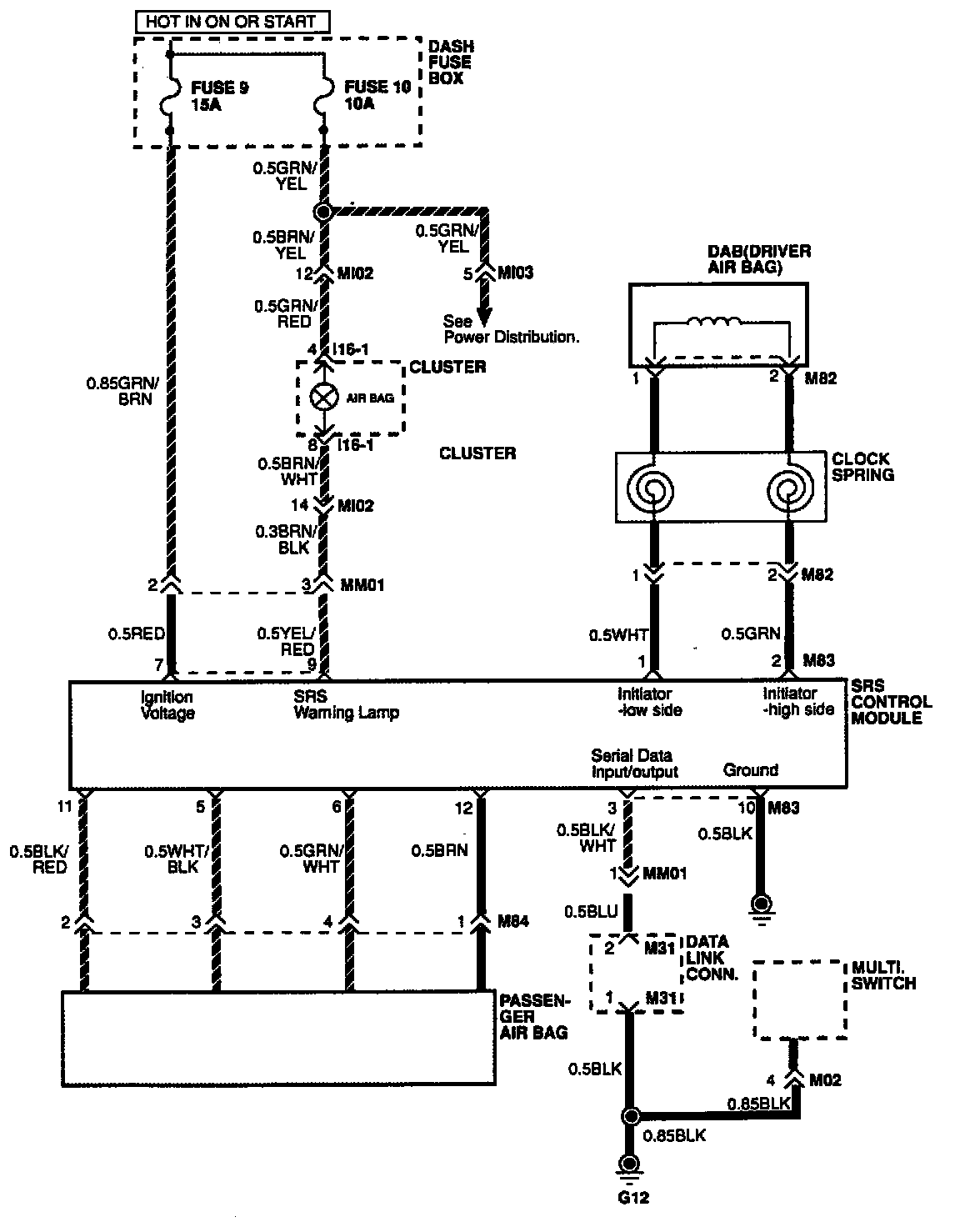

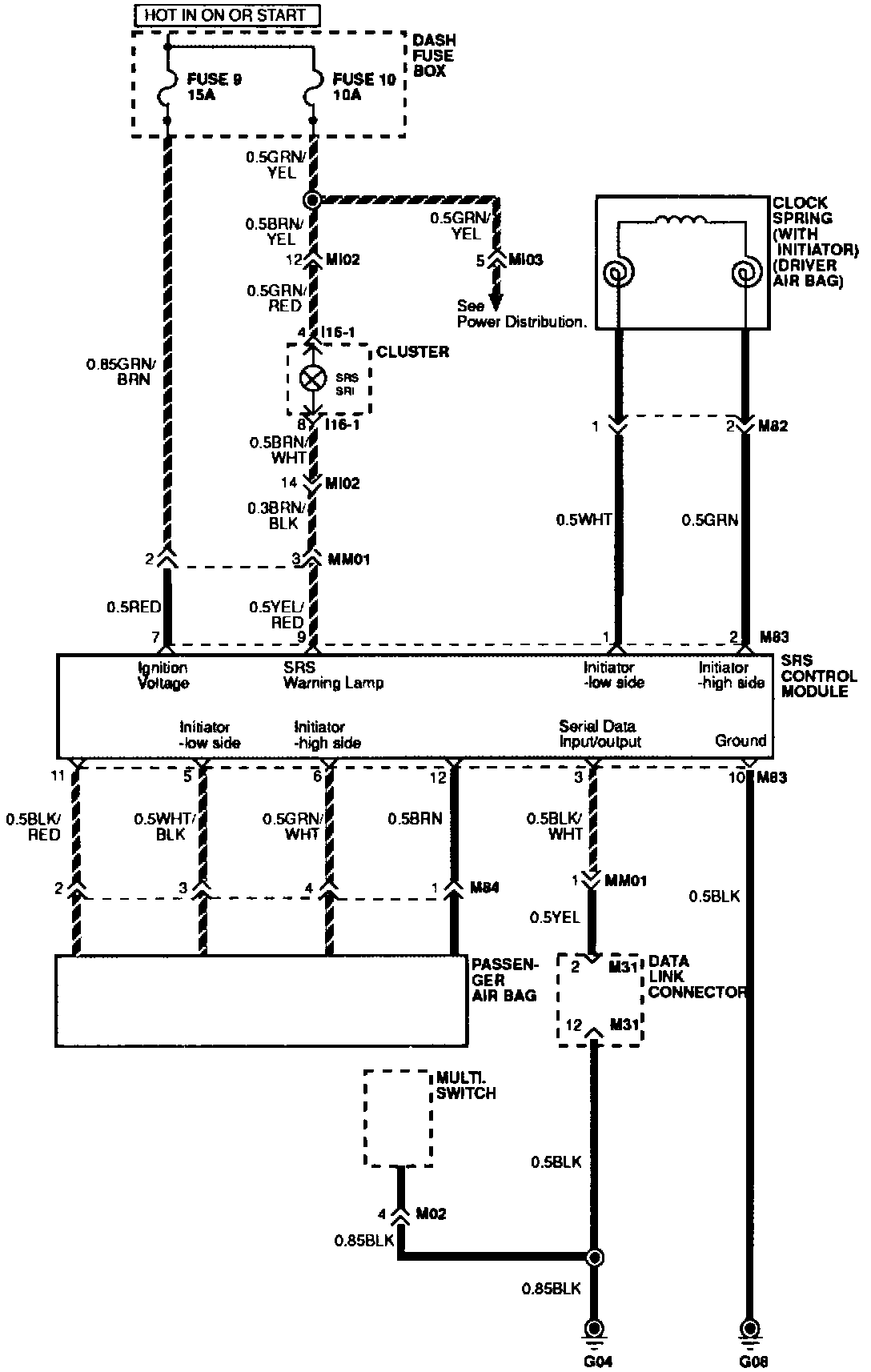

SRS Air Bag System:
