Scoupe L4-1468cc 1.5L SOHC (12 VALVE)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Canister Purge Control Valve
>>
Testing and Inspection
>>
System Test
System Test

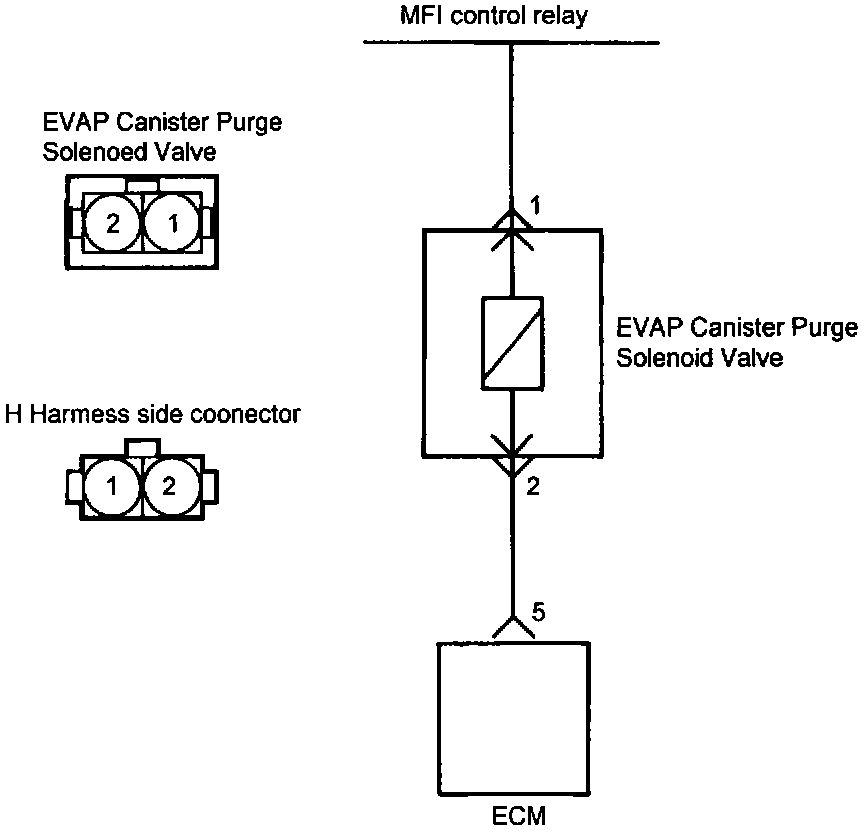

CIRCUIT DIAGRAM

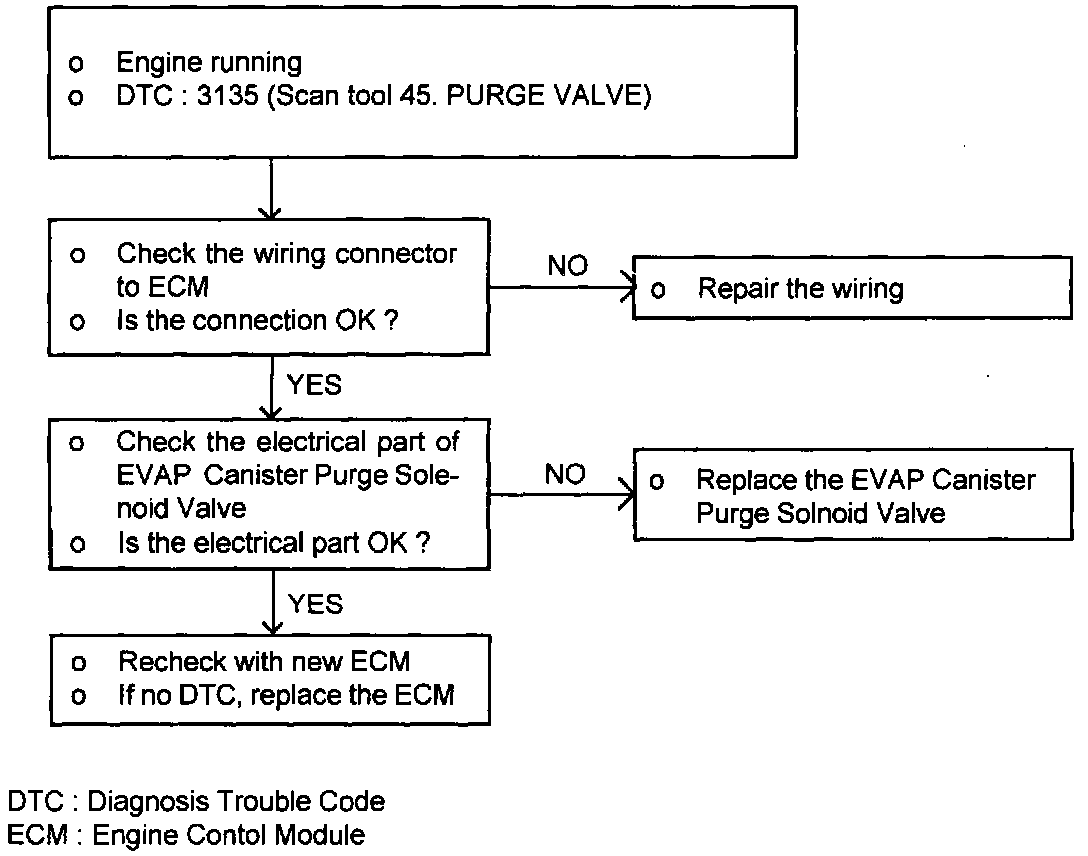

TROUBLESHOOTING PROCEDURES

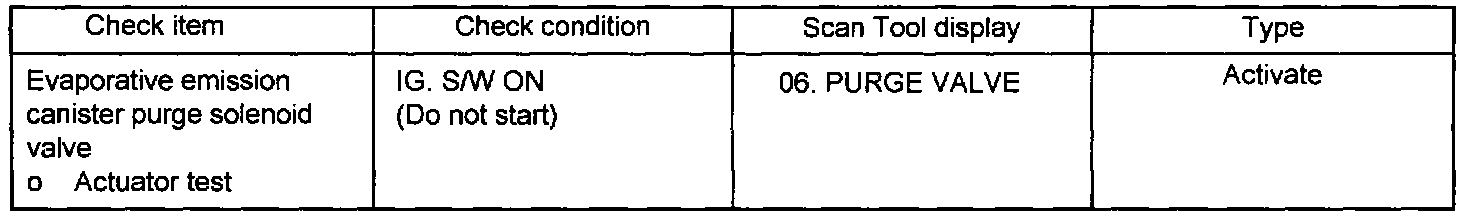

USING SCAN TOOL TESTER

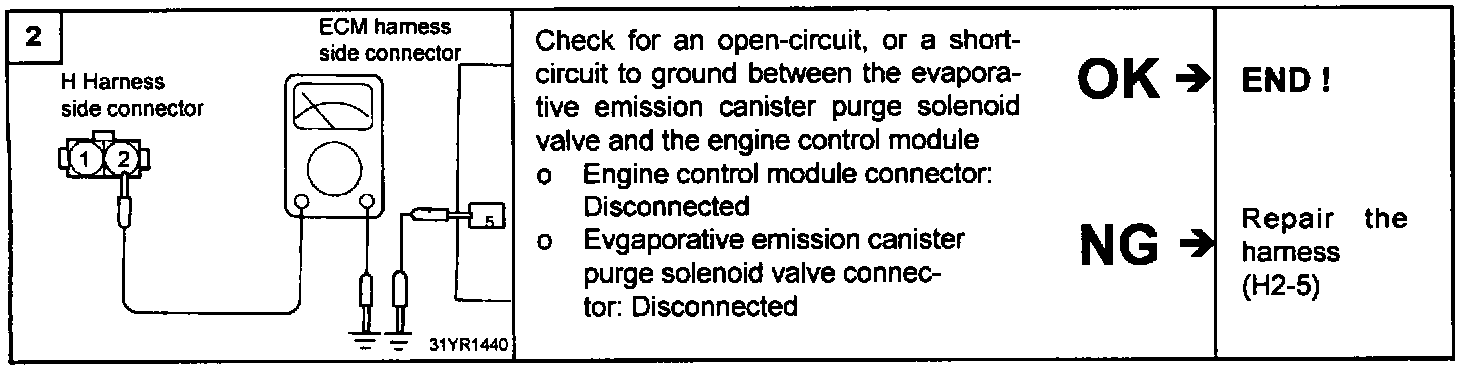

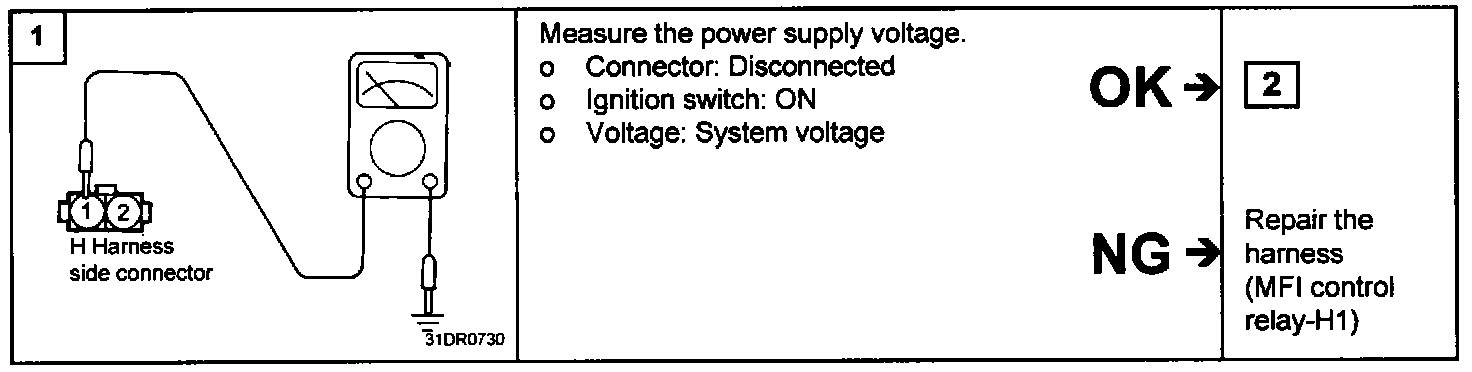

HARNESS INSPECTION
