Control Harness

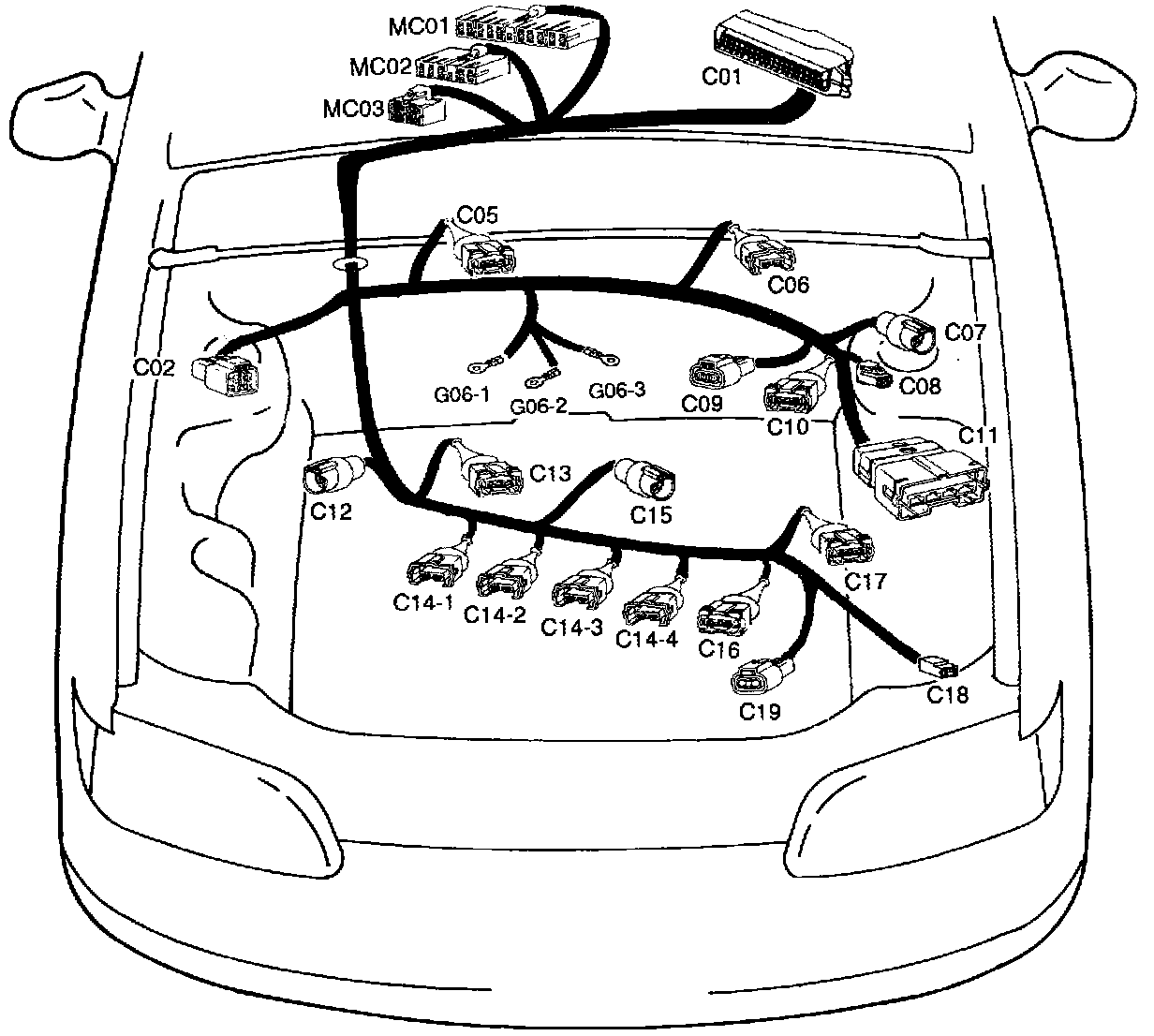

Control Wiring Harness (N/A):

C01 ECM
C02 Wiper motor
C05 Fuel pump checker
C06 Purge control valve
C07 Starter solenoid
C08 Radio noise condenser
C09 Ignition coil
C10 Throttle position sensor
C11 Mass air flow sensor
C12 A/C compressor
C13 Knock sensor
C14-1 Injector #1
C14-2 Injector #2
C14-3 Injector #3
C14-4 Injector #4
C15 Idle speed adjust
C16 CMP sensor
C17 Crankshaft position sensor
C18 Oil pressure switch
C19 Heated oxygen sensor
