Hyundai
>>
1995
>>
Scoupe L4-1468cc 1.5L SOHC (12 VALVE) Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Powertrain Management
>>
Ignition System
Ignition System

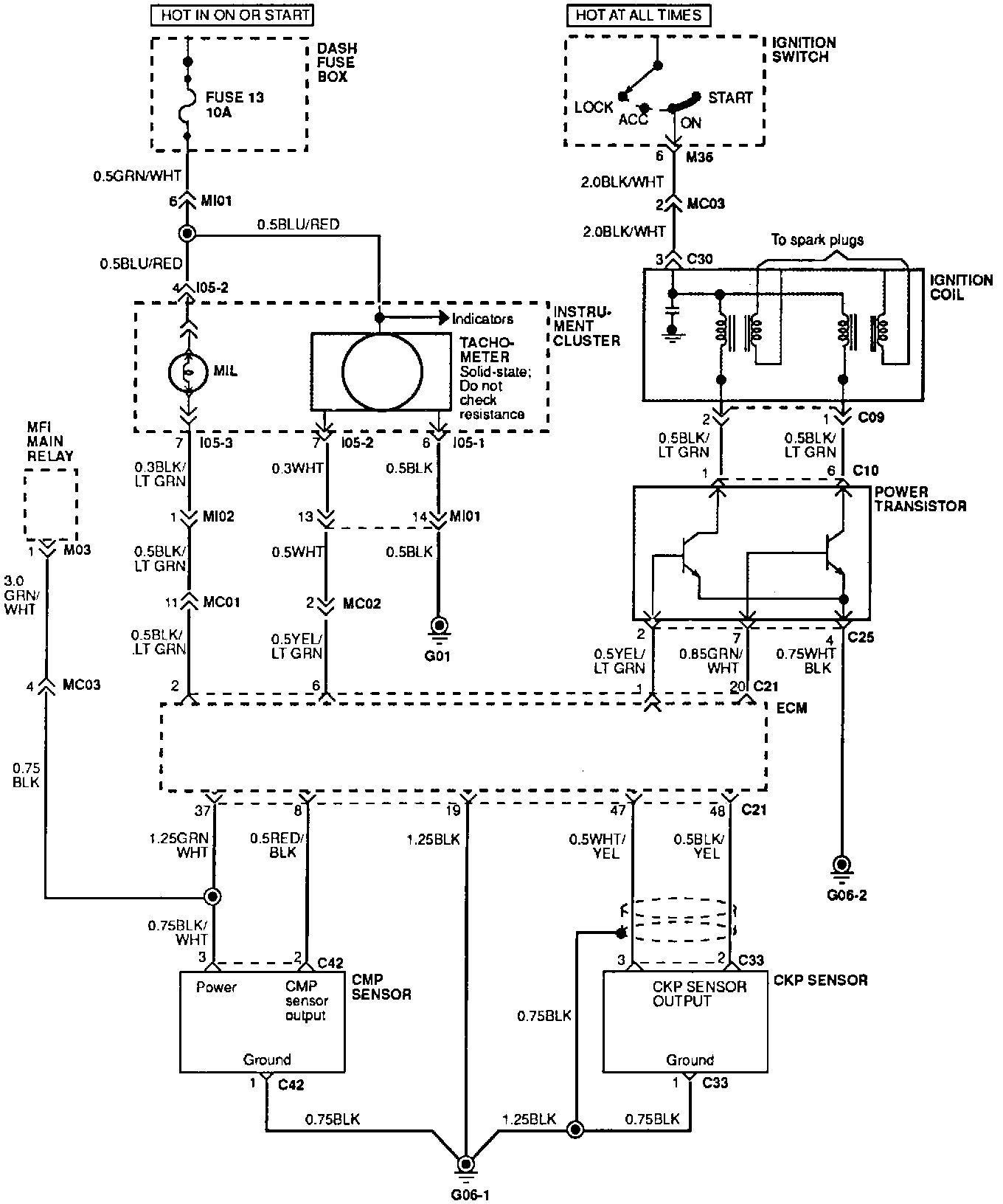

Ignition System (T/C):
