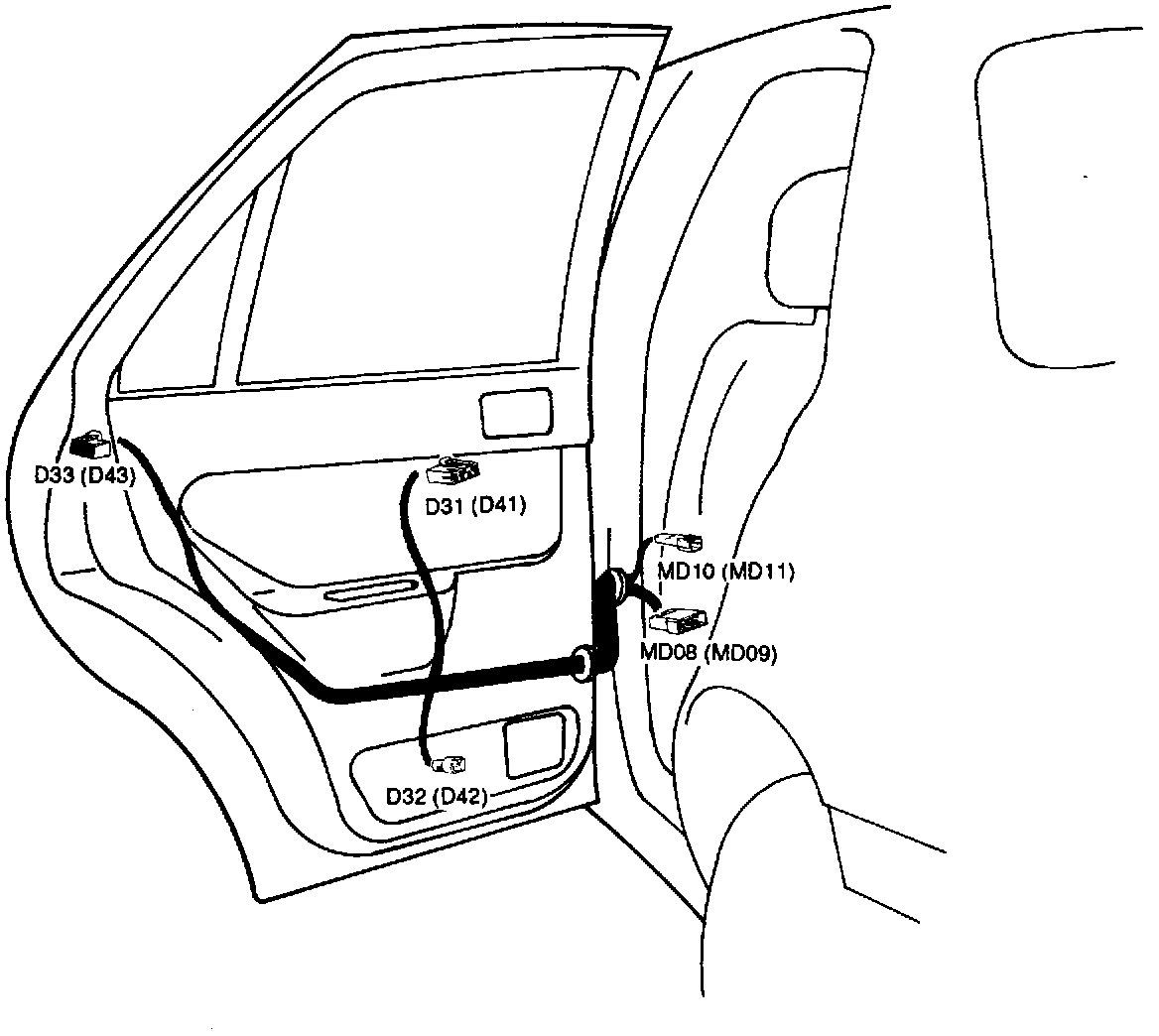

Door Harness (Rear)

Rear Door Harness:

D31 (D41) Power window switch
D32 (D42) Power window motor
D33 (D43) Central door locking actuator
MD08 (MD09) Connection with MAIN wiring harness
MD10 (MD11) Connection with MAIN wiring harness
