DTC 56

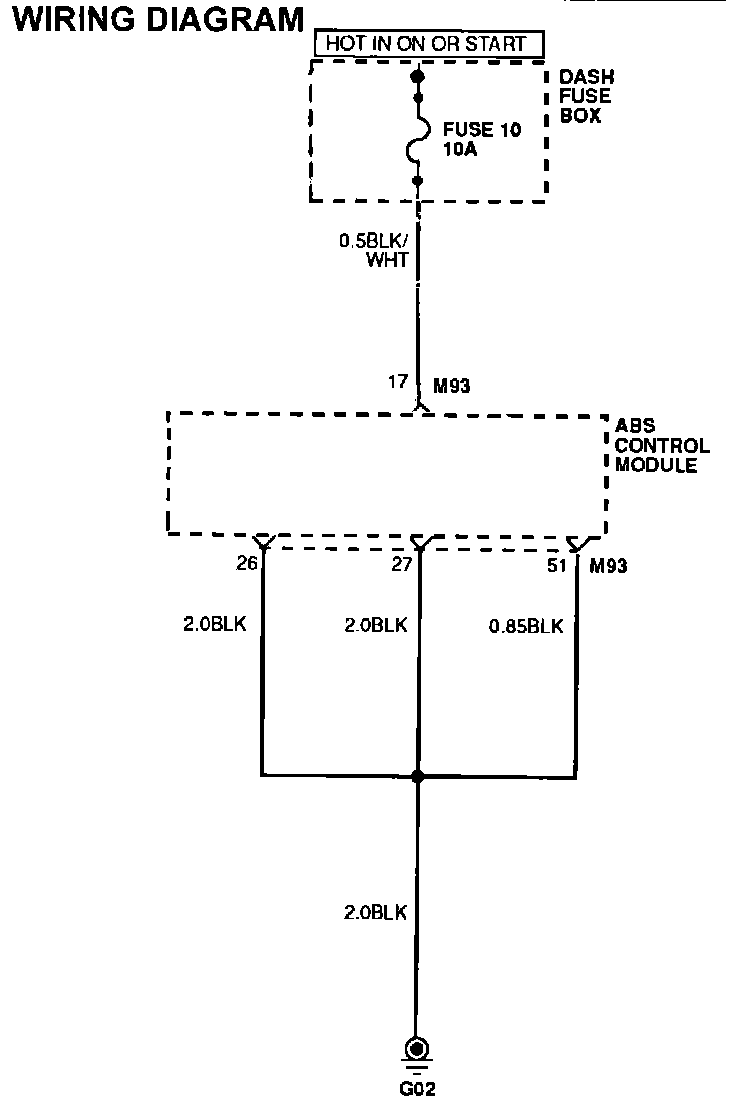

CIRCUIT INSPECTION POWER SOURCE VOLTAGE

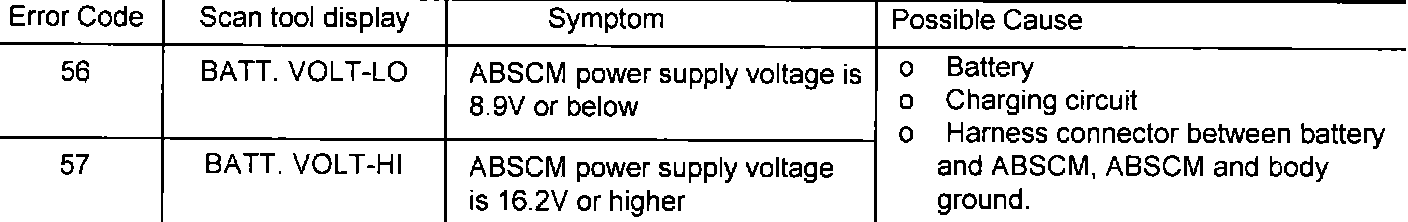

Detection of battery voltage out of the function range for the system.










INSPECTION PROCEDURE

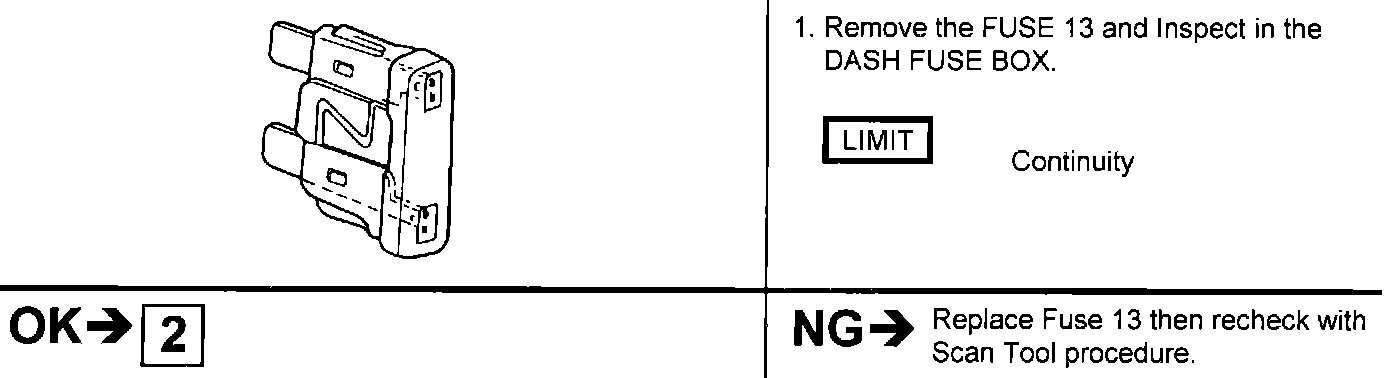

1. Check the ABSCM fuse

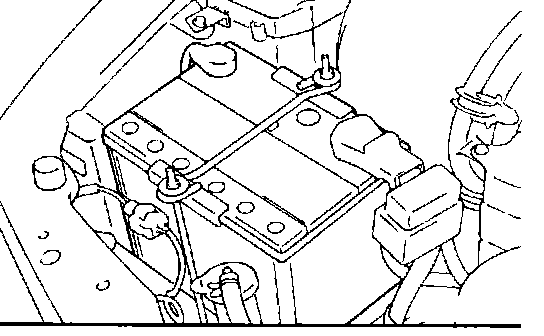

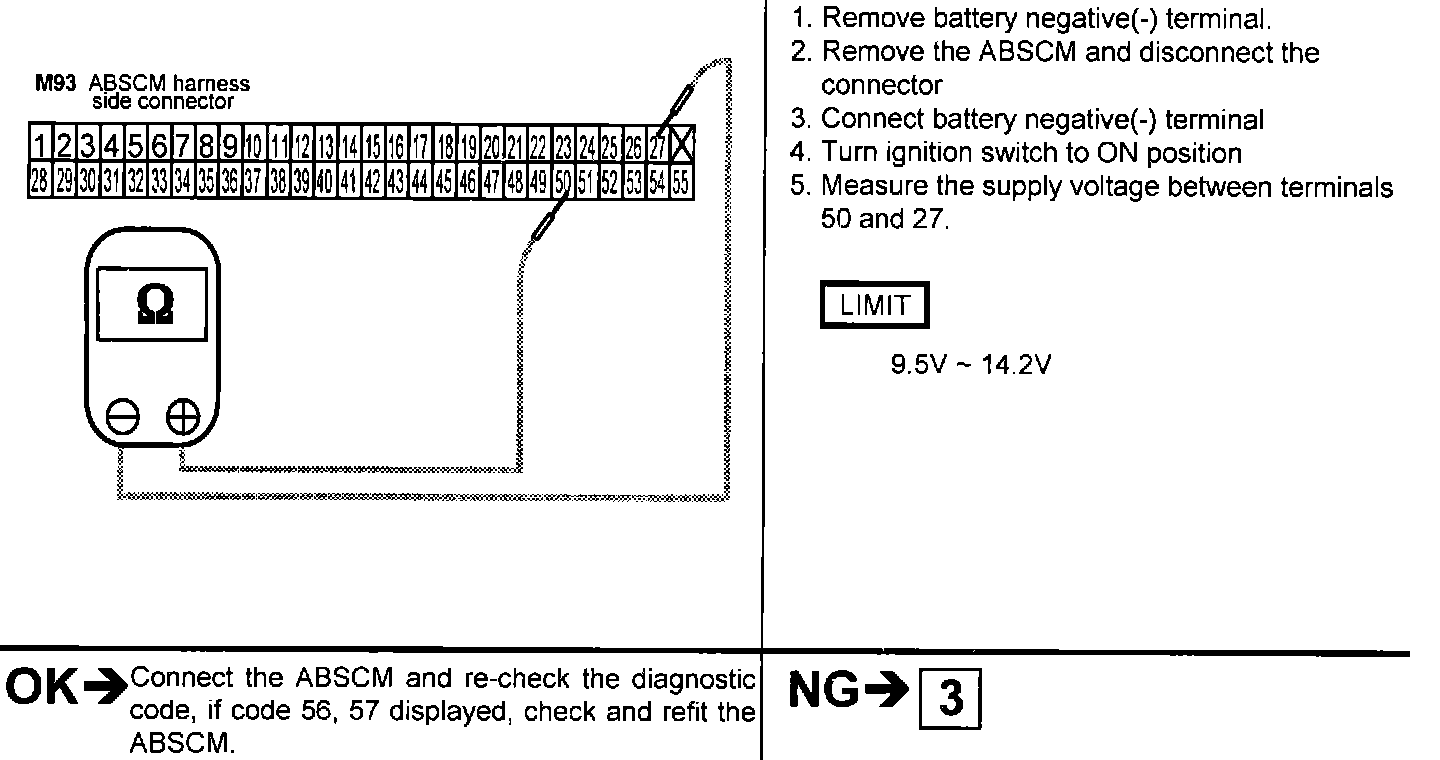

2. Check Voltage between Battery (+) and GND of ABSCM connector

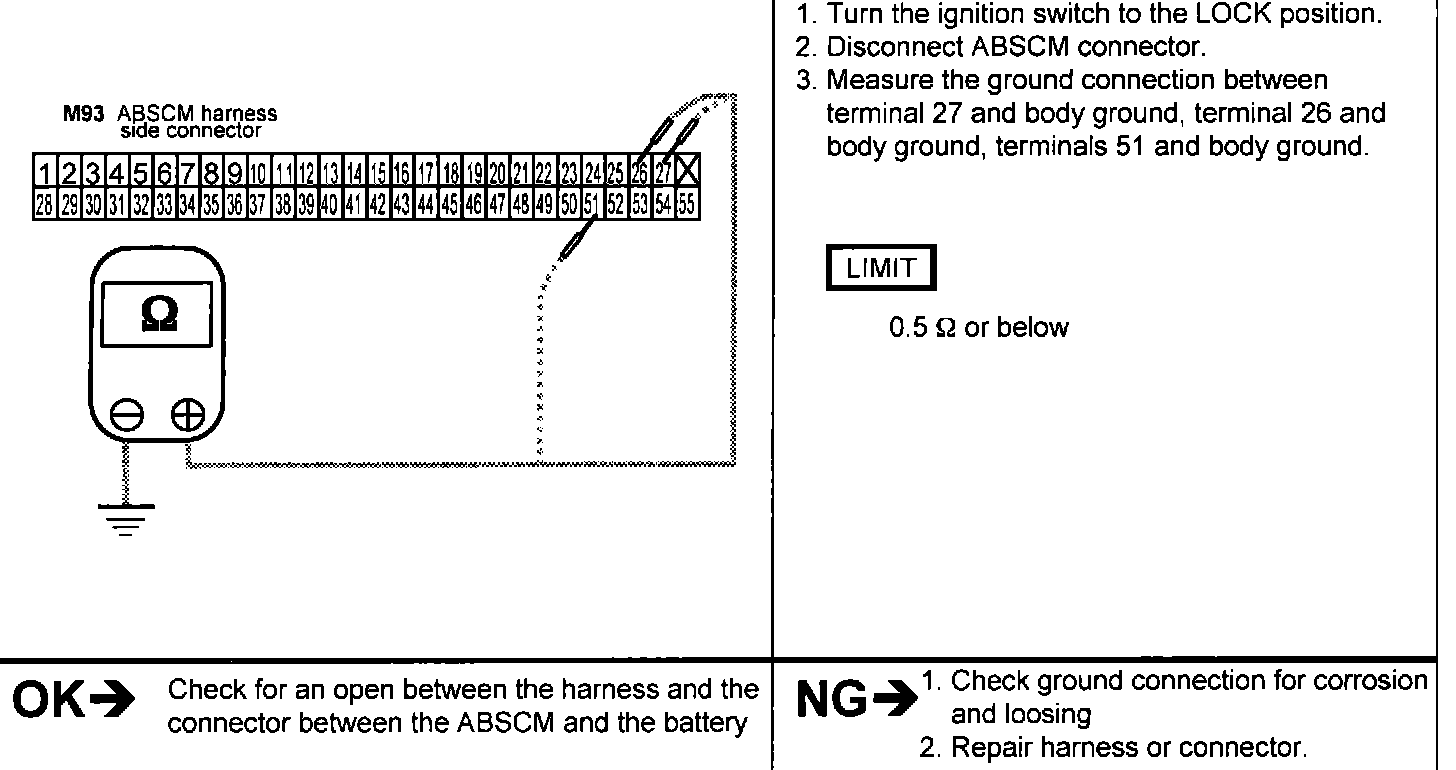

3. Check Continuity between the ABSCM connector GND and Body GND
