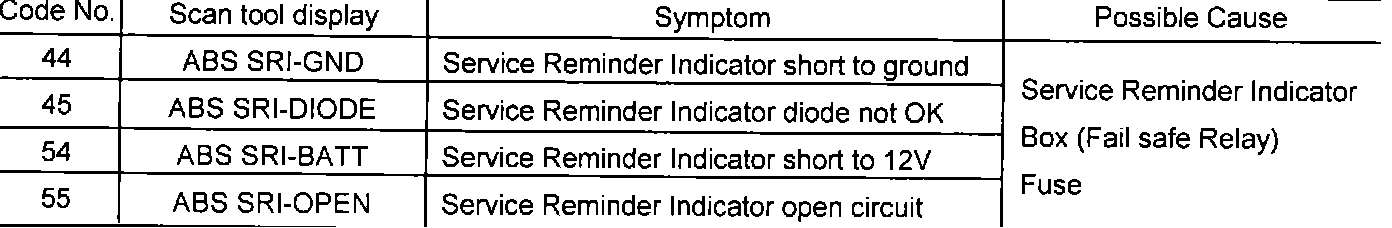

DTC 45

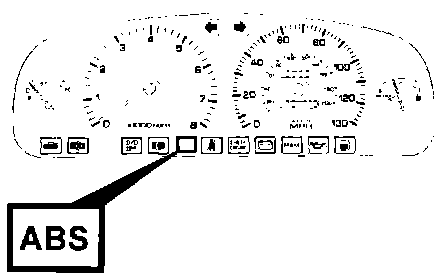

ABS SRI (Service Reminder Indicator) Circuit.
If the trouble occurs, ABSCM lights the ABS-SRI while at the same time terminating ABS operation. At this time, the ABSCM records a diagnostic code in memory.

If the ABSCM detects a fault in the Anti-Lock Brake System, the ABSCM turns the ABS SRI on and disables the ABS. At the same time a trouble code is stored in the ABSCM memory.

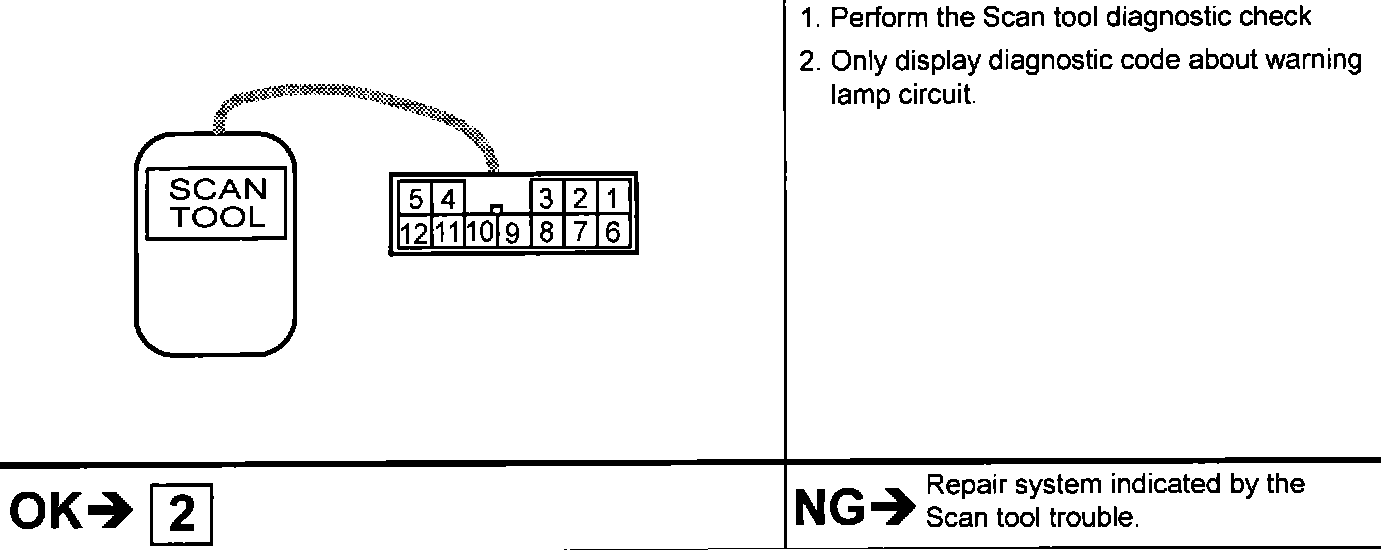

INSPECTION PROCEDURE

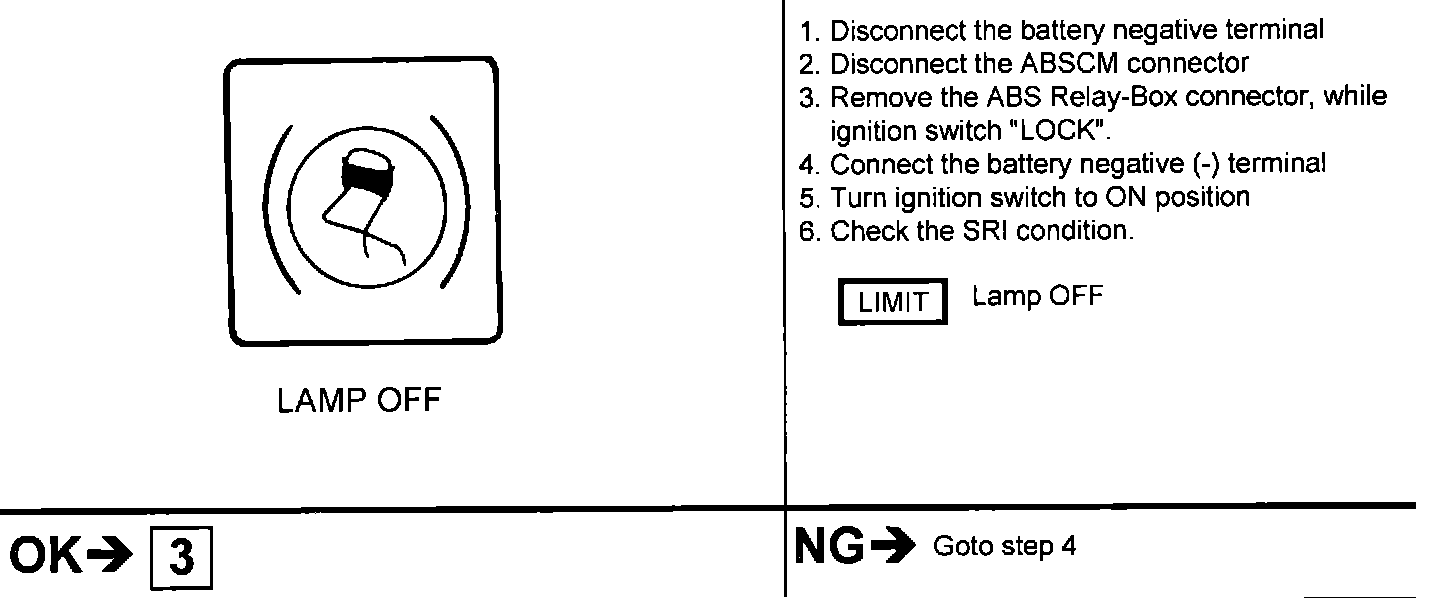

2. Check the ABS Service Reminder Indicator circuit without Relay-Box

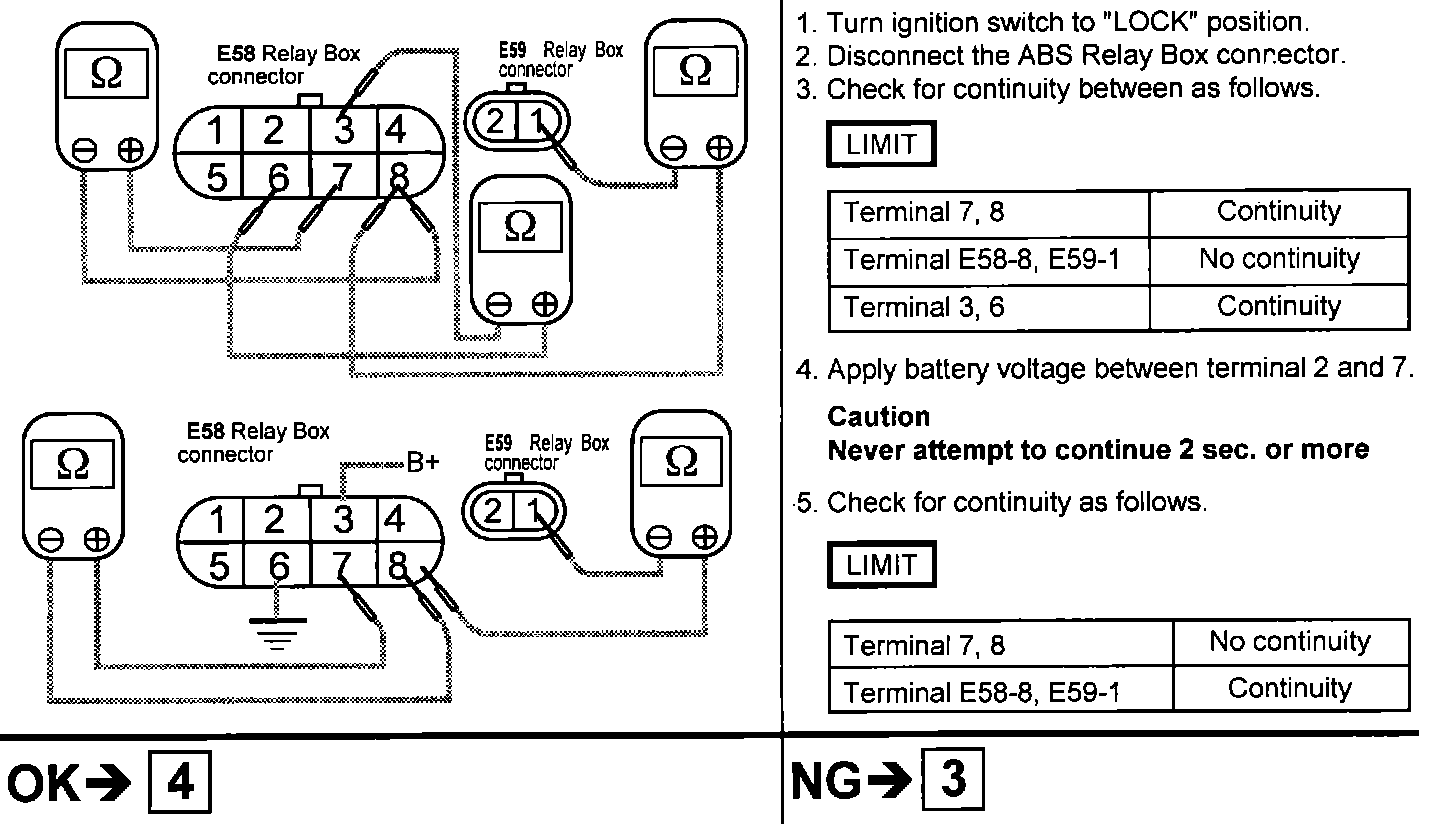

3. Check the ABS Relay-Box

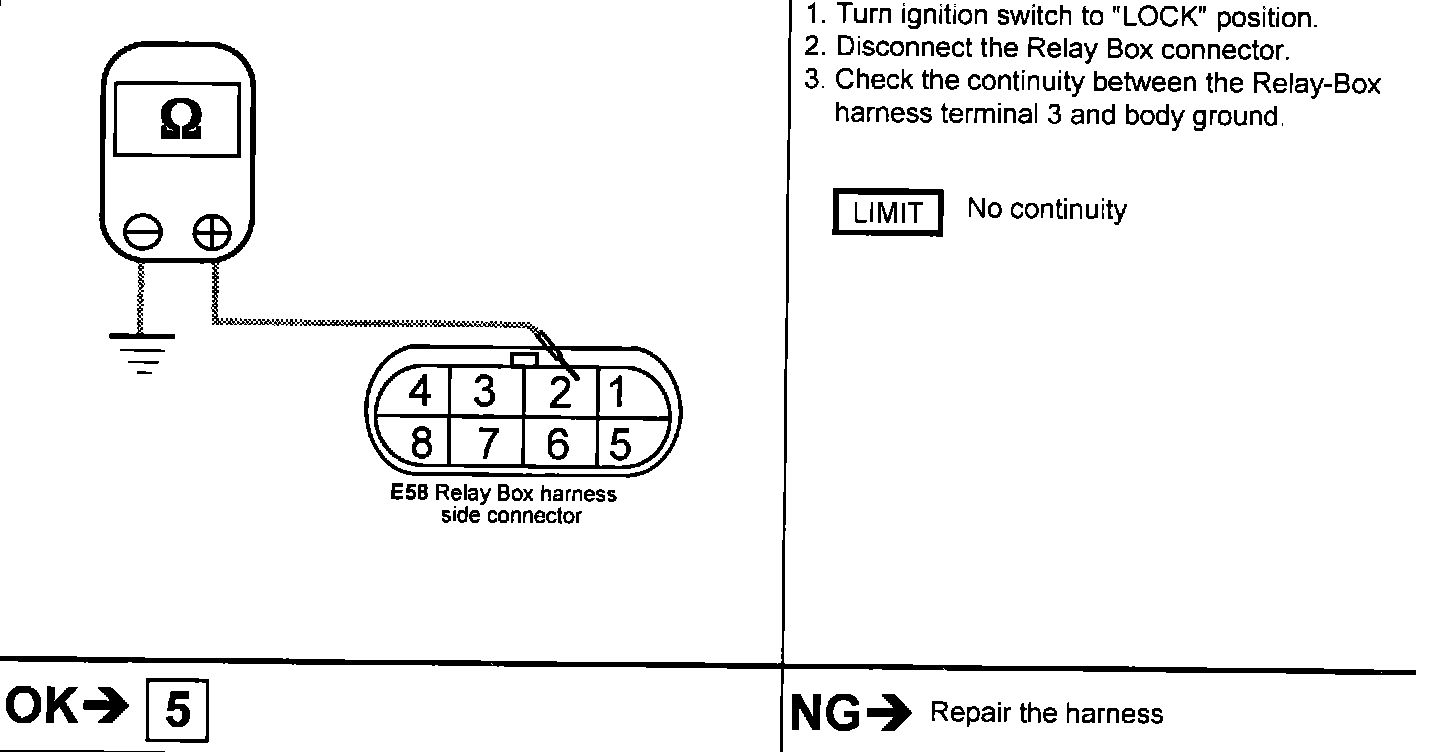

4. Check the ABS Relay-Box harness

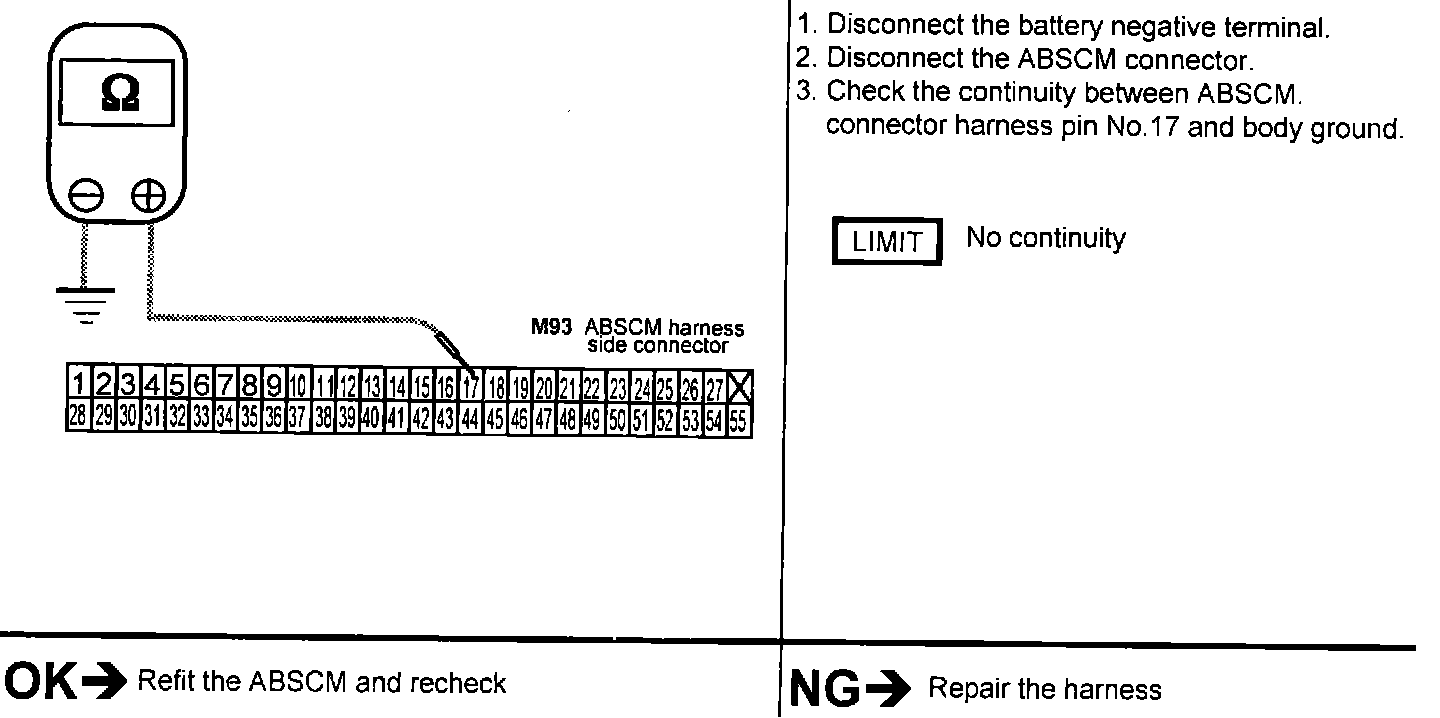

5. Check the ABSCM connector harness

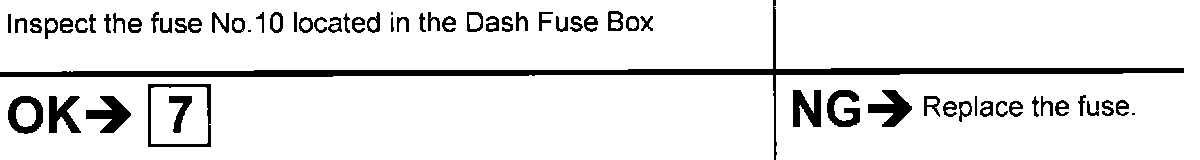

6. Check the fuse

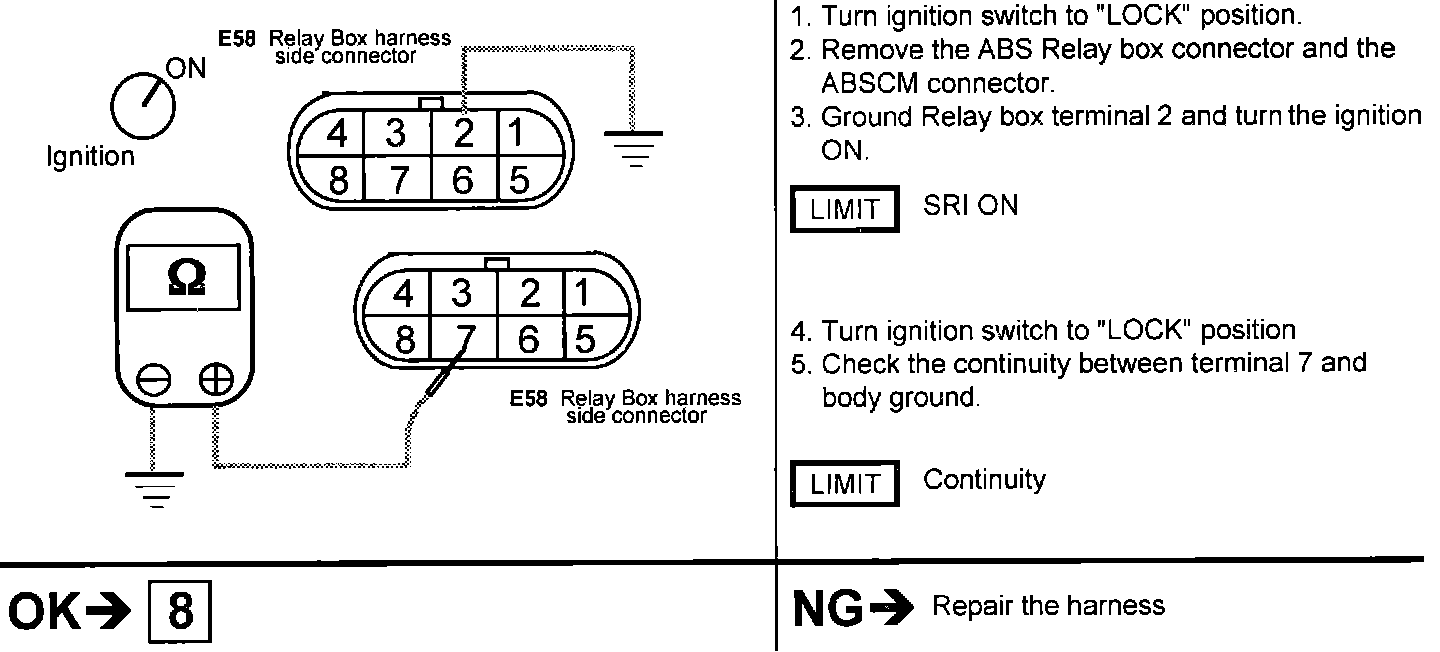

7. Check the ABS SRI Circuit






8. Check the ABS-Relay Box (Fail safe relay)

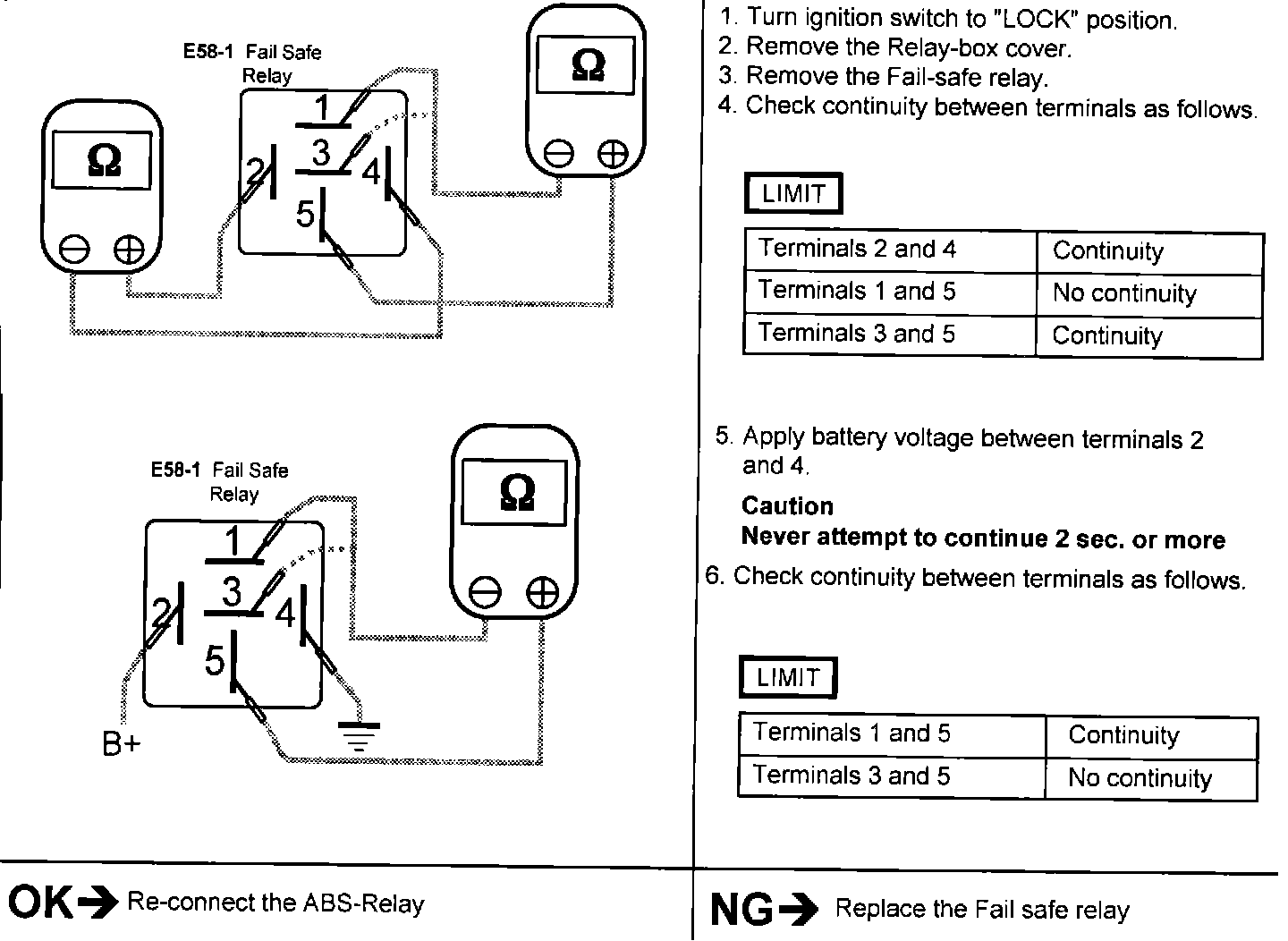

9. Check the Fail safe relay
