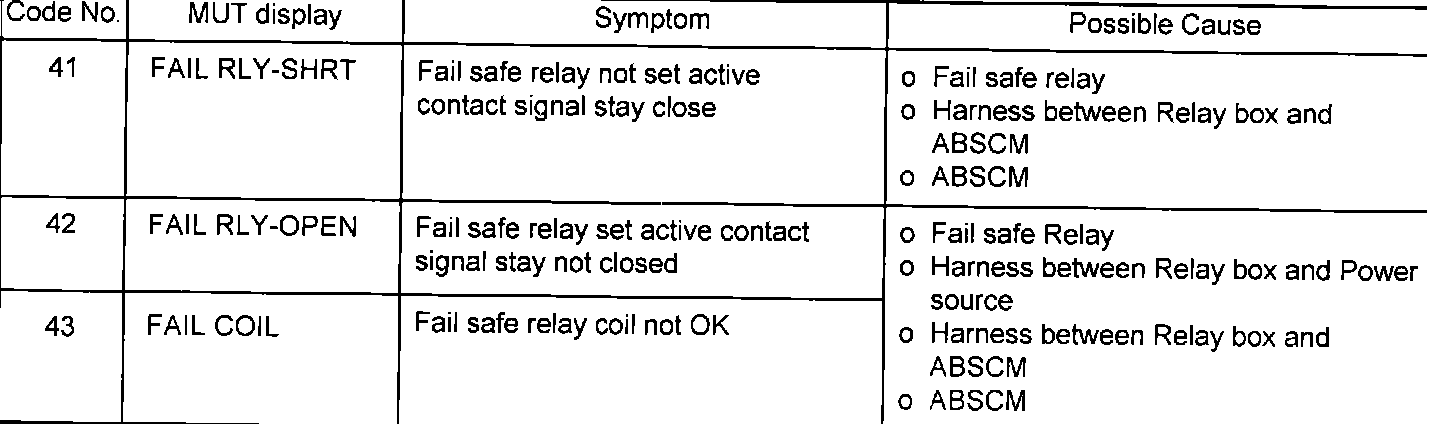

DTC 41

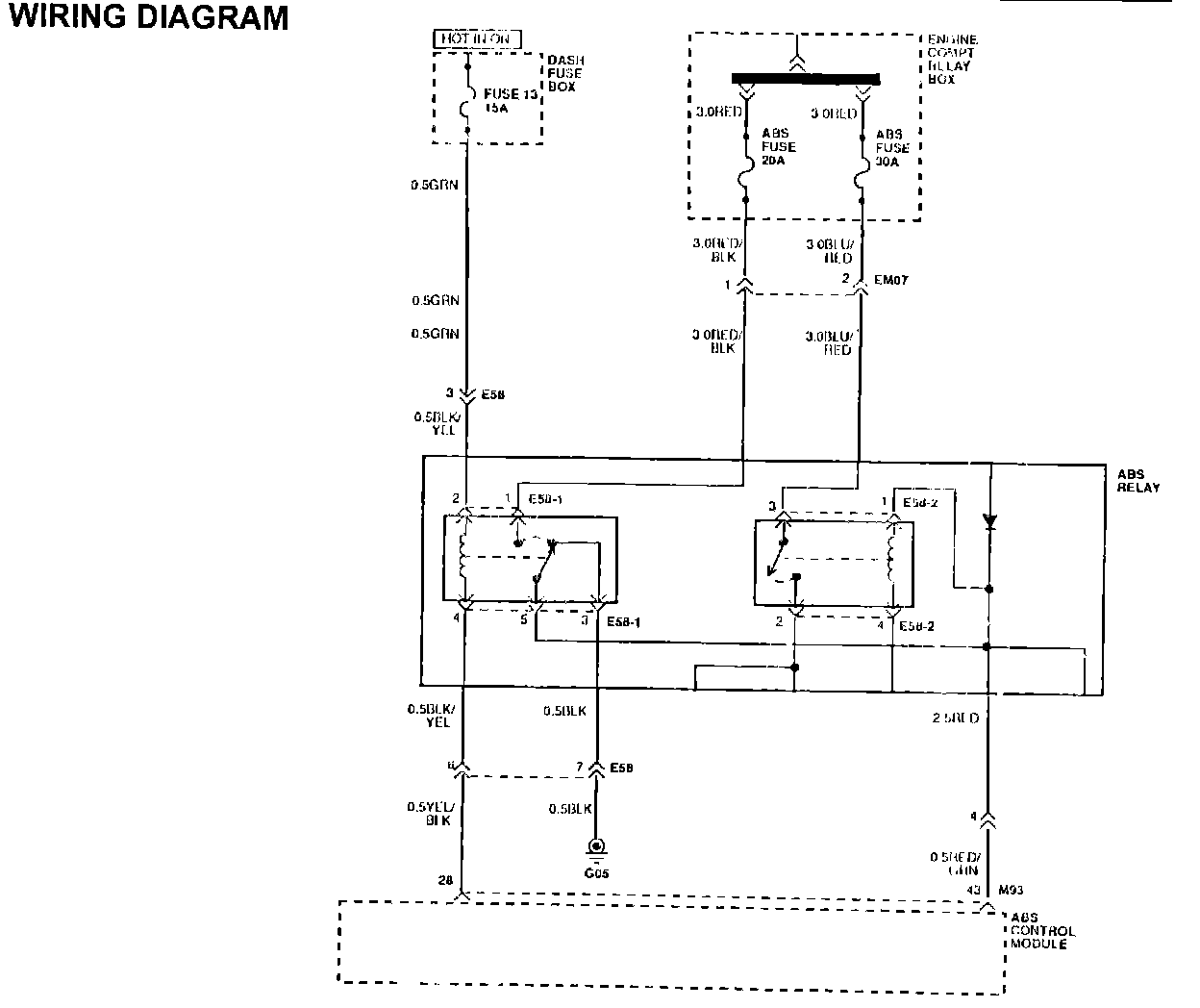

ABS RELAY BOX CIRCUIT (FAIL SAFE RELAY)
Fail safe relay supplies battery voltage to the modulator after the ignition switch is turned to the ON position, the relay goes on, if the initial check is good.

If a problem occurs in the ABS system, the ABSCM disables the relay and the ABS is disabled.











INSPECTION PROCEDURE

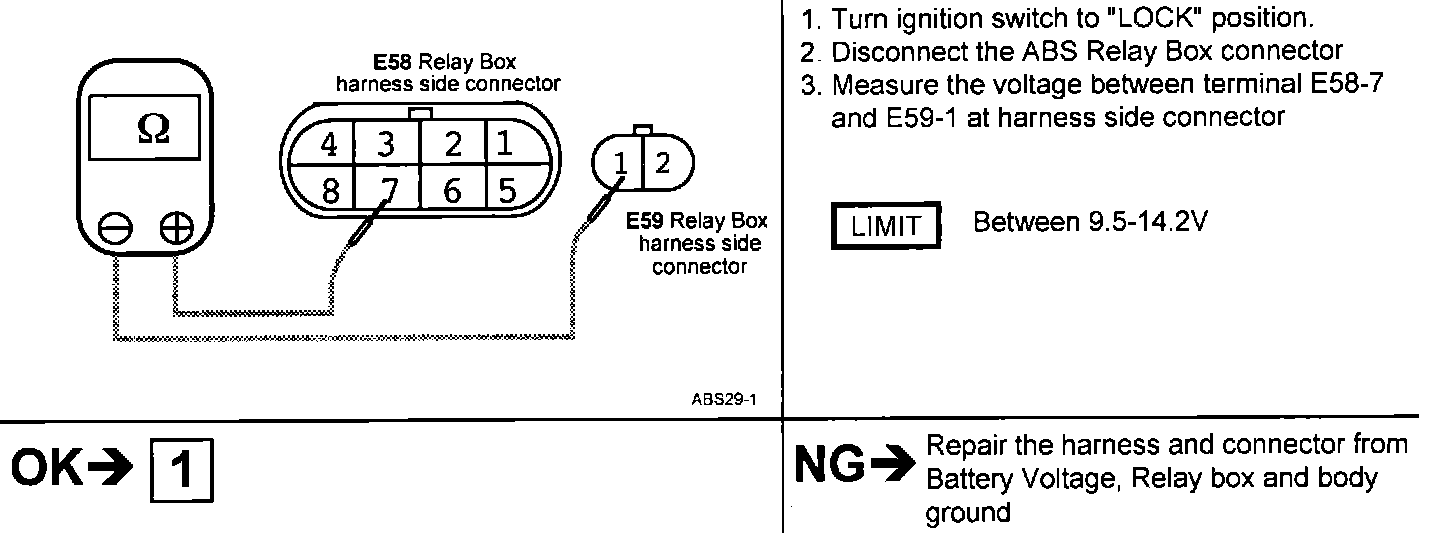

1. Check ABS power supply.

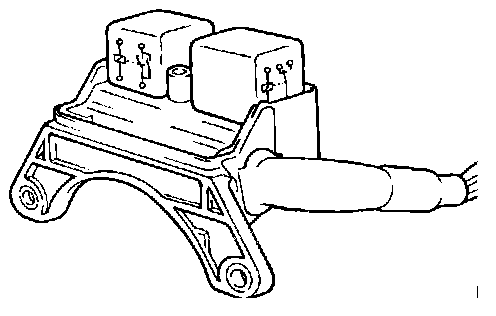

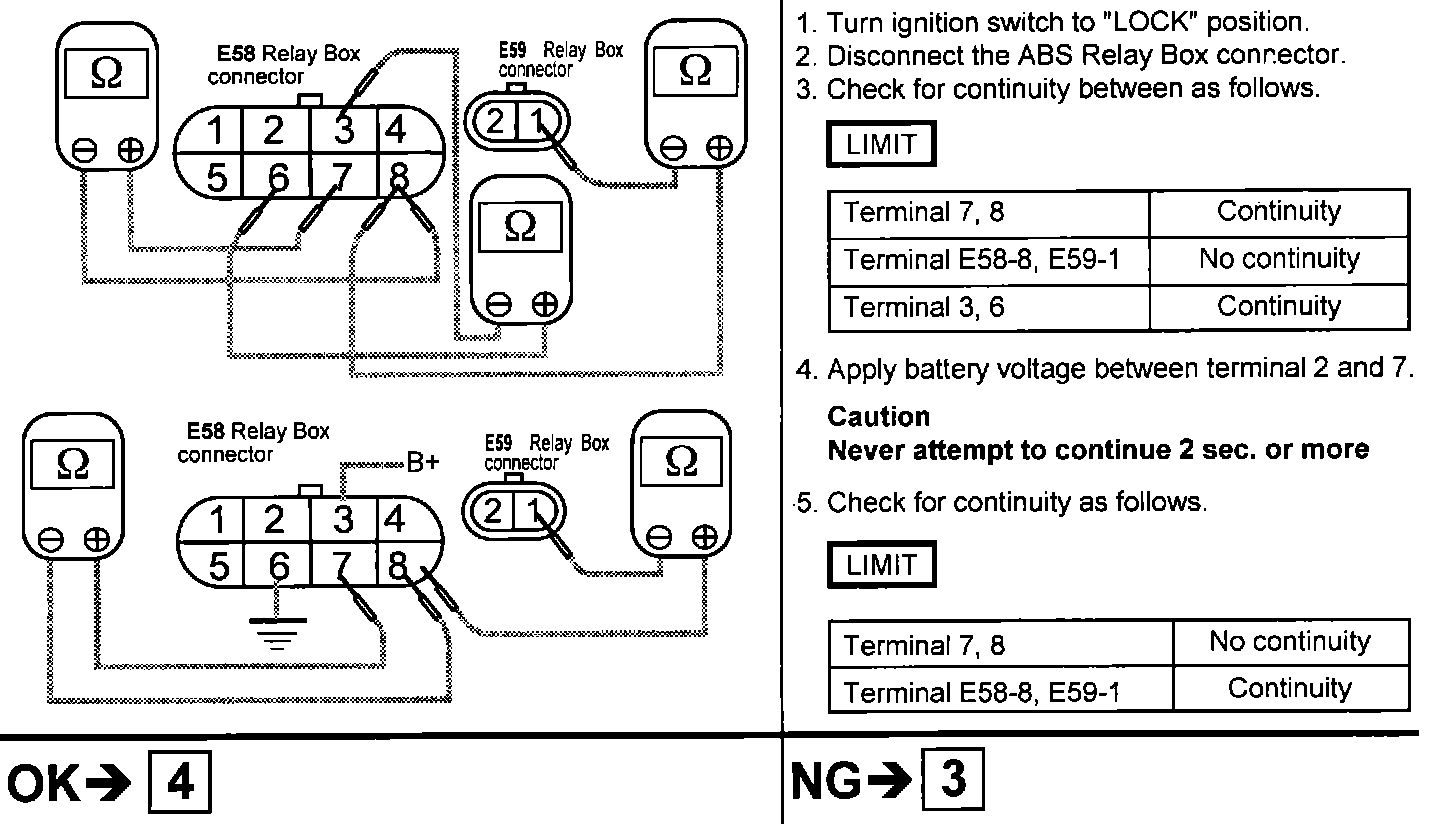

2. Check the ABS Relay Box (Fail safe Relay)

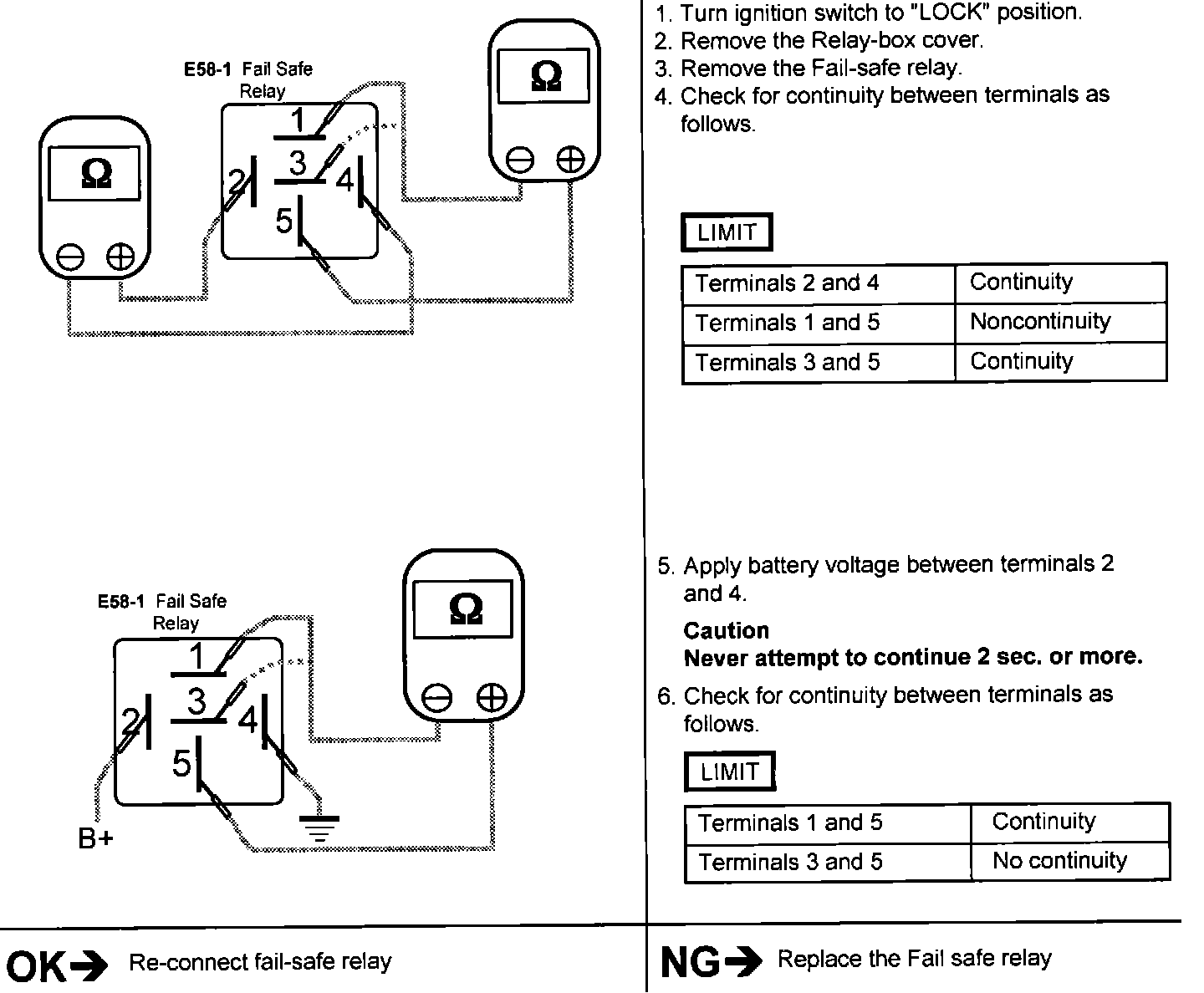

3. Check the Fail safe relay

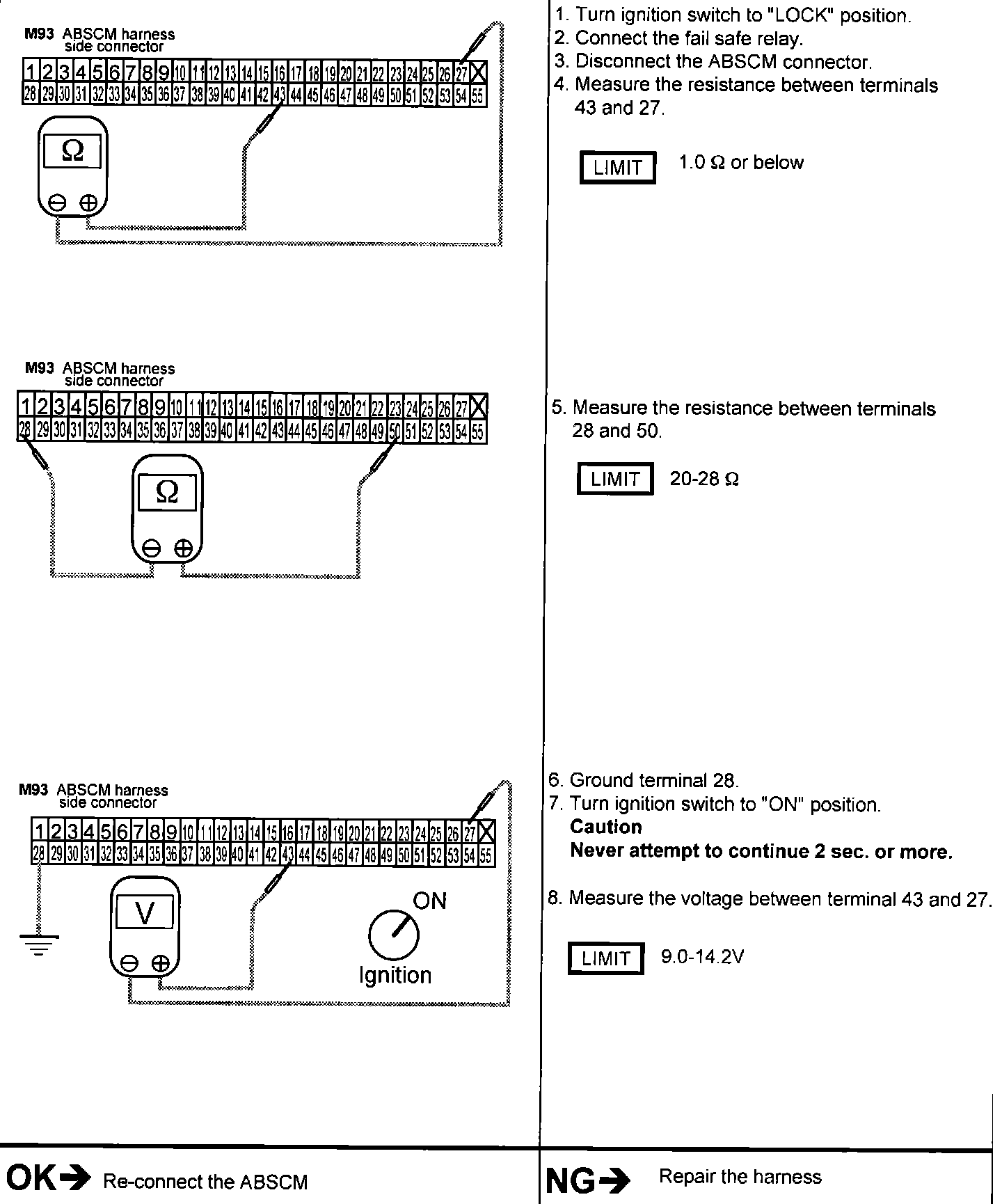

4. Check the ABSCM harness
