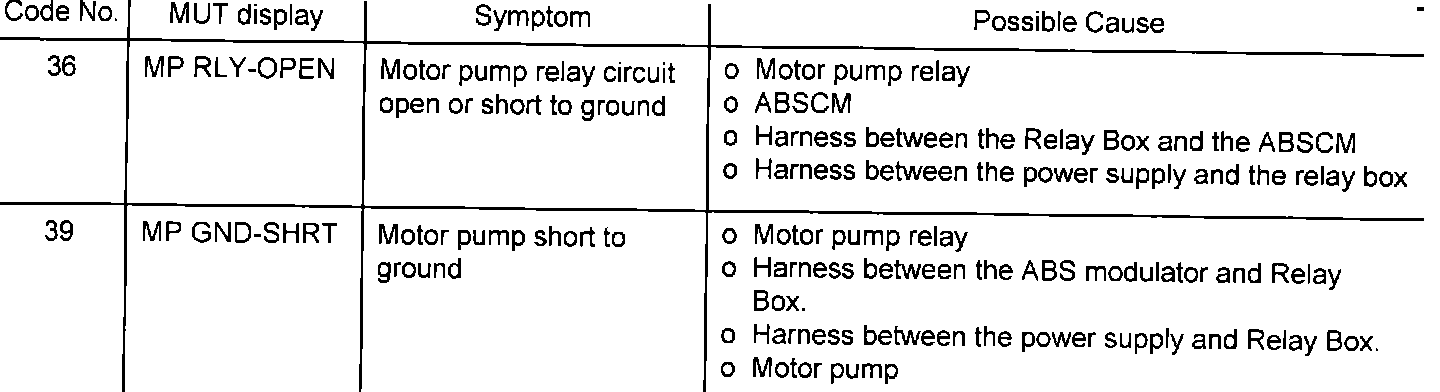

DTC 36

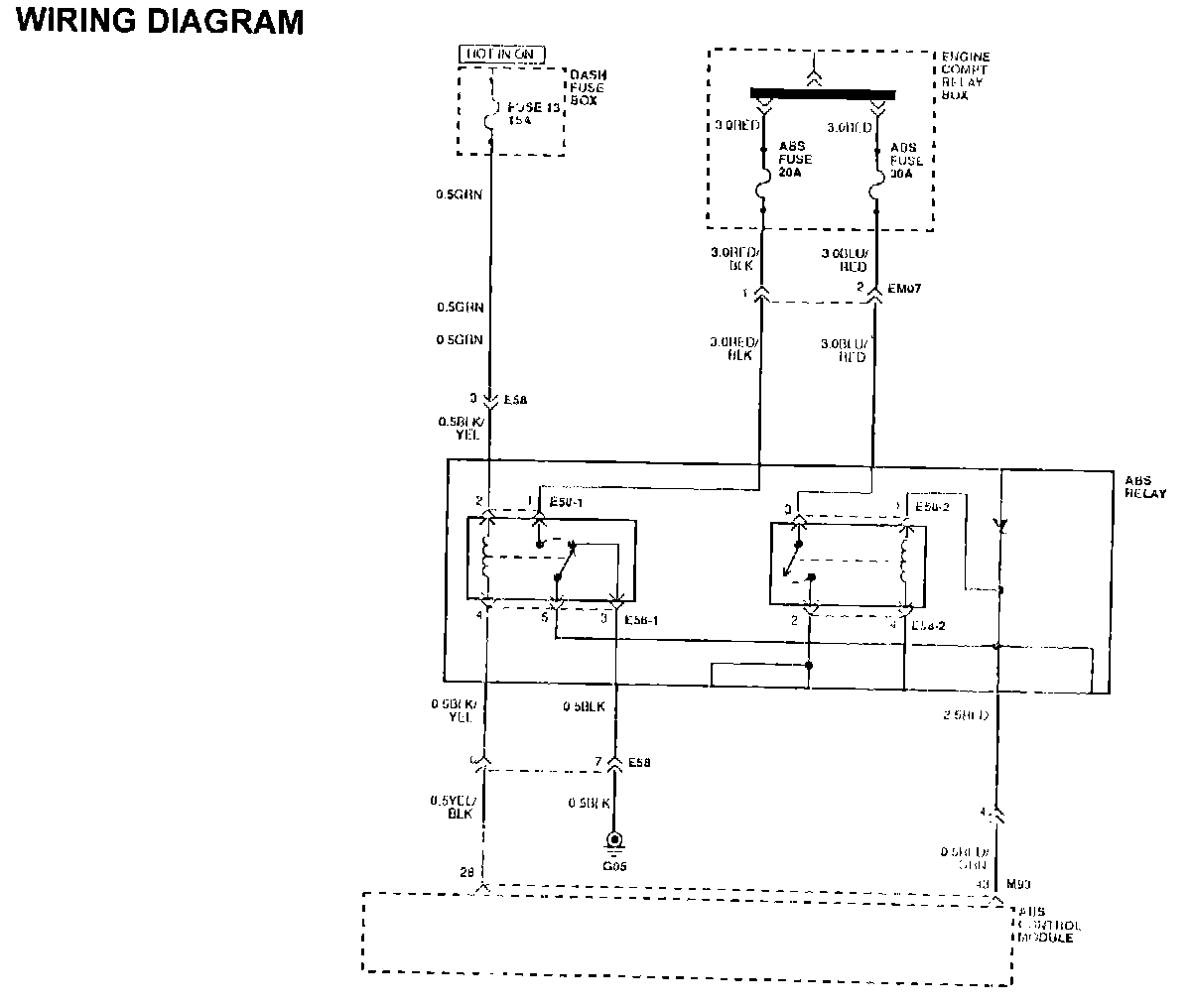

ABS RELAY BOX CIRCUIT
(MOTOR PUMP RELAY, SHORT GND)
Motor pump relay supplies battery voltage to the motor pump. The ABSCM switches the motor relay ON and operates the ABS motor pump. If a problem occurs in the ABS system, the ABSCM disables the motor pump relay.











INSPECTION PROCEDURE

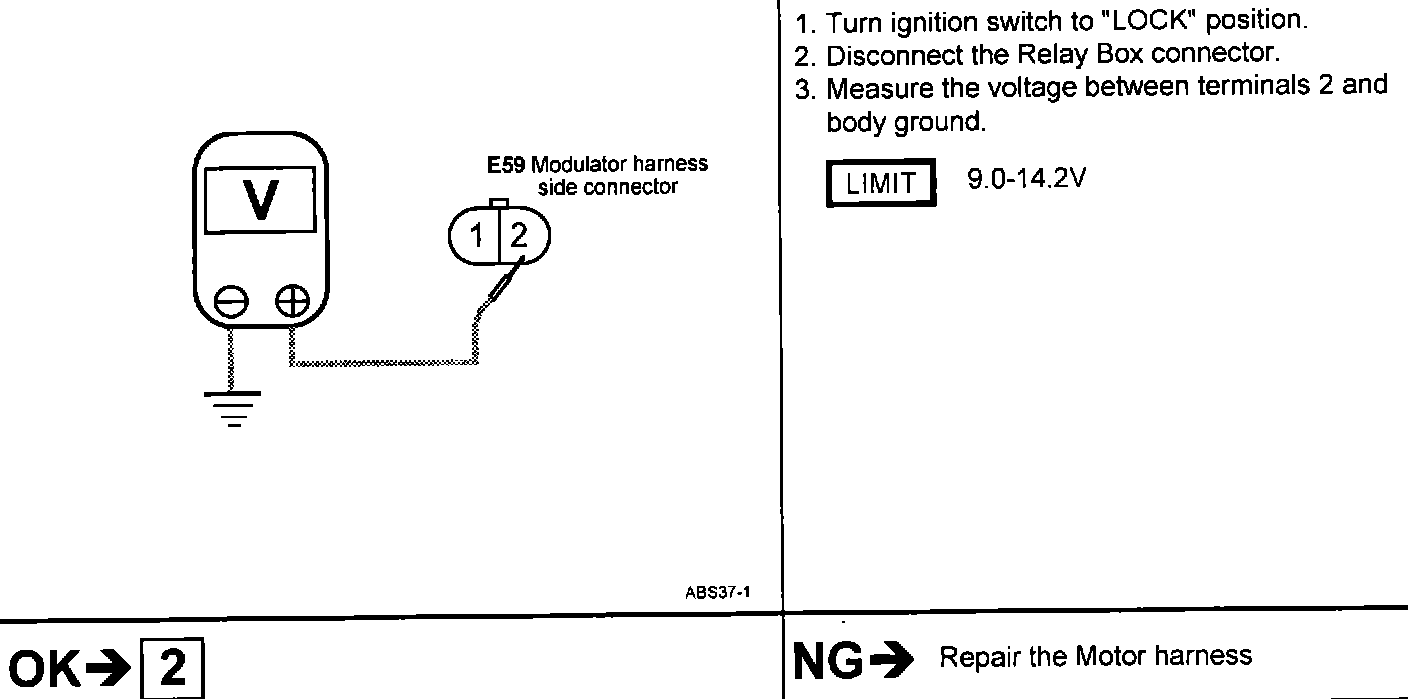

1. Check for voltage between the Relay Box terminal E59 and BODY GND.

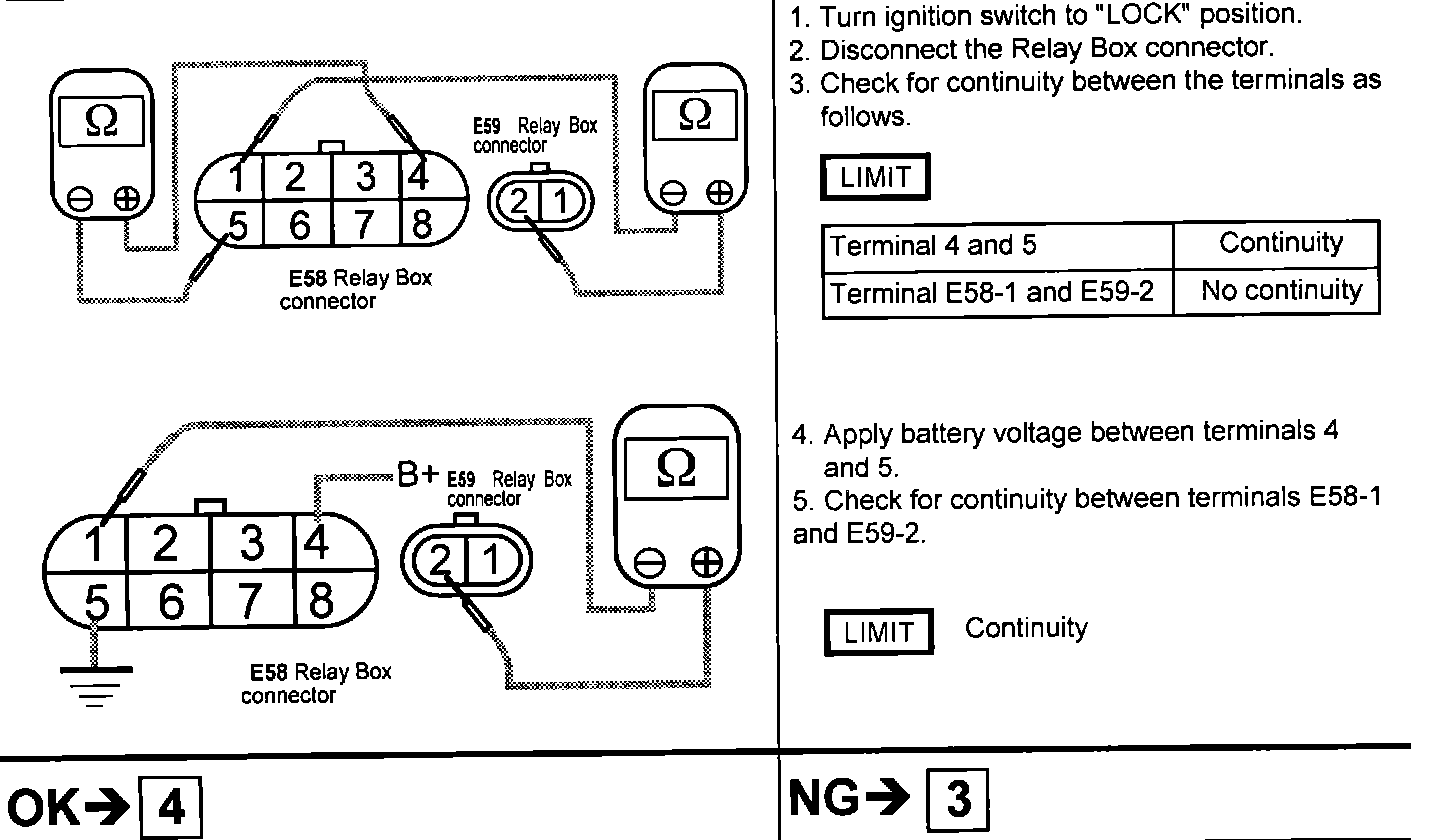

2. Check the ABS Relay Box (Motor pump relay).

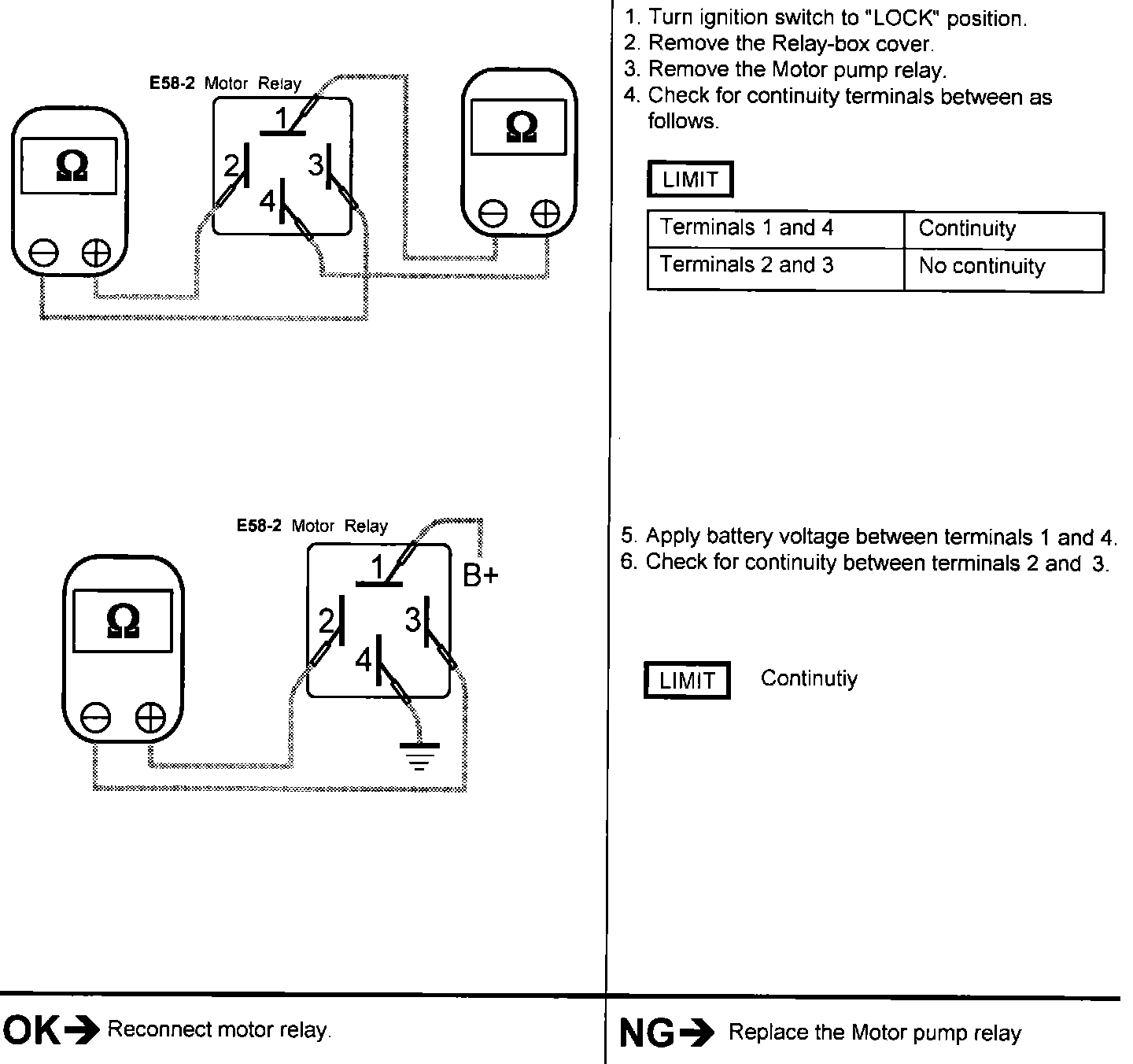

3. Check the Motor pump relay






4. Check for resistance between each terminal of the ABSCM connector
