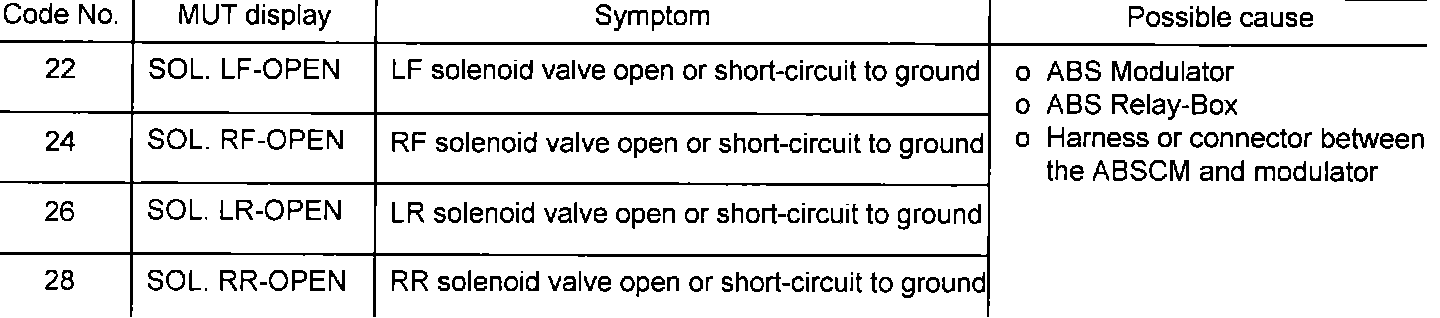

DTC 28

ABS MODULATOR CIRCUIT (SHORT GND)

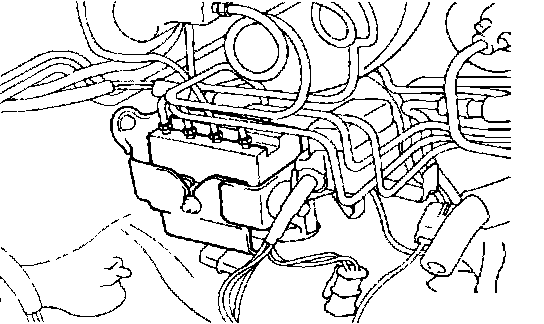

The modulator consists of four solenoid valves, one expander chamber per brake circuit and a hydraulic pump. The ABSCM activates the solenoid valves and controls the pressure to the wheel calipers.











INSPECTION PROCEDURE

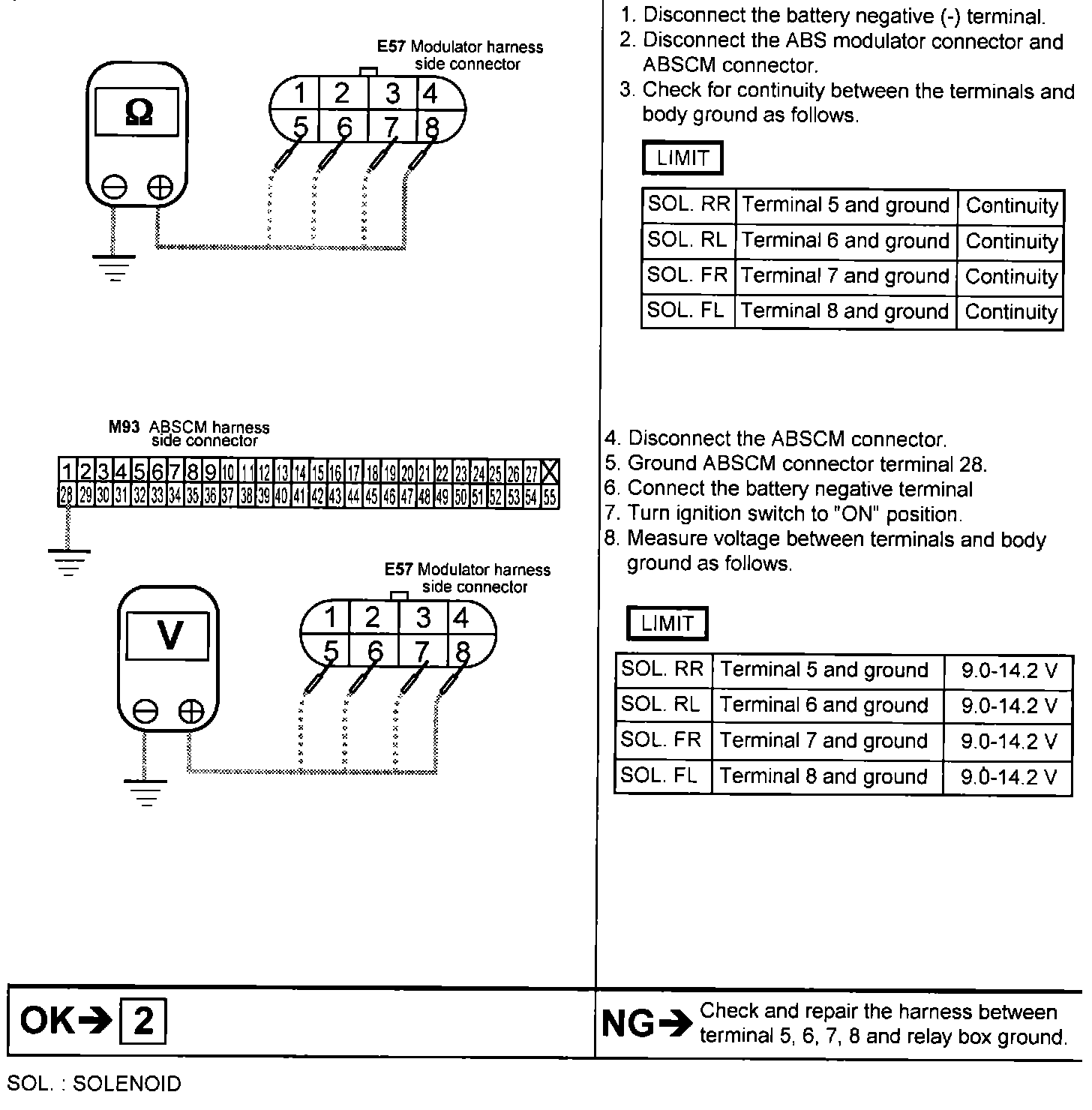

1. Check for continuity between each terminal of the ABS modulator harness.






2. Check ABS-Modulator

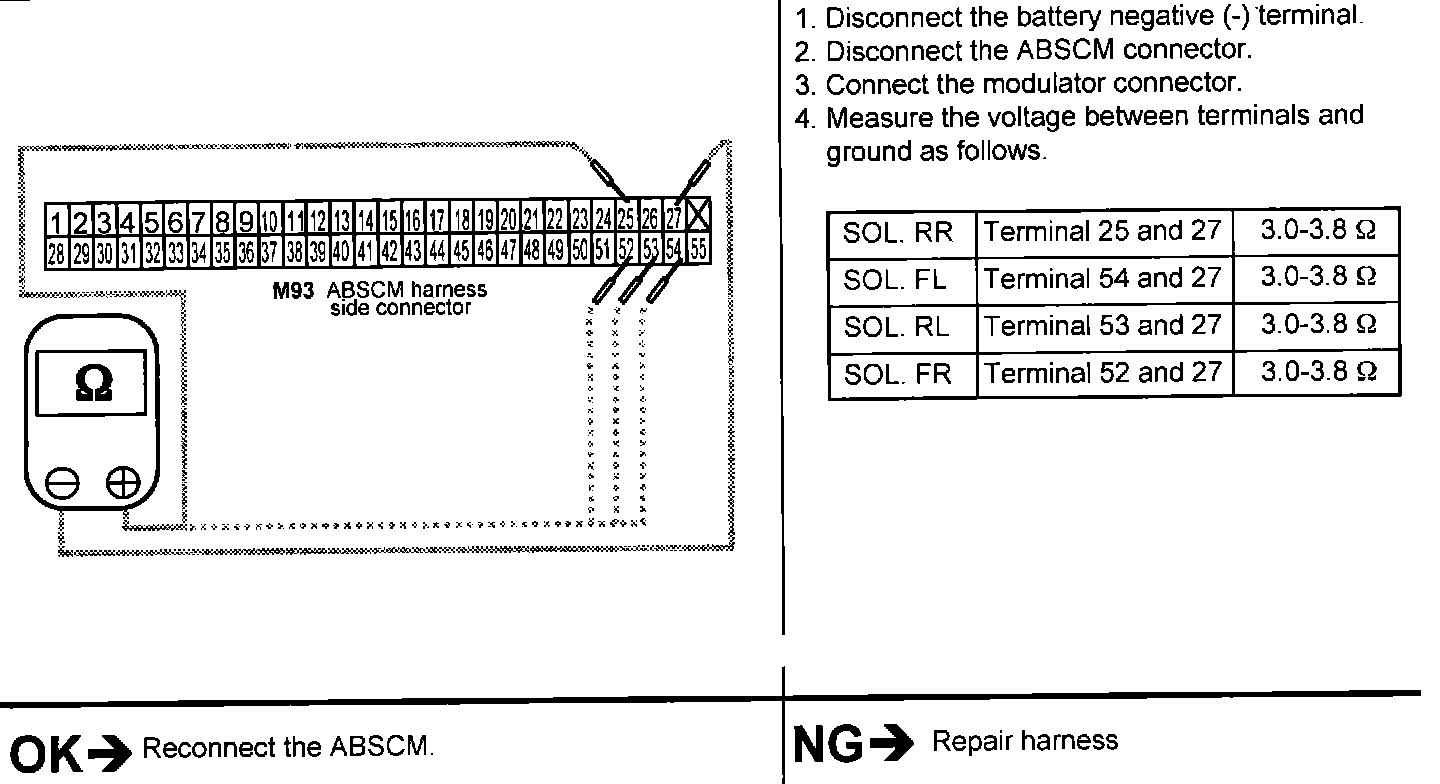

3. Check ABSCM harness
