Home
>>
Hyundai
>>
1994
>>
Elantra L4-1.8L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Joint Distribution
>>
E01
E01

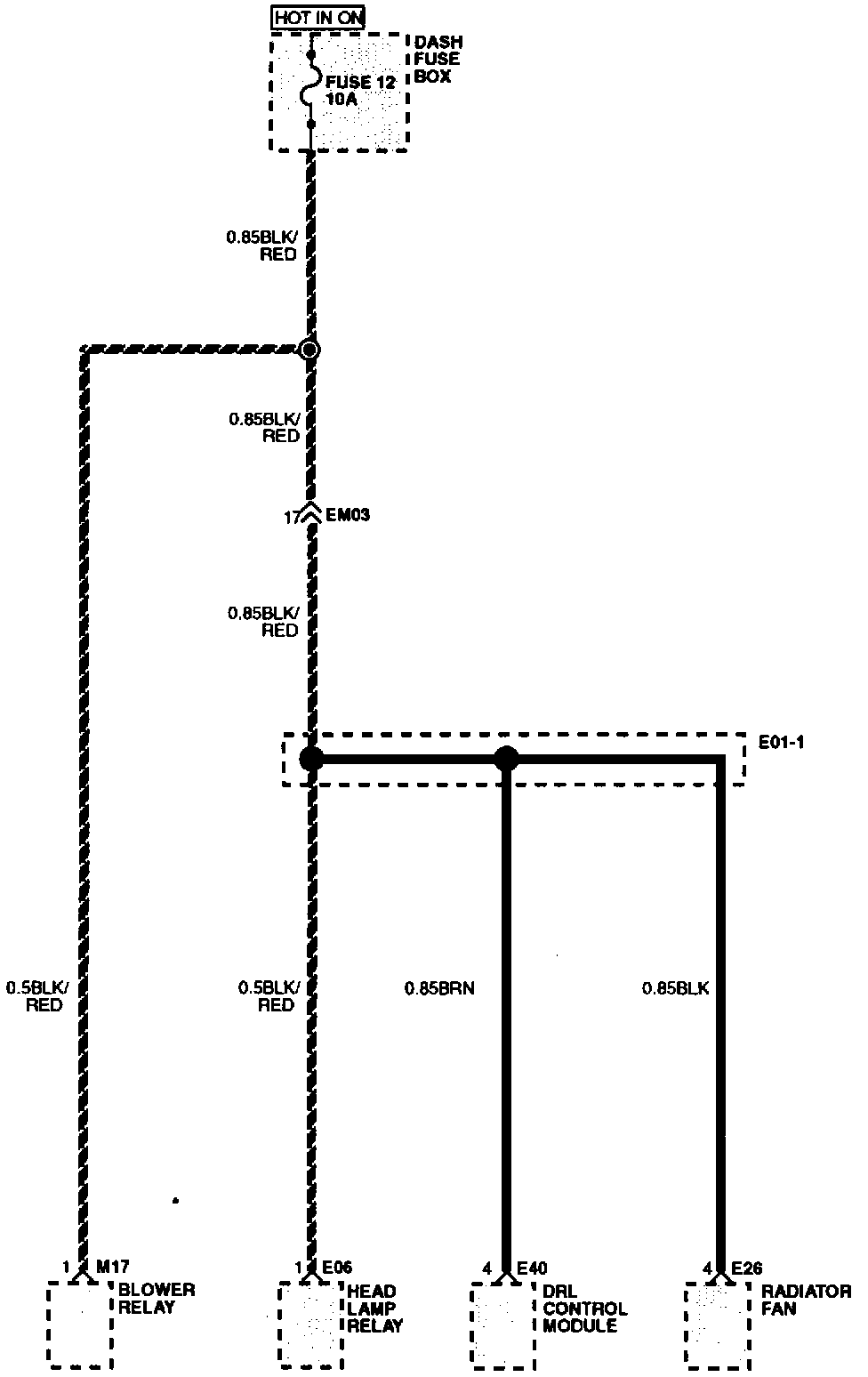

Joint Distribution (E01-1):

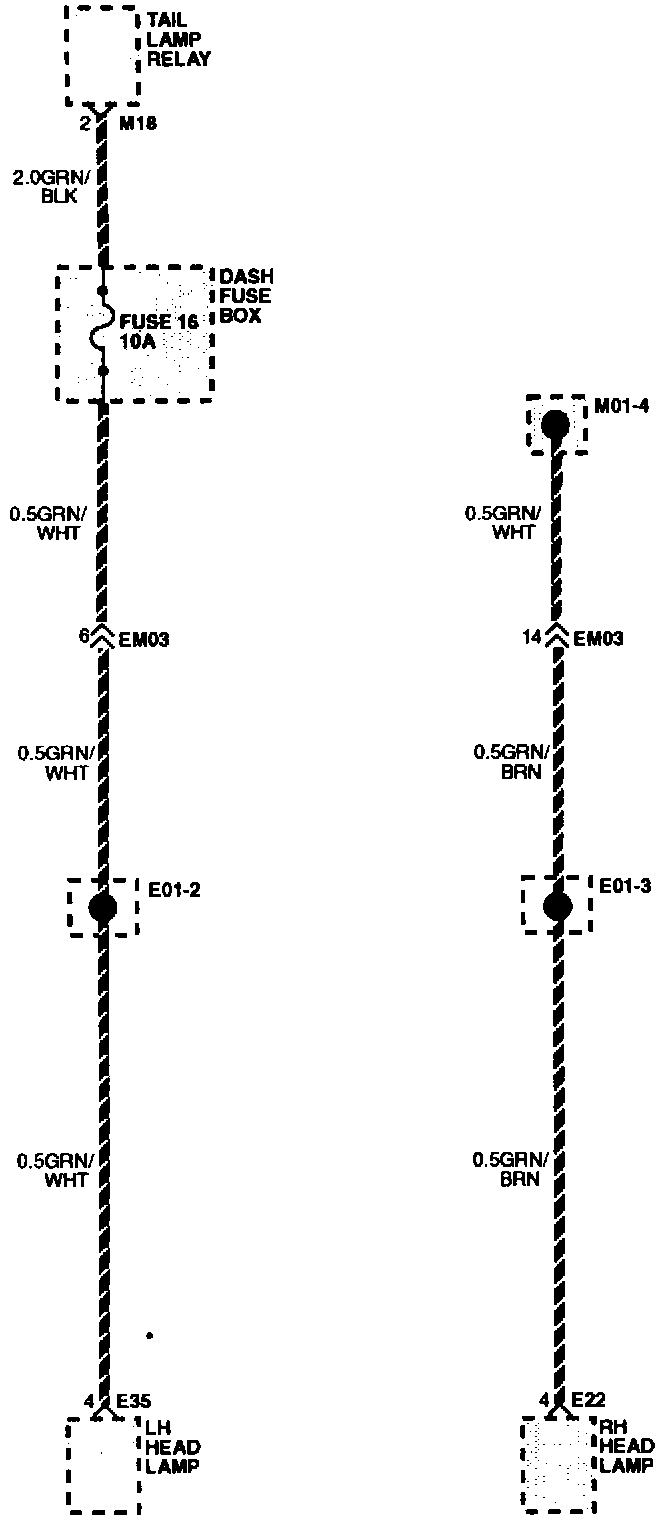

Joint Distribution (E01-2/3):
