Home >> Hyundai >> 1994 >> Elantra L4-1.8L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G06

G06

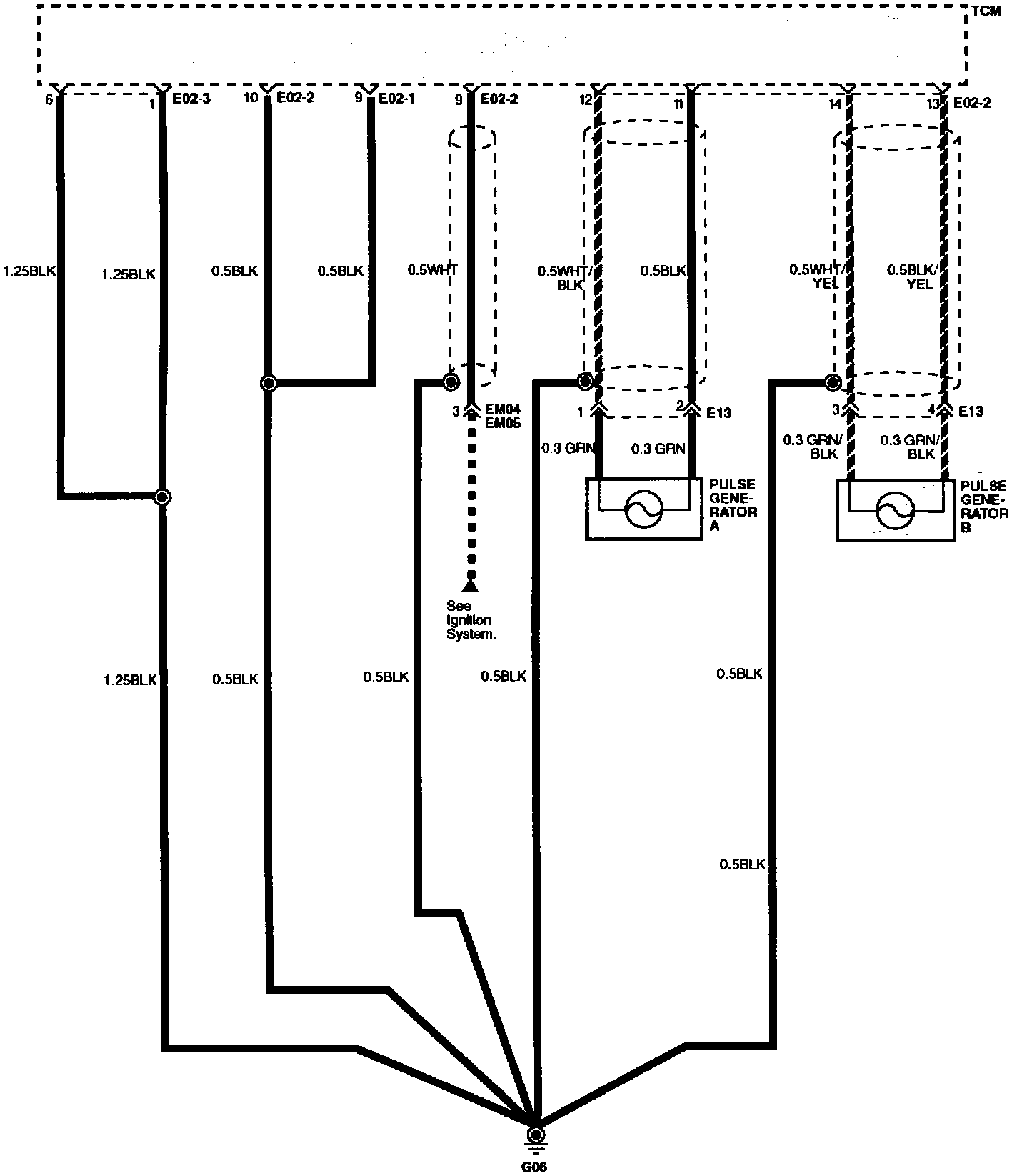

Ground Distribution (G06):
